Product Description

Product Name: 10kVA/150kV Power Frequency PD-Free AC Withstand Test System

Insulation reliability is a key factor in the safe operation of electrical equipment. The 10kVA/150kV Power Frequency PD-Free AC Withstand Test System provides a controlled AC high-voltage environment for checking whether insulation systems can withstand the specified test voltage without breakdown.

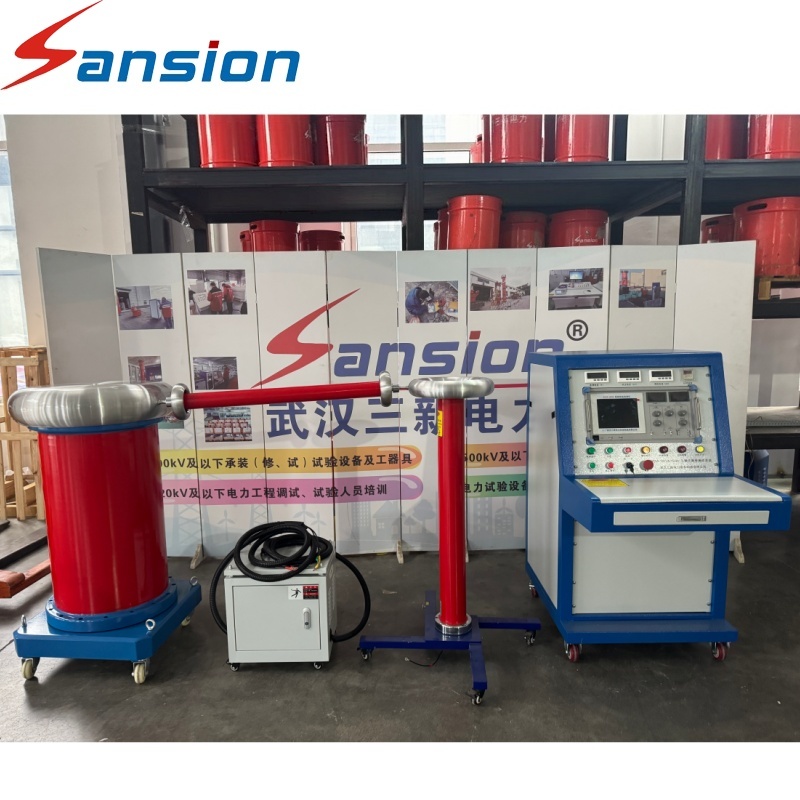

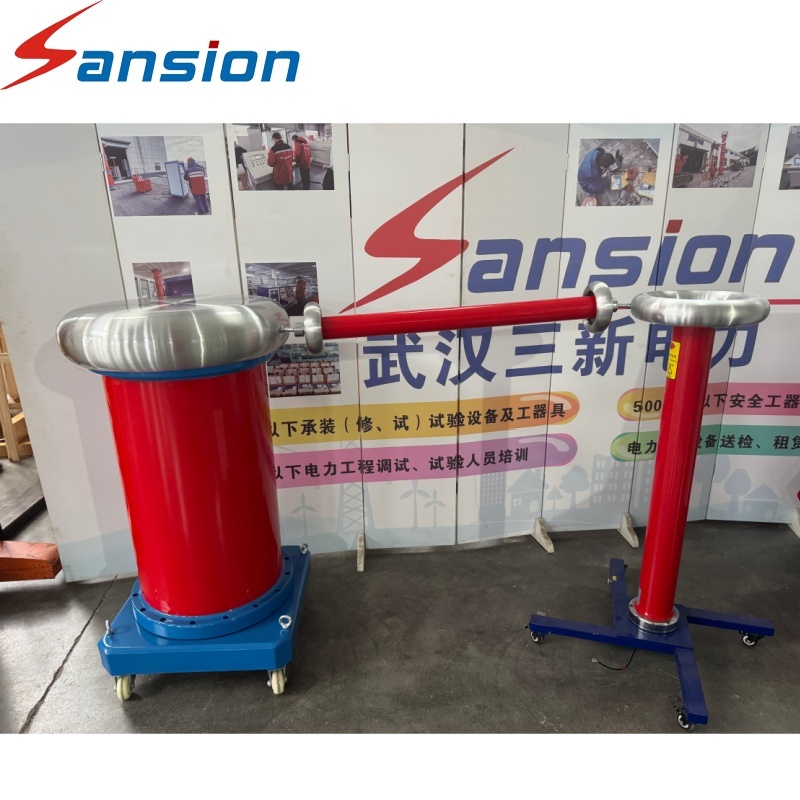

A PD-Free Test Transformer is used as the high-voltage source, supported by a Motorized Operation Console, Power Supply and Voltage Divider. This configuration is particularly useful when the testing source needs to maintain low background discharge. Operators can control the voltage application through the motorized console while monitoring the high-voltage level through the measuring unit.

Product Parameters

Product Advantages

• PD-Free Test Source: Helps minimize discharge generated by the high-voltage testing equipment.
• Controlled AC Stress: Applies power-frequency voltage in a controlled testing process.
• 150kV Test Level: Suitable for applicable high-voltage insulation withstand requirements.
• Integrated Measurement: The voltage divider provides a dedicated method for monitoring the applied test voltage.

Application Scenarios

• Electrical equipment quality verification
• Insulation reliability assessment
• Transformer insulation testing
• High-voltage equipment inspection
• Electrical product production testing

FAQ

Q1: What is the main function of this system?
A: It is designed for power-frequency AC withstand testing and electrical insulation verification.

Q2: What does the PD-free configuration provide?
A: It helps reduce background discharge produced by the test transformer and supports a cleaner testing environment.

Q3: What are the rated capacity and voltage?
A: The system is rated at 10kVA and 150kV AC.

Q4: How is the test voltage controlled?
A: Voltage adjustment is performed through the motorized operation console.
