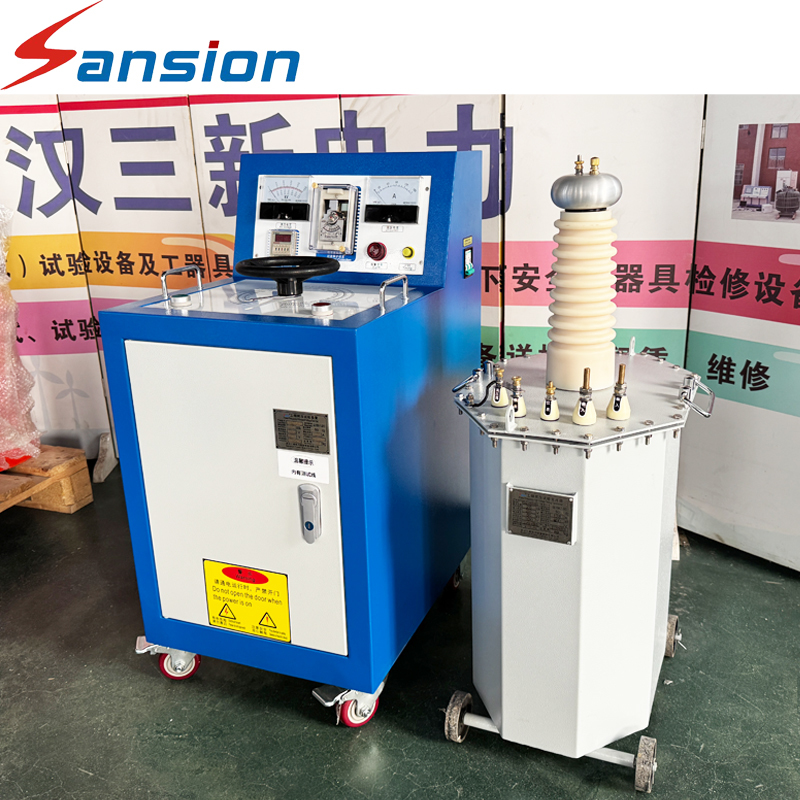

AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
AC Withstand Voltage Test Equipment for Power Transformers High Voltage Power Frequency Insulation Test System for Factory Acceptance and Maintenance Testing
Specifications
Model Number :
YDJ
Rated Voltage :
Single‑set 50‑500kV, Cascade 200‑800kV
MOQ :
1
Insulation Type :
SF6 / Transformer Oil / Epoxy Resin
Brand Name :
Sansion Power
Oil Cylinder Position :
Under
Delivery Time :
30 Working Days
Power Supply Voltage :
220/380V
Payment Terms :
L/C,T/T
Output Power :
2‑500kVA
Packaging Details :
Plywood Case
Maximum Current :
500mA
Certification :
CE/SGS/EMS/ISO 9001
Dimensions :
300mm x 200mm x 150mm
Place of Origin :
China
HV Voltage :
50kV
Description
Product Description

The AC Withstand Voltage Test Equipment for Power Transformers is specially designed for transformer insulation testing.

Transformer insulation systems may need to be evaluated during manufacturing, factory acceptance, commissioning and maintenance. A properly configured AC withstand voltage test system provides the required test voltage for evaluating insulation performance.

Depending on the transformer type and test requirements, different testing solutions may be selected, including conventional power frequency testing, induced voltage testing or resonant testing.

Industry product pages commonly distinguish between these transformer test applications and may use different frequency or resonance configurations depending on the transformer and insulation test requirement.

Testing Functions
  • Power frequency withstand voltage test
  • Transformer insulation test
  • Applied voltage test
  • Induced voltage withstand test
  • Overvoltage test
  • Test voltage measurement
  • Test duration control
  • Insulation evaluation
  • Current monitoring
  • Data recording
Application Areas
  • Power transformer manufacturers
  • Transformer repair workshops
  • Power utility laboratories
  • Electrical equipment factories
  • Commissioning companies
FAQ

Q: Can one system perform different transformer tests?

A: Depending on the design, the system can be configured for specific applied-voltage or induced-voltage test requirements.

Q: Can the system support large transformers?

A: The voltage and capacity can be customized according to the transformer rating and required test standard.
