2DT450GZ Dual Axis Turntable with 30Kg Load Weight for Motion Testing
2DT450GZ Dual Axis Turntable with 30Kg Load Weight for Motion Testing
Specifications
Brand Name :
RUYA
Model Number :
2DT450GZ
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Table Diameter :
Ф450mm
Rotary Accuracy Of Dual-Axis :
±3″
Perpendicularity Of Dual-Axis :
±3″
Positioning Repeatability :
±1.5″
Weight :
380Kg
Maximum Angular Acceleration（inner） :
≥50°/s²
Maximum Angular Acceleration（outer） :
≥50°/s²
Description
2DT450GZ Dual Axis Tabletop Tracking Turntable Motion Test Equipment
Product Overview

The 2DT450GZ dual-axis tracking turntable is a high-precision two-dimensional testing equipment featuring a dual-degree-of-freedom motion system on both azimuth (X) and pitch (Y) axes. This advanced system accurately simulates complex motion trajectories and adopts a tabletop design compatible with various precision components. Widely used in experimental scenarios including position calibration, rate swing testing, and dynamic tracking, this equipment delivers stable and reliable performance for scientific research, aerospace, and other demanding fields. It serves as an ideal platform for high-performance motion simulation and functional verification.

Technical Specifications
Specification Value
Load Weight 30Kg
Table Diameter Ф450mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±3″
Inner frame: ±2″
Positioning Repeatability Of Angular Position ±1.5″
Rate Range Inner frame: 0.001°/s~15°/s
Outer frame: 0.001°/s~15°/s
Angle Rotary Range Outer frame: ±90°
Inner frame: ±170°
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥50°/s²
Outer frame: ≥50°/s²
Weight 380Kg
Product Images

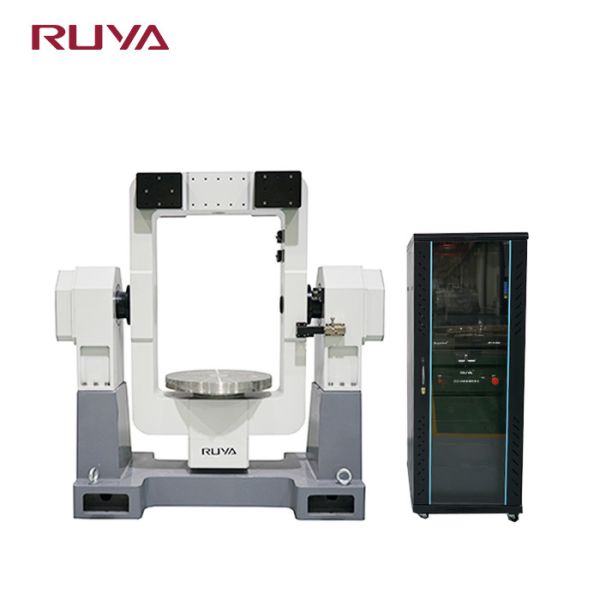

2DT450GZ Dual Axis Turntable with 30Kg Load Weight for Motion Testing 2DT450GZ Dual Axis Turntable with 30Kg Load Weight for Motion Testing
