2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device with 100Kg Load Weight
2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device with 100Kg Load Weight
2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device with 100Kg Load Weight
2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device with 100Kg Load Weight
Specifications
Brand Name :
RUYA
Model Number :
2DT650GZ-B
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
100Kg
Table Diameter :
Ф650mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Rotary Accuracy :
±3″
Perpendicularity :
±3″
Positioning Error（inner） :
±5″
Positioning Error（outer） :
±5″
Description
2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device
Product Overview

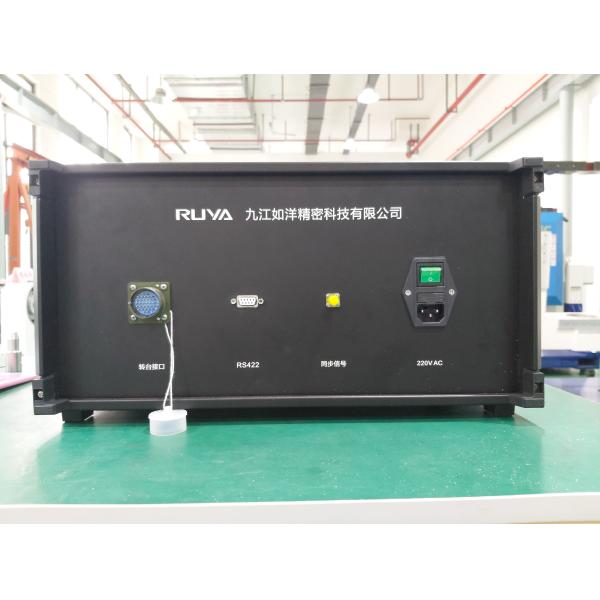

The 2DT650GZ-B optoelectronic device consists of a mechanical platform and a control box connected via cables. The control box features an RS422 communication interface for host computer communication.

The mechanical platform employs an up-and-down vertical structure with the pitch axis component in the upper section and the azimuth axis component in the lower section. The control box integrates circuit modules for angle resolution, motor drive, power conversion, and serial communication.

Technical Specifications
Specification Value
Load Weight 100Kg
Table Diameter Ф650mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±5″
Inner frame: ±5″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.001°/s~100°/s
Outer frame: 0.001°/s~100°/s
Angle Rotary Range Outer frame: Continuous rotation
Inner frame: ±90°
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥30°/s²
Outer frame: ≥30°/s²
