2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication
2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication
Specifications
Brand Name :
RUYA
Model Number :
2-STGZ800
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
150Kg
Resolution Of Angular Position :
0.0001°
Maintain Precision Tracking Speed（ :
10°/s≥azimuth≥1″/s；5°/s≥pitch≥1″/s
Code Disc Resolution :
1″
Maximum Angular Acceleration（pitch） :
≥2°/s²
Maximum Angular Acceleration（azimuth） :
≥6°/s²
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) :
Error within 10 seconds <0.5″, error within 60 minutes <1″;
For Space Targets, Open-Loop Tracking Accuracy (RMS) :
Single axis<5″
Description
2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight
Product Overview

The 2STGZ800 large-load direct-drive tracking turntable is specifically designed for quantum communication ground receiving stations. Working in conjunction with quantum satellite transmitters, this system enables complete satellite-to-ground quantum communication. Featuring advanced software control and guide design, this two-dimensional tracking turntable provides exceptional capability for tracking low-orbit satellites.

Technical Specifications
Specification Details
Load Weight 150Kg
Angle Rotary Range Azimuth: ±280°
Pitch: -5° to +95°
Rotary Accuracy Of Dual-Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Resolution Of Angular Position 0.0001°
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maintain Precision Tracking Speed 10°/s≥azimuth≥1″/s
5°/s≥pitch≥1″/s
Maximum Angular Acceleration Pitch: ≥2°/s²
Azimuth: ≥6°/s²
Code Disc Resolution 1″
Zero Point With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) Error within 10 seconds <0.5″
Error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS) Single axis <5″
Product Images

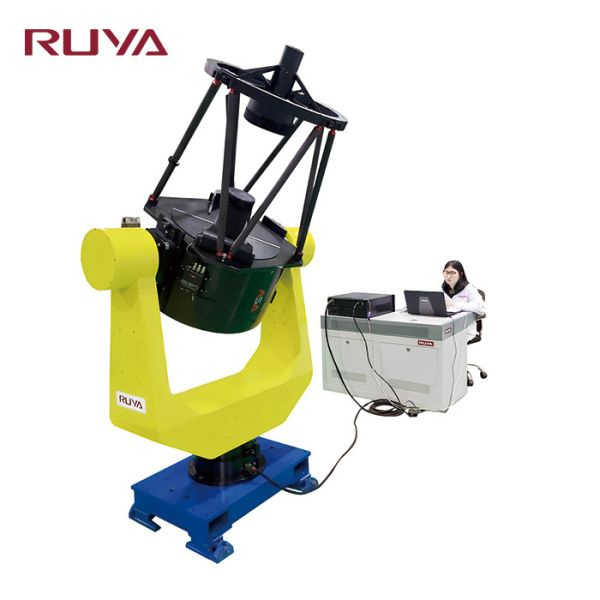

2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication 2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication
