Specifications
Brand Name :
RUYA
Model Number :
2-STGZ/1
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Angle Rotary Range（Outer frame） :
±358°
Angle Rotary Range（Inner frame） :
-5°~+95°
Rotary Accuracy :
±3″
Positioning Error :
±3″
Positioning Repeatability :
±2″
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) :
Error within 10 seconds <0.5″, error within 60 minutes <1″;
For Space Targets, Open-Loop Tracking Accuracy (RMS) :
Single axis<5″
Description
2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load
Product Overview

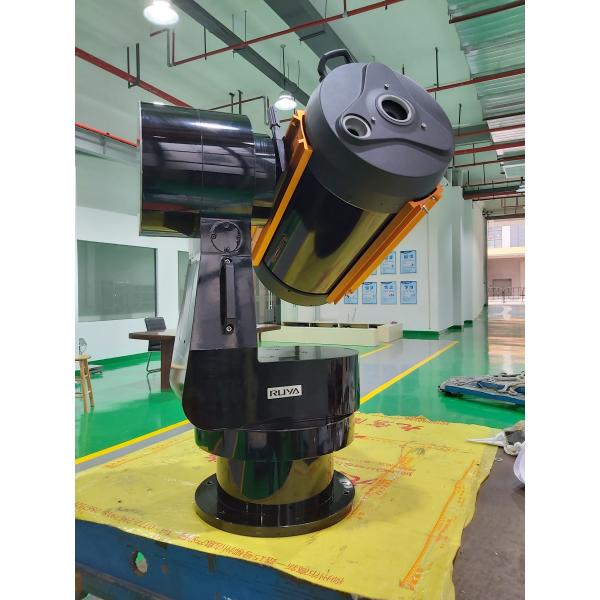

The 2-STGZ/1 direct-drive dual-axis tracking turntable features two degrees of freedom in azimuth and pitch axes. This TL-type two-dimensional tracking equipment simulates satellite pointing and attitude on the ground while eliminating the influence of Earth's rotation. It serves as a quantum communication ground receiving station and, when combined with quantum satellite transmitters, enables complete satellite-to-ground quantum communication.

Key Features
  • L-shaped structure provides exceptional flexibility for load installation
  • High-precision encoders ensure reliable tracking accuracy
  • DC motors and drives minimize transmission links, eliminating transmission errors
  • Main structure constructed from aviation cast aluminum alloy for lightweight stability
Technical Specifications
Specification Details
Load Weight 30Kg
Angle Rotary Range Outer frame: ±358°
Inner frame: -5° to +95°
Rotary Accuracy Of Dual-Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed Azimuth: ≥2°/s, maximum ≥10°/s
Pitch: ≥1°/s, maximum ≥4°/s
Maximum Angular Acceleration Inner frame: ≥1°/s²
Outer frame: ≥1°/s²
Code Disc Resolution 1″
Zero Point With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS) Single axis <5″
