2-STGZ100 Light Load Tracking Turntable with 10Kg Load Weight for Precision Applications
2-STGZ100 Light Load Tracking Turntable with 10Kg Load Weight for Precision Applications
Specifications
Brand Name :
RUYA
Model Number :
2-STGZ100
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
10Kg
Rotary Accuracy :
±3″
Positioning Error :
±3″
Positioning Repeatability :
±2″
Resolution Of Angular Position :
0.0001°
Code Disc Resolution :
1″
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) :
Error within 10 seconds <0.5″, error within 60 minutes <1″;
For Space Targets, Open-Loop Tracking Accuracy (RMS) :
Single axis<5″
Description
2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight
Product Overview

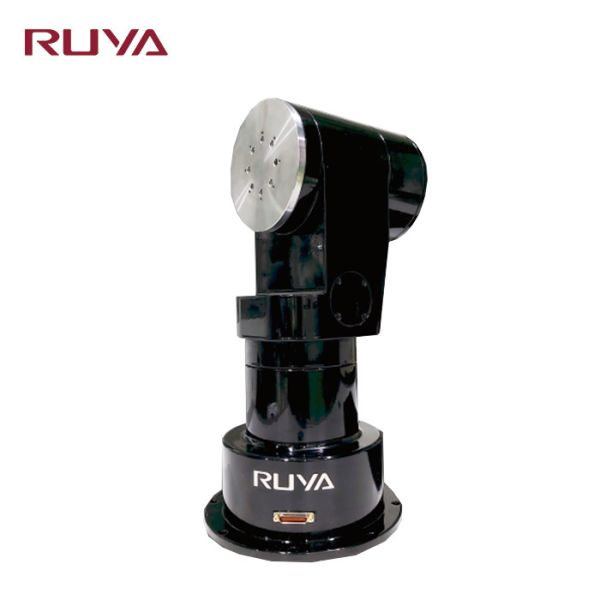

The 2-STGZ100 Light Load Tracking Turntable features a single-arm pitch axis and rotary horizontal axis design. It carries optical lenses up to 100mm in diameter with a maximum load weight of 10kg. The turntable rotation is directly motor-driven, with mechanical interfaces coordinated with motor research units.

This tracking turntable is suitable for drone suspension applications and precision tracking operations.

Technical Specifications
Specification Details
Load Weight 10Kg
Angle Rotary Range Azimuth: ±170°
Pitch: ±80°
Rotary Accuracy Of Dual-Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Resolution Of Angular Position 0.0001°
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed 10°/s≥azimuth≥1″/s
5°/s≥pitch≥1″/s
Maximum Angular Acceleration Pitch: ≥2°/s²
Azimuth: ≥6°/s²
Code Disc Resolution 1″
Zero Point With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS) Single axis <5″
