ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
Specifications
Model Number :
ZL-6018
Humidity Distribution Accuracy :
±3.0%
Temperature Distribution Accuracy :
±2℃
Place of Origin :
China
Packaging Details :
wooden case packaging
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Temperature Rang :
RT +10 ℃ - 60℃
Humidity Fluctuation :
35%～95%R.H（Customer select optional requirements)
Price :
UDS4800
Temperature Fluctuation :
±0.5℃
Supply Ability :
60 Sets
Name :
Ozone Aging Test Chamber
Brand Name :
ZL
Ozone Concentration Accuracy :
0~1000pphm ±15%
MOQ :
1 set
Delivery Time :
7-15 work days
Humidity Fluctuation :
±3.0%
Certification :
CE,ISO
Description
ISO 1431-1 ASTM D1149 Cable Ozone Resistance Test Chamber Non-metallic Materials Aging Tester
Equipment Overview

Ozone is present in very small amounts in the atmosphere, but it's one of the main causes of rubber cracking. This ozone aging chamber simulates and even intensifies natural atmospheric ozone conditions, allowing you to study how ozone affects rubber materials. It helps you quickly evaluate the ozone resistance of rubber products and test how well anti-ozone additives work. With this data, you can take effective measures to extend the service life of your rubber products.

Main Functions

This machine tests how well rubber products resist cracking when exposed to ozone. It lets you precisely control and adjust ozone concentration levels, so you can accurately assess the ozone resistance of your test samples.

Key Features
  • Ozone generation - Uses a quiet, high-efficiency ozone generator to produce ozone gas.
  • Precise mixing - The generated ozone is mixed with treated air in an exchanger before being delivered into the test chamber.
  • Real-time monitoring - An UV sensor continuously detects the ozone concentration inside the chamber and feeds the data back to the control system.
  • Automatic regulation - The control system adjusts ozone output based on your set values, keeping the chamber at the exact concentration you need throughout the test.
  • Full environmental control - Built-in heating and humidification systems ensure all test conditions are met, so you can run tests under various environmental settings.
Technical Specifications
Parameter Specification
Name (Static) ozone aging tester
Volume 150L (L for liter)
Inner Box Size W500 × H600 × D500mm (W for width, H for height, D for depth)
Outer Box Size Approx. W1000 × H1700 × D900mm (W for width, H for height, D for depth)
Weight Approx. 150kg
Power Supply AC220 ± 5% V/50 ± 0.5Hz
Uses Simulates and strengthens atmospheric ozone conditions to study ozone effects on rubber, quickly identify and evaluate rubber anti-ozone-aging performance and anti-ozone-agent protection effectiveness. Reference standards: GB/T7762-2014, GB/T2951.21-2008, GB/T 11206-2009, and other relevant standards.
Principles and Methods Test methods include "static" (sample stretched or product directly placed in test chamber) and "dynamic" (sample placed on fixture with 5%-45% stretching float).

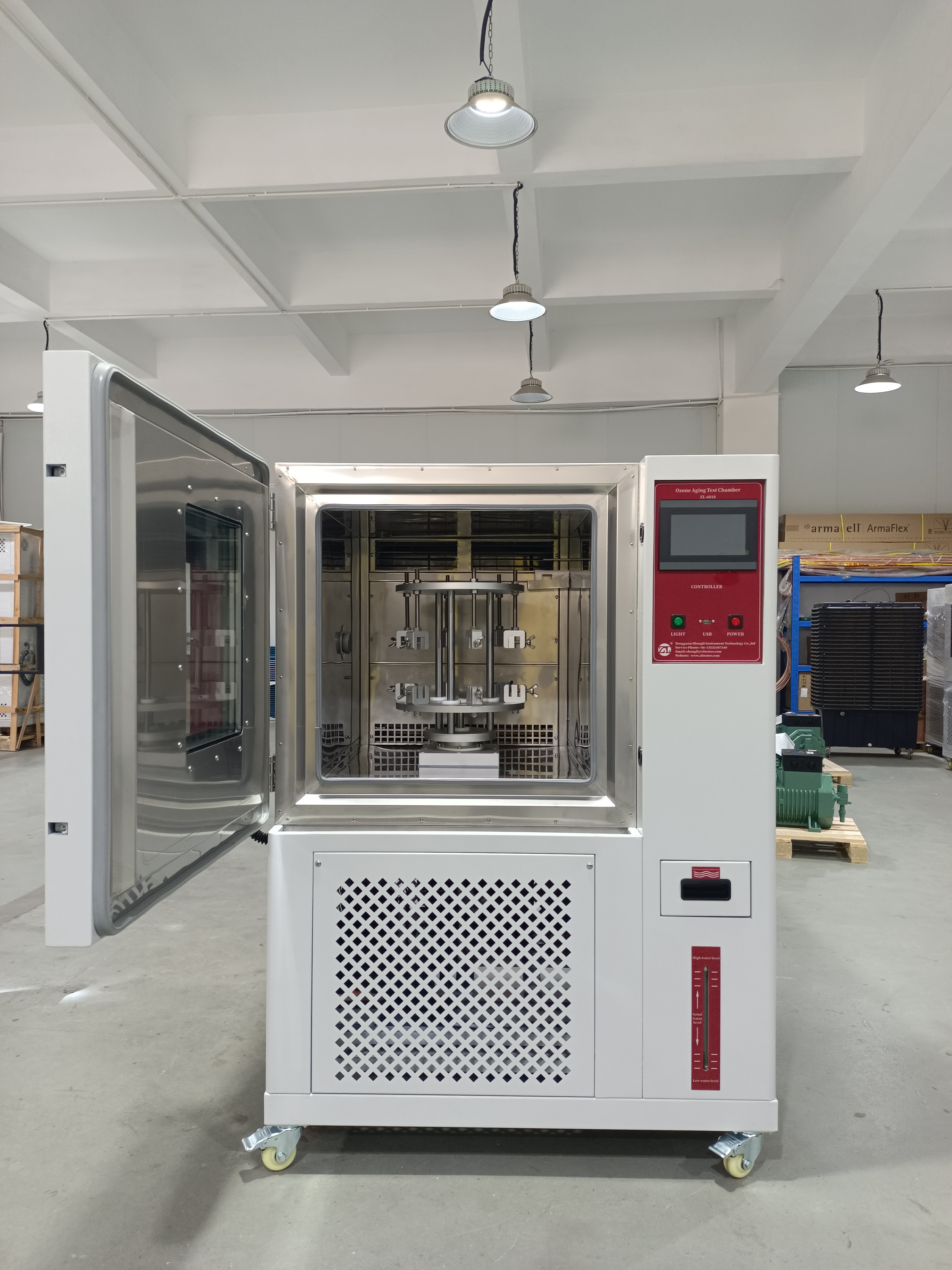

Product Image
