Specifications
Brand Name :
ZL
Model Number :
ZL-6001
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO ASTM Salty Spray Test Chamber Universal Corrosion Resistance Testing Machine is packaged within wooden case.
Product name :
ISO ASTM Salty Spray Test Chamber Universal Corrosion Resistance Testing Machine
Inside box size :
60x45x40cm
Outside box size :
107x60x118cm
Brine temperature :
35℃±1℃ 50℃±1℃
Testing room Capacity :
108L
Brine tank capacity :
15L
Air pressure :
1.00±0.01kgf/cm2
Key words :
Salt Spray
Testing room temperature :
Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature :
Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Description

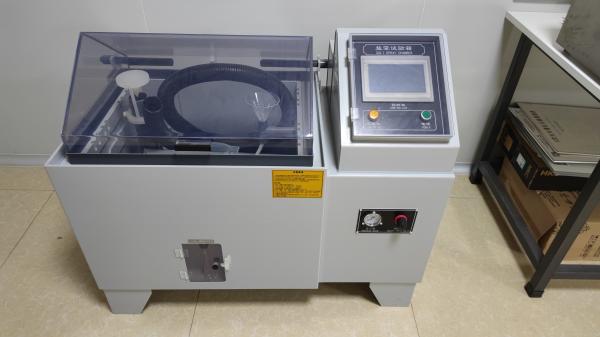

ISO ASTM Salt Spray Test Chamber - Universal Corrosion Resistance Testing Machine
The ISO ASTM Salt Spray Test Chamber is a universal corrosion resistance testing machine designed to evaluate material corrosion resistance and protective coating quality through standardized salt spray testing methods.
Product Introduction
This salt spray test chamber assesses material and protective layer salt spray corrosion resistance, compares similar protective layer process quality, and evaluates product salt spray corrosion resistance. Suitable for testing parts, electronic components, metal material protection layers, and industrial products.
Testing Functions
  • Salt spray, drying, wetting, soaking, constant temperature and humidity testing
  • Surface treatment evaluation for coatings, electroplating, organic/inorganic films, anodic treatment, and anti-rust oils
Product Overview
The salt spray testing machine evaluates corrosive resistance of products with surface treatments including paint, electroplating, inorganic and organic films, anode handling, and anti-rust oil.
Technical Documentation
ZL-6001B Economic Salt Spray Testing Machine (Button)
Environmental Test Chamber Catalog
ISO ASTM Salt Spray Test Chamber , Universal Corrosion Resistance Testing Machine
Compliance Standards
  • GB/T 10125-1997 salt spray test
  • GB/T 2423.17-1993 salt spray test
  • GB/T 2423.18-2000 salt spray test
  • GB.10587-89 salt spray test
  • IEC68-2-11 salt spray test
  • IEC68-2-52 1996 salt spray test
  • ASTM.B117-97 salt spray test
  • JIS H8502 salt spray test
  • CNS.4158 salt spray test
  • CNS.4159 CASS Accelerated acetic acid copper salt spray test
  • GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Technical Parameters
Model ZL-6001B (108L) ZL-6001B (270L) ZL-6001B (600L)
Inside Box Size (cm) 60*45*40 90*60*50 160*100*50
Outside Box Size (cm) 107*60*118 141*88*128 210*130*140
Testing Room Temperature Salt test (NSS ACSS) 35℃±1℃ / Corrosion Test (CASS) 50℃±1℃
Pressure Barrel Temperature Salt test (NSS ACSS) 47℃±1℃ / Corrosion Test (CASS) 63℃±1℃
Brine Temperature 35℃±1℃ / 50℃±1℃
Testing Room Capacity 108L 270L 600L
Brine Tank Capacity 15L 25L 50L
Salt Concentration 5% sodium chloride or 5% sodium chloride with 0.26g per liter copper chloride (CuCl₂·2H₂O)
Air Pressure 1.00±0.01kgf/cm²
Spray Volume 1.0~2.0ml/80cm²/h (16-hour minimum operation average)
Testing Room Relative Humidity 85% above
PH 6.5~7.2 / 3.0~3.2
Spray Form Programmable spray (continuous and intermittent)
Power AC220V 1Φ 10A AC220V 1Φ 15A AC220V 1Φ 20A
