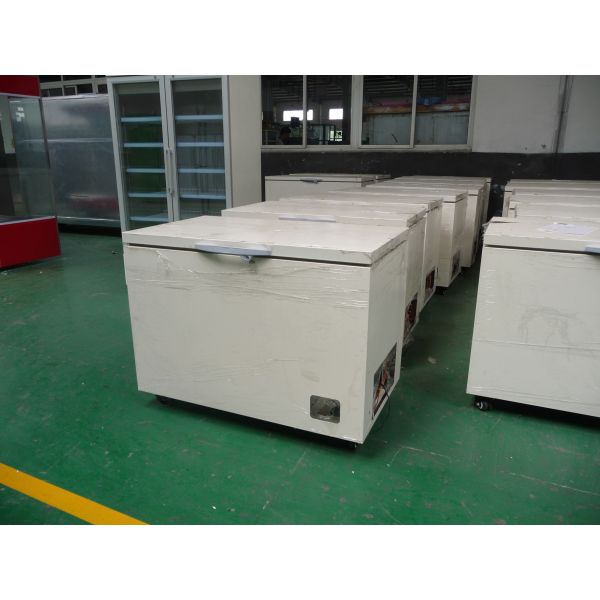

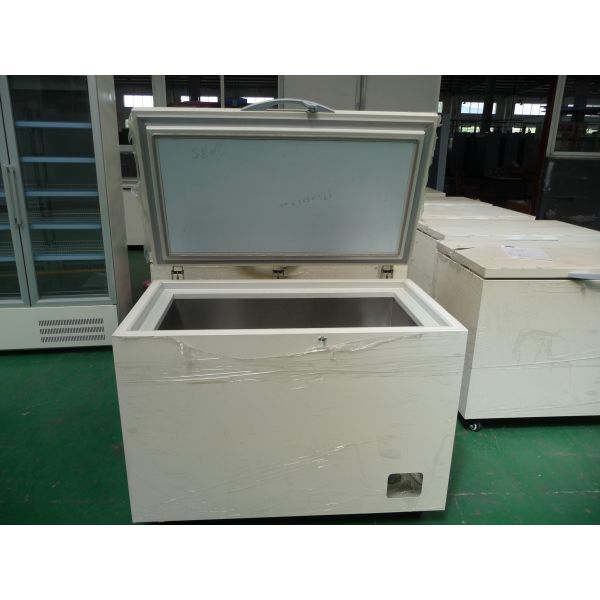

-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
Specifications
Brand Name :
ZL
Model Number :
ZL-6005A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 Sets
Delivery Time :
5-8 work days
Packaging Details :
-80 Degree Ultra Low Temperature Deep Freezer Cryogenic Freezer Environmental Chamber is packaged within wooden case.
Product name :
-80 Degree Ultra Low Temperature Deep Freezer Cryogenic Freezer Environmental Chamber
Inner box size(cm) :
56L~546L CUSTOM
Temperature range :
-15℃~-86℃
Display accuracy :
0.1 ℃
Working environment :
10℃~30℃
Inside material :
Food grade stainless steel
Other function :
High and low temperature alarm
Warranty :
12 Months
Description
-80°C Ultra Low Temperature Deep Freezer, 546L Environmental Chamber
-80 Degree Ultra Low Temperature Deep Freezer Cryogenic Freezer Environmental Chamber
Environmental Test Chamber Catalog (PDF)
Industrial Applications
Cold Treatment Applications
  • Cold work die steel and high-speed steel treatment
  • Bearing steel processing and conditioning
  • Cold work moulds and mould parts treatment
Performance Benefits
  • Significantly improves workpiece hardness and strength
  • Ensures dimensional accuracy of workpieces
  • Enhances wear resistance and impact toughness
  • Improves stress distribution within workpieces
Additional Applications
  • Cold shrinkage of copper bushings and bearings
  • Precision mechanical assembly processes
  • Ultra-low temperature testing for large equipment including automotive, construction machinery, aircraft components, aerospace equipment, and military equipment
Technical Principle
Deep-cooling treatment continues the cooling process of quenched metal materials to temperatures far below room temperature. This process transforms residual austenite into martensite, hardening and enhancing the steel to improve metal material performance. Deep cooling treatment significantly increases wear resistance, toughness, and dimensional stability of metal tools, extending workpiece service life exponentially.
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
Design Features
  • Food grade stainless steel liner - rust-proof and secure
  • Heavy duty casters for easy mobility
  • Safety door lock design prevents unauthorized opening
  • Box pressure balance design with test hole functionality
  • LED temperature display for clear, intuitive observation
  • Suitable for 10°C ~ 30°C ambient environments
  • Optional digital temperature recorder with USB interface for data analysis
  • Wide voltage band design compatible with 187V ~ 242V
Technical Specifications
Model Outer Dimensions (mm) Inner Dimensions (mm) Power Supply Power (W) Temperature (°C) Climate Type Volume (L) Net Weight (Kg)
ZL-86-W56 600*675*920 400*395*360 220/50 300 -15~-86 N 56 70
ZL-86-W116 900*745*920 700*465*360 220/50 450 -15~-86 N 116 86
ZL-86-W120 1270*775*965 540*395*560 220/50 450 -15~-86 N 120 108
ZL-86-W216 1150*745*860 960*465*570 220/50 550 -15~-86 N 216 120
ZL-86-W256 1510*880*1095 780*495*660 220/50 700 -15~-86 N 256 220
ZL-86-W316 1530*745*860 1330*465*570 220/50 700 -15~-86 N 316 250
-80 Degree Ultra Low Temperature Deep Freezer , 546L Environmental Chamber
