Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
Specifications
Brand Name :
Zhongli
Model Number :
ZL-6003
Certification :
ISO,CE
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 days after order confirmed
Packaging Details :
Walk In Environment Test Room Climatic Test Chamber Stability Test Chamber For Pharmaceutical will be Packaged in wooden case
Usage: :
Universal Testing Machine
Testing Chamber: :
1000L / 2000L / 3000L
Temperature range: :
-65℃~+80℃
Humidity range: :
20%~95%R.H.
Accuracy/uniformity: :
±0.1℃;±0.1%R.H./±1.5℃;±5.0%R.H
Accuracy/volatility: :
±1.0℃;±2.0%R.H./±0.5℃;±3.0%R.H.
Cooling time: :
About 4.0℃/minute;about 0.7℃
Inside material: :
stainless steel
Power :
220v 50hz
Warranty :
12 month
Name :
Walk In Environment Test Room Climatic Test Chamber Stability Test Chamber For Pharmaceutical
Description

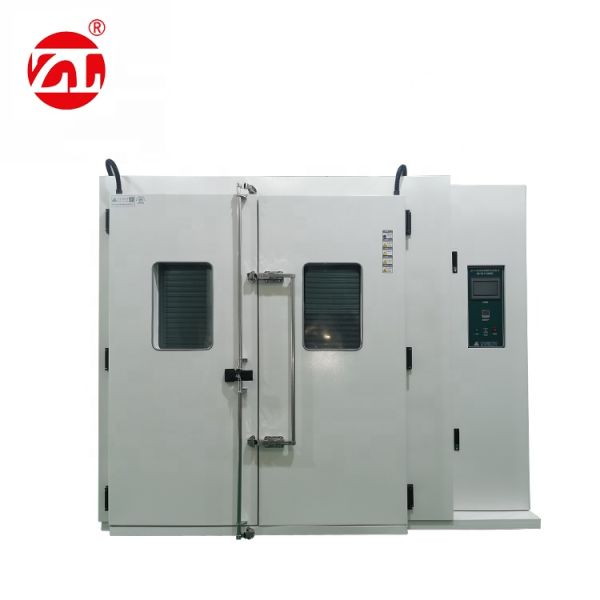

Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
This walk-in environmental test room climatic test chamber is specifically designed for pharmaceutical stability testing, providing precise temperature and humidity control for comprehensive product evaluation.
Equipment Overview
The constant temperature and humidity room, also known as high and low temperature alternating humidity and heat testing machine, is essential test equipment for electrical appliances, aviation, automotive, home appliances, coatings, scientific research and other fields. It tests and determines the parameters and performance of electrical, electronic and other products and materials under various temperature environment changes including dry, cold, and wet conditions.
Environmental Test Chamber Catalog (PDF)
Key Features
  • Imported high-precision microcomputer color touch screen temperature and humidity controller with Chinese/English language switching
  • 50mm testing port on left side for connecting power lines or signal lines
  • Original European and American imports of fully enclosed low-noise high and low temperature compressor
  • Double-layer high-temperature resistant sealing strips between door and chamber ensure optimal airtightness
  • Imported SUS#304 stainless steel plate used for inner and outer chambers
  • Multi-layer hollow tempered glass observation window with conductive film for clear test process visibility
  • Comprehensive safety protection system displaying fault status and cutting power during any malfunction
Compliance Standards
  • GJB150.3-1986 High temperature test
  • GJB150.4-1986 Low-temperature test
  • IEC68-2-1 Test A: Cold (GB/T2423.1-2001 Test A: Low-temperature test method)
  • IEC68-2-2 Test B: Dry heat (GB/T2423.2-2001 Test B: High temperature test method)
  • IEC60068-2-78 Test Cab: Constant Humid Heat Test
  • IEC68-2-30 Test Db and guidelines: Alternating damp heat test (GB/T2423.4-1993 Test Cb: Alternating damp heat)
Technical Specifications
Parameter ZL-6003 Specifications
Size Custom designed according to customer specified dimensions
Temperature Range -65℃ to +100℃ (Options: A:0℃ B:-20℃ C:-40℃ D:-65℃)
Humidity Range 20% to 95% R.H.
Accuracy/Uniformity ±0.1℃; ±0.1% R.H. / ±1.5℃; ±5.0% R.H.
Accuracy/Volatility ±1.0℃; ±2.0% R.H. / ±0.5℃; ±3.0% R.H.
Cooling Time Approximately 4.0℃/minute; 0.7℃~1.0℃/minute
Interior Material Stainless Steel
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Cooling System Water-cooled / Two-stage compressor
Safety Protection No fuse switch, compressor overload switch, high/low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Standard Accessories Recorder (optional), view window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball
Controller Korea "TEMI" or Japan "OYO" brand options
Compressor France's "Tecumseh" Brand
Power Supply 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Product Images
Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical Walk In Environment Test Room Climatic Test Chamber For Pharmaceutical
