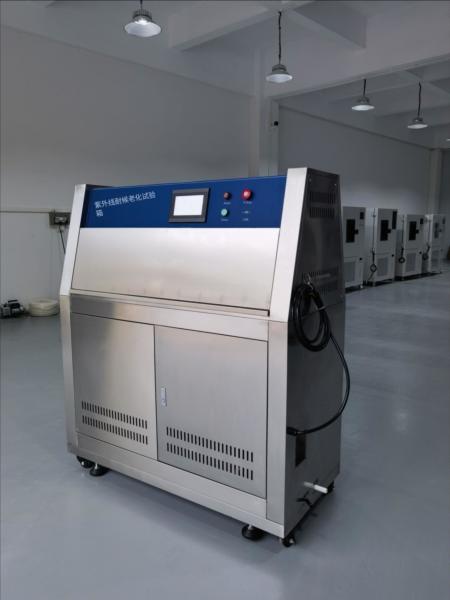

ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
Specifications
Brand Name :
ZL
Model Number :
ZL-6008
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ASTM G53 Ageing Chamber UV Light Lamp Aging Accelerated Weathering Tester is packaged within wooden case.
Product name :
ASTM G53 Ageing Chamber UV Light Lamp Aging Accelerated Weathering Tester
UV temperature :
RT+10℃～70℃
Radiometer :
Adjust the intensity of UV radiation ,Option
Volume :
137 x 53 x 136cm (W x D x H)
Weight :
136kg
Testing capacity :
50 piece（75 x 150mm)
Bulb number :
UV Lamp 8，spare lamp : 4
Key words :
UV Aging
Temperature Uniformity :
±3℃ Temperature fluctuation: ±0.5℃
Standard Test Piece :
75×150mm / 24 pieces
Description
ASTM G53 Ageing Chamber, UV Light Lamp Aging Accelerated Weathering Tester
The ASTM G53 Ageing Chamber UV Light Lamp Aging Accelerated Weathering Tester simulates the damaging effects of sunlight, rain, and dew on materials, accelerating outdoor weathering effects in a controlled laboratory environment.
Industry Applications
Paint Resins Plastics Printing & Packaging Aluminum Adhesives Automotive Cosmetics Metals Electronics Electroplating Medicine
Compliance Standards
ASTM G53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE, ASTM D4355, ISO-4892, ASTM-G53, D4587, 4799, BS-27282, SAE-J2020, ASTM G 154, ISO 4892-1, ISO 11507, ASTMD 4329, GB/T 14522-93
Equipment Overview
This testing chamber reproduces outdoor weathering hazards that typically occur over months or years within days or weeks. Using fluorescent UV lamps to simulate sunlight and condensed moisture to simulate rain and dew, materials are exposed to alternating cycles of light and moisture at controlled temperatures.
Primary Applications
  • Simulates damaging effects of sunlight, humidity, and temperature on materials
  • Tests material aging including fading, gloss loss, strength reduction, cracking, peeling, chalking, and oxidation
  • Reproduces outdoor damage that occurs over months or years in just days or weeks
  • Fluorescent UV lamps simulate sunlight effects while condensation and water spray systems simulate rain and dew
  • Controllable temperature throughout test cycles
  • Typical applications include paint coatings, automotive components, plastic products, wood products, adhesives, and anodic oxide films
Technical Specifications
Model ZL-6008 QUV UV Aging Testing Machine
Temperature Range RT+10℃～70℃
Temperature Uniformity ±3℃ Temperature fluctuation: ±0.5℃
Humidity Range ≥75%RH
Center Distance In Lamp Tube 65~70mm
Test Product Distance From Lamp Center 55mm
Ultraviolet Tube UVA-340 wavelength range 290-400nm (peak 340nm)
UVB-313 wavelength range 280-320nm (peak 313nm)
Standard Test Piece 75*150mm / 24 pieces
Irradiation Intensity 0.30-1.1W/㎡/adjustable 340nm band (touch screen adjustable)
Irradiation Control Intelligent irradiance control with real-time feedback, PID setting with automatic compensation
Key Features
Simulated Sunlight
Material durability damage is primarily caused by solar ultraviolet radiation. UV lamps simulate the short-wave ultraviolet portion of sunlight with minimal visible or infrared spectral energy output.
UV Lamp Types
  • UVA-340 lamps: Excellently simulate short-wave UV light in sunlight from 365nm to 295nm cutoff wavelength
  • UVB-313 lamps: Emit stronger short-wave UV radiation than typical Earth surface solar radiation for accelerated material aging, primarily used for quality control and R&D
  • UVA-351 lamps: Simulate UV sunlight through windows, most effective for indoor material aging testing
Moisture Condensation Environment
Simulates outdoor wet erosion through unique condensation functionality. During test cycles, heated water vapor maintains 100% relative humidity at elevated temperatures, creating condensation on sample surfaces that mimics natural dew formation.
Precise Temperature Control
Temperature is precisely controlled throughout each cycle, with higher temperatures accelerating aging processes while ensuring test reproducibility.
Water Spray System
Simulates temperature fluctuations and rainfall effects, creating thermal shock conditions that test material durability under rapid cooling scenarios.
Irradiation Intensity Control
Optional light intensity control provides precise, reproducible results. The feedback loop system allows setting different intensity requirements while extending fluorescent lamp life.
ASTM G53 Ageing Chamber , UV Light Lamp Aging Accelerated Weathering Tester
