16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Glazed Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Cutting Mode :
Cut after forming, double linear guide rail type shearing
Transport Package :
Plastic Film & Steel Wire Fixed
Transmission Mode :
Gear Drive
Description

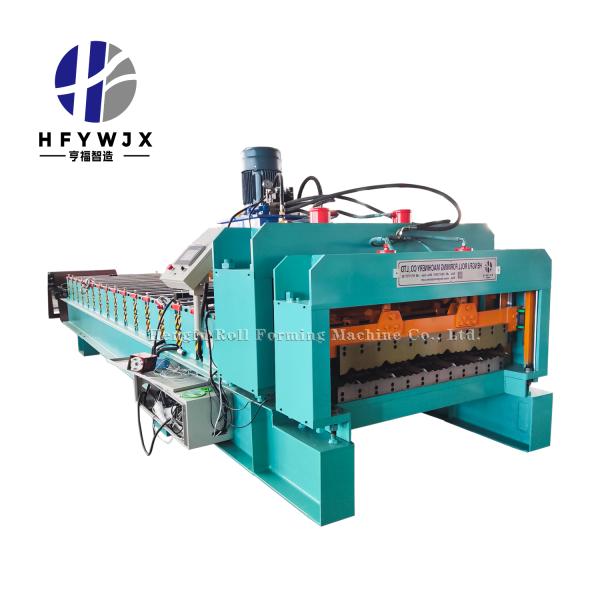

Energy Saving Automatic 1020 Glazed Tile Roll Forming Machine
Product Overview

The 1020 Glazed Tile Roll Forming Machine is a high-performance, customizable roof forming machine specially designed for producing high-quality glazed roof tiles. With stable performance and high precision, it is widely used to make decorative roof panels for houses, factories, shopping malls and other construction projects.

This machine is built with a heavy-duty national standard 400H steel frame and 16mm thick wall plates, which provide strong rigidity and long-term stability even under continuous high-load working conditions. It uses 16 rows of forming rolls made of 45Cr quenched and tempered steel, processed by precision turning and hard chrome plating. The 80mm solid spindle, 11kW servo motor and gear drive system ensure smooth and reliable transmission, supporting material thickness from 0.3mm to 0.5mm.

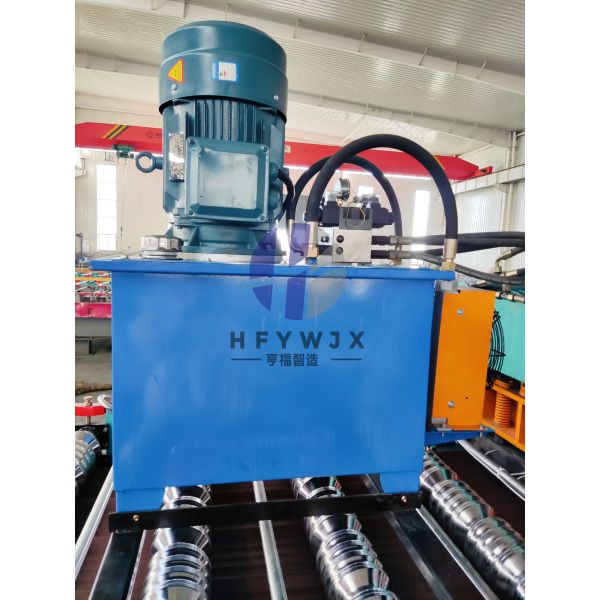

It is equipped with an advanced PLC control system with frequency conversion, independent touch screen, remote control and alarm function. The cutting length error is controlled within 1mm. The double linear guide rail cutting system achieves burr-free cutting after forming, with simple operation and extremely low maintenance rate. The 11kW air-cooled hydraulic station and double hand-cranking feeding frame with manual cutter make feeding more convenient and efficient.

With strong adaptability and stable output, the 1020 glazed tile machine can process color steel sheets and galvanized steel sheets efficiently. It produces beautiful, firm and weather-resistant roof tiles that meet modern building standards. It is the ideal equipment for manufacturers engaged in roof tile production and construction engineering.

Technical Specifications
Model NO 1020
Condition New
Usage Roof
Feeding Width Feeding Width
Raw Material Color steel plate, galvanized steel plate
Machine Frame 400H steel frame (national standard)
Number of Rolling Mill Sets 16 row molding
Spindle Diameter Φ80mm (Solid shaft)
Type of Driven Gear drive
Forming Speed 4-6M/min

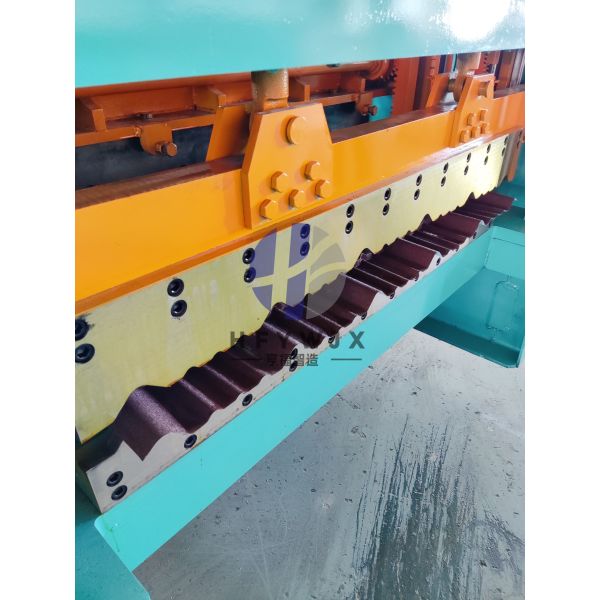

Cutting Mode Cut after forming, double linear guide rail type shearing (no burr in shearing, extremely low maintenance rate)
Electric Control System Industrial Computer PLC
Feeding Method Double hand rocking feeding rack (with manual cutter)
Color Customized
Product Gallery
16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic 16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic 16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic 16 Row Molding 1020 Glazed Metal Tile Roll Forming Machine Energy Saving Automatic
Frequently Asked Questions
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
