Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Glazed Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Transmission Method :
Electric
Transmission Mode :

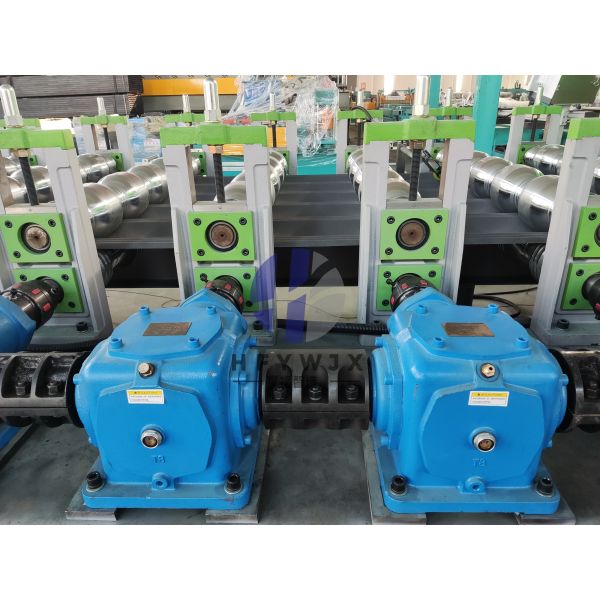

Gearbox Transmission
Cutting Method :
After Forming, The Material Is Cut Using a Dual Li
Transport Package :
Plastic Film & Steel Wire Fixed
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description
Automatic High Speed 1110 Glazed Tile Production Line

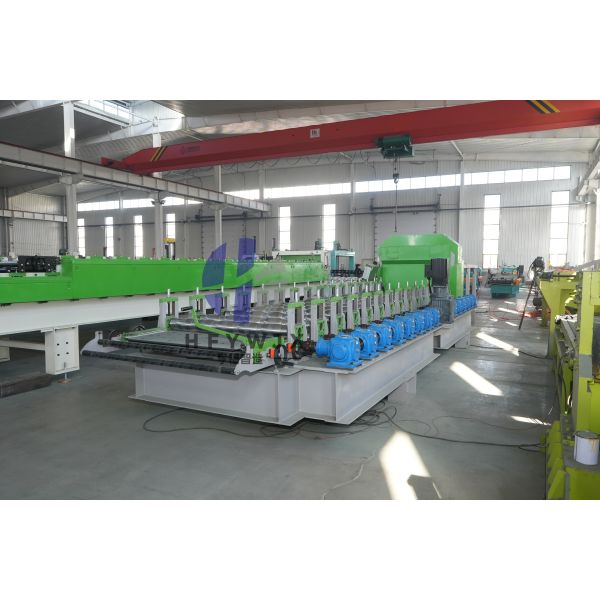

Roller Table Forming System

The roller table forming part of the 1110 partial arc roll forming machine serves as the key component for continuous forming of colored steel sheets. Driven by a special motor, power is transmitted through a stable chain system that drives each forming roller to rotate at uniform speed. This stable transmission ensures smooth forward movement of colored steel during the forming process, establishing a solid foundation for subsequent pressing and forming operations.

Hydraulic Pressing System

The pressing section utilizes hydraulic drive to achieve precise shaping of glazed tiles. A hydraulic cylinder drives the specialized mold with accurate up-and-down movement. Under the mold's action, flat colored steel sheets are gradually pressed into multiple continuous sections, ultimately forming standard and aesthetically pleasing glazed tile arc shapes that provide excellent appearance and three-dimensional effect.

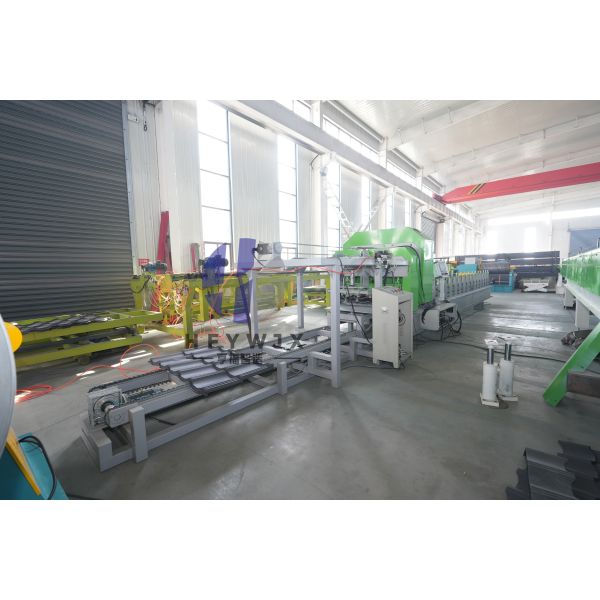

Precision Cutting System

The cutting knife mechanism in the 1110 arc glazed roll forming machine is also hydraulically driven. The cylinder powers the cutting knife for rapid up-and-down movement to accomplish fixed-length cutting. When colored steel tiles reach the preset length, the cutter performs quick, clean cuts ensuring uniform product dimensions and flat cut surfaces that meet production requirements.

Product Applications

Antique glazed tiles produced by the 1110 partial arc roll forming machine feature beautiful appearance, simple and elegant styling, unique shapes, and high decorative value. They are widely used in garden-style factories, tourist attractions, pavilions, hotels, villas, exhibition halls, resorts, residential buildings, and various outdoor architectural decoration projects.

Technical Specifications
Equipment Base Frame 400H Steel Frame (National Standard)
Middle Plate Thickness Standard Wall Panel
Roll Material 45Cr, heat-treated, precision machined and chrome-plated
Number of Roll Forming Stations 16
Main Shaft Diameter 80mm (Solid Shaft)
Main Motor Power 11kw Servo
Electrical Control System Industrial computer PLC frequency conversion control, separate touch screen electrical control system (with remote control and alarm) Cutting length error ≤1mm
Feeding Device Double hand-cranked feeding rack (with hand-operated cutter)
High Speed 1110 Glazed Tile Production Line with 16 Roll Forming Stations 11kw Servo Motor PLC Control High Speed 1110 Glazed Tile Production Line with 16 Roll Forming Stations 11kw Servo Motor PLC Control High Speed 1110 Glazed Tile Production Line with 16 Roll Forming Stations 11kw Servo Motor PLC Control High Speed 1110 Glazed Tile Production Line with 16 Roll Forming Stations 11kw Servo Motor PLC Control High Speed 1110 Glazed Tile Production Line with 16 Roll Forming Stations 11kw Servo Motor PLC Control
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
