Specifications
Tile Type :
Glazed Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Transmission Method :
Hydraulic Pressure
Transmission Mode :
Gear Drive
Cutting Method :
Four Column Pull Rod Guide Column Shear
Specification :
7700mm*1800mm*1700mm
Package Gross Weight :
7000.000kg
Package Size :
770.00cm * 180.00cm * 170.00cm
Usage :
Roof
Transport Package :
Plastic Film & Steel Wire Fixed
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Description

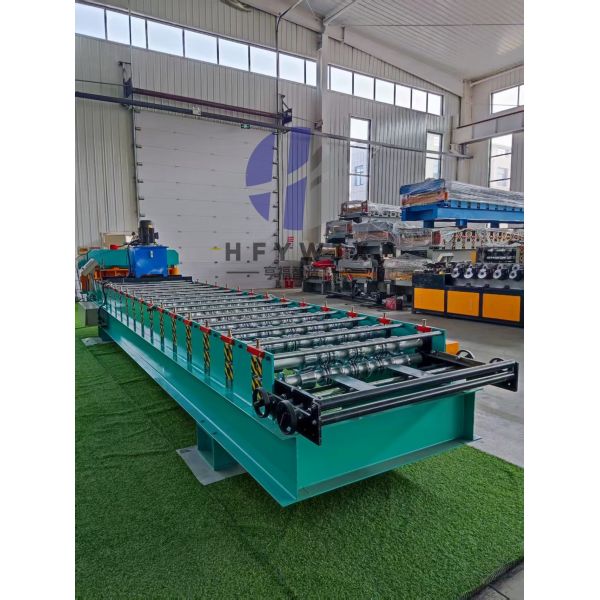

Industrial Grade High Output 980 Glazed Tile Roll Forming Machine
This advanced glazed roll forming machine features a comprehensive testing and operating system. It utilizes pulse encoder technology for precise length detection of colored steel tiles and includes safety mechanisms such as up/down travel switches, operation buttons for pressing and cutter functions, emergency stop switch, and hydraulic start-stop controls to ensure secure and stable operation.
Advanced Control System

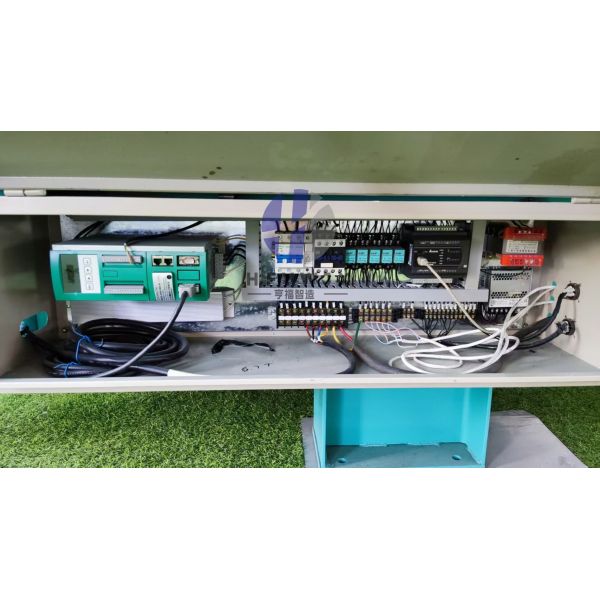

The machine is powered by a KDN-K306-24AR PLC from the KDN-K3 series, providing 14 input points and 10 relay outputs to fully meet equipment control requirements. With the supporting KDN text screen, operators can access parameter settings, alarm displays, help information, and real-time production data.
High-Performance Processing
The KDN-K306-24AR PLC delivers excellent high-speed input performance with strong anti-interference capability in AB phase mode. The fixed-value interrupt function ensures superior processing accuracy during length measurement and cutting operations.
Comprehensive Parameter Settings
Machine parameters are configured through the text screen and categorized into two types:
  • Equipment Parameters: Single pulse length, overshoot, pressing distance, pressing time, and cutting time
  • User Parameters: Sheet quantity, length, first section, last section, pitch, and number of sections
The control system also supports veneer cutting functionality to accommodate diverse production requirements.
Technical Specifications
Model NO 980
Condition New
Usage Roof
Electric Control System PLC
Machine Frame 400H Steel Frame
Forming Speed 4-6 M/min
Color Customized
Type of Driven Chain Drive
Transmission Method Hydraulic Pressure

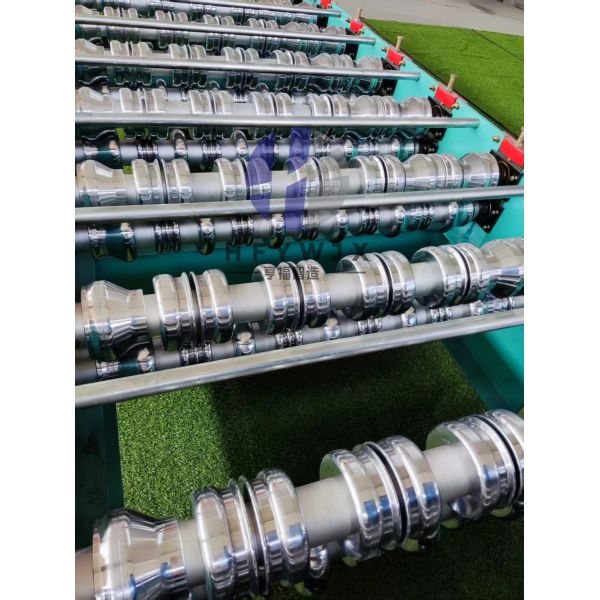

Number of Rolling Mill Sets 16 Row Molding
Spindle Diameter Φ80mm (Solid Shaft)
Customized Customized
Feeding Method Double Hand Rocking Feeding Rack
Origin Cangzhou, Hebei
Warranty 1 Year
Product Gallery
Industrial Grade 980 Model Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission Industrial Grade 980 Model Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission Industrial Grade 980 Model Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission Industrial Grade 980 Model Glazed Tile Roll Forming Machine with 16 Row Molding and Hydraulic Pressure Transmission
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
