1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
Specifications
Brand Name :
HENGFU
Model Number :
1100 glazed tile roll froming machine
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Delivery Time :
45Days
Packaging Details :
Plastic Film & Steel Wire Fixed
Tile Type :
Glazed Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Transmission Method :
Electric
Transmission Mode :
Gearbox Transmission
Cutting Method :
After Forming, The Material Is Cut Using a Dual Li
Transport Package :
Plastic Film & Steel Wire Fixed
HS Code :
8455221000
Production Capacity :
500pieces/Years
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description
1100 Glazed Tile Roll Forming Machine with PLC Control
Technical Specifications
Equipment Base Frame 400H Steel Frame (National Standard)
Middle Plate Thickness Standard Wall Panel

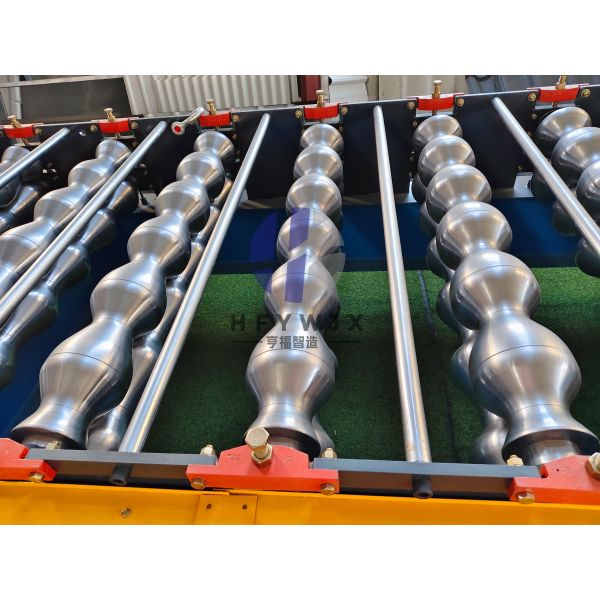

Roll Material 45Cr, heat-treated, precision machined and chrome-plated
Number of Roll Forming Stations 16
Main Shaft Diameter 80mm (Solid Shaft)
Main Motor Power 11kw Servo
Electrical Control System Industrial computer PLC frequency conversion control, separate touch screen electrical control system (with remote control and alarm) Cutting length error ≤1mm
Feeding Device Double hand-cranked feeding rack (with hand-operated cutter)
Machine Operation & Features

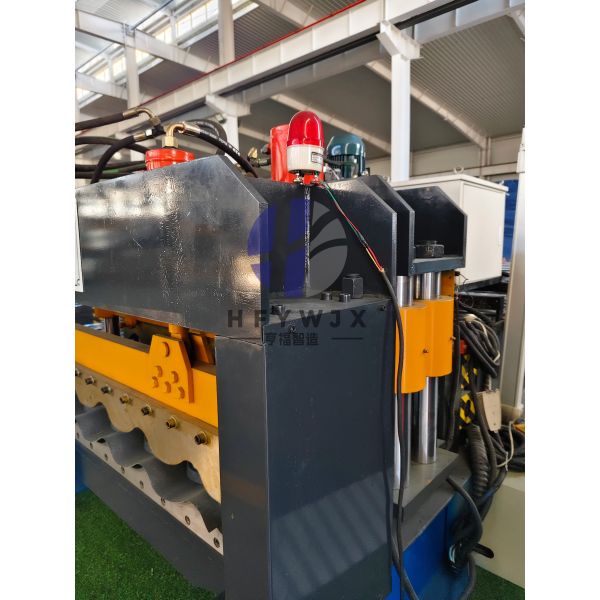

The roller table forming section of this 1100 partial arc roll forming machine is motor-driven, with chains driving each roller to rotate. In the pressing section, a hydraulic cylinder drives the mold in vertical motion, capable of pressing colored steel into multiple sections with glazed tile profiles. The cutting knife section utilizes hydraulic cylinder drive for vertical movement, enabling precise cutting of colored steel tiles.
Product Applications & Benefits
The antique glazed tiles produced by this 1100 type partial arc equipment feature beautiful appearance, simple elegance, unique shapes, and distinctive character. These tiles are widely applicable for garden-style factories, tourist attractions, pavilions, hotels, villas, exhibition buildings, and various outdoor decorations including resorts and residential properties.
1100 Glazed Tile Roll Forming Machine with PLC Control, 16 Roll Forming Stations, and 11kw Servo Motor for Roof Making
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
