Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
1110 Glazed Tile Production Line
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Production Speed :
4–12 m/min
Transmission Method :
Electric
Cutting Method :
After Forming, The Material Is Cut Using a Dual Li
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description
Professional Industrial Manufacturing 1110 Glazed Tile Production Line
The 1110 glazed tile roll forming machine (Model YX24-222-1110) is a high-performance building equipment produced by Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd. It is suitable for 1250mm wide color steel and galvanized steel sheets with thickness 0.3-0.5mm (Q235 material). It features stable performance and excellent forming effect, making it the best choice for high-quality glazed tile production.
Robust Construction & Components

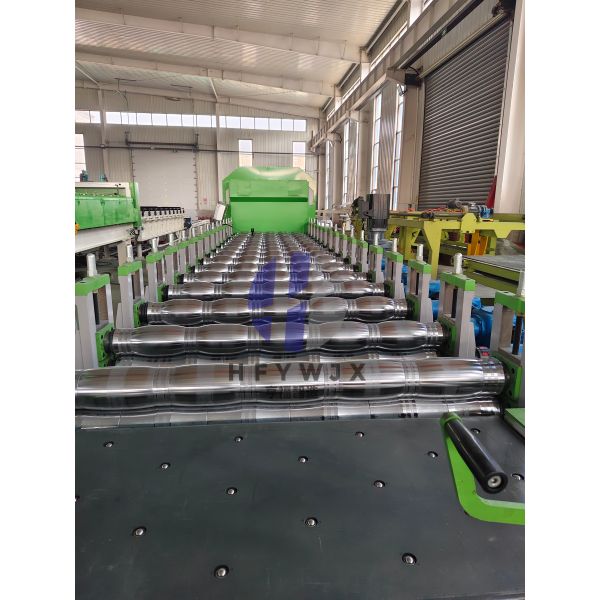

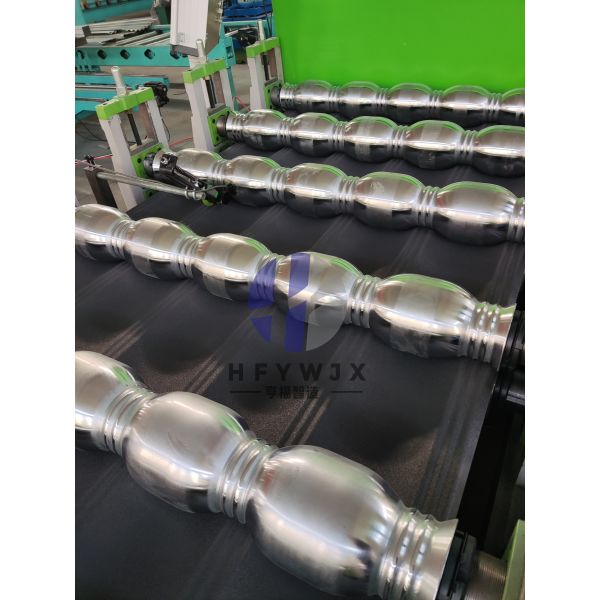

This machine uses a strong 400H national standard steel frame and 16mm thick wall panels for high rigidity. It is equipped with 16-21 rows of forming rolls made of 45Cr steel through quenching, tempering, fine turning and chrome plating. The 80mm solid main shaft and 11kW servo motor with gearbox drive ensure stable and reliable operation.
Precision Cutting & Control System

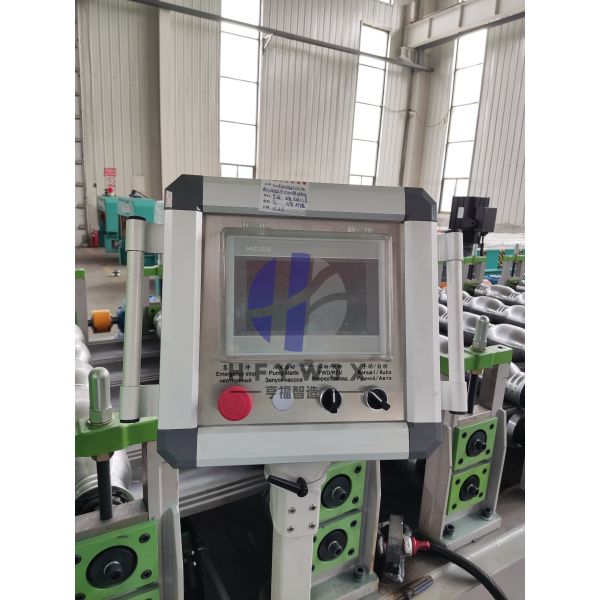

It adopts post-forming double linear guide electric cutting system. The cutting tools and molds are made of Cr12Mov with quenching and fine grinding, providing burr-free cutting and low maintenance. The PLC control system, separate touch screen, remote control and alarm ensure cutting accuracy within 1mm for intelligent automatic production.
Operation & Applications

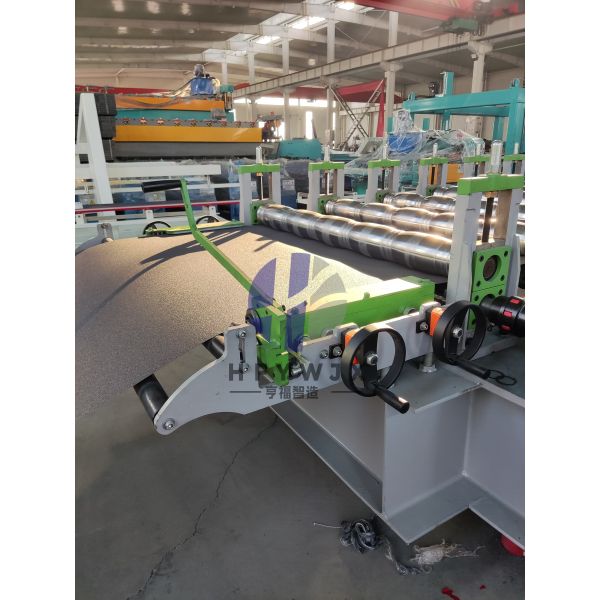

Equipped with a double hand-operated feeding frame with manual cutter, the machine is easy to operate. It runs stably at 4-12m/min for continuous mass production. It is widely used in antique buildings such as factories, scenic spots, pavilions, hotels and villas.
Technical Specifications
Model 1110
Feeding Width 1250 mm
Suitable Material Color steel sheet, Galvanized steel sheet
Material Standard Q235
Material Thickness 0.3-0.5 mm
Machine Frame 400H standard steel
Wall Plate Thickness 16 mm
Forming Roll Stations 16-21 rows
Roll Material 45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft Φ80 mm solid shaft
Main Motor 11 kW servo motor
Transmission Gear box drive
Production Speed 4-12 m/min
Cutting Type Post-forming cutting, double linear guide electric shearing
Product Gallery
Professional 1110 Glazed Tile Production Line 16-21 Roll Forming Stations PLC Control System Professional 1110 Glazed Tile Production Line 16-21 Roll Forming Stations PLC Control System Professional 1110 Glazed Tile Production Line 16-21 Roll Forming Stations PLC Control System Professional 1110 Glazed Tile Production Line 16-21 Roll Forming Stations PLC Control System Professional 1110 Glazed Tile Production Line 16-21 Roll Forming Stations PLC Control System
Frequently Asked Questions
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
