16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
980 glazed tile roll forming machine
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Hydraulic Pressure
Transmission Mode :
Gear Drive
Transport Package :
Plastic Film & Steel Wire Fixed
Origin :
Dongguang, Cangzhou City
Production Capacity :
400sets/Year
Description

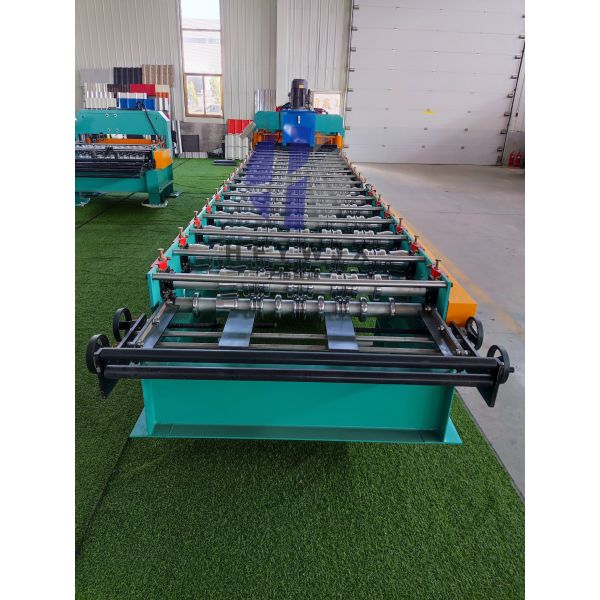

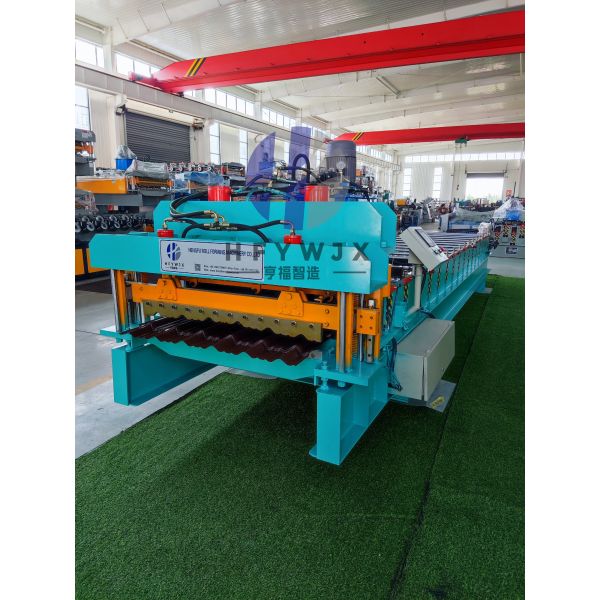

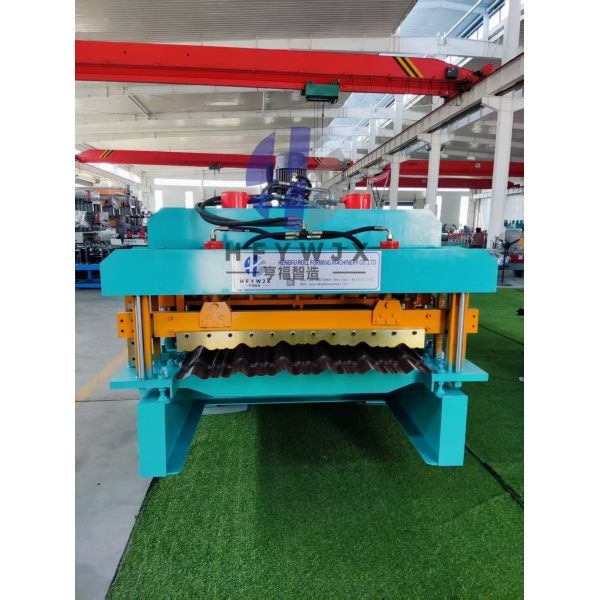

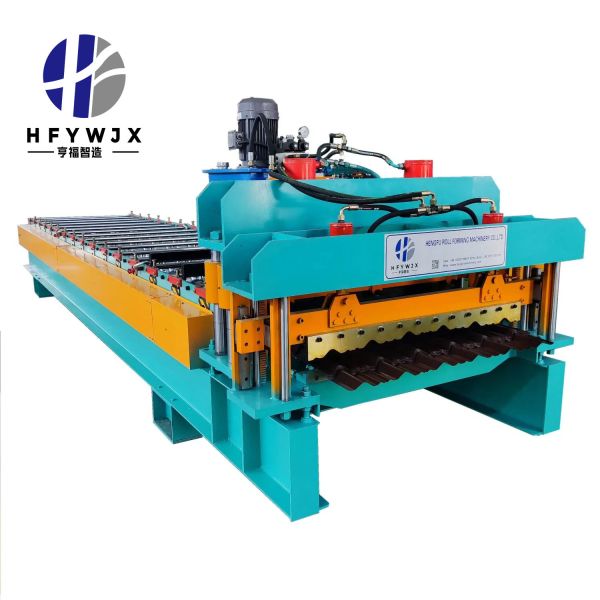

High Efficiency Glazed Tile Roll Forming Machine
This high-productivity 980 glazed tile roll forming machine is specially designed for manufacturing galvanized and color steel roofing sheets with elegant glazed tile profiles. It adopts advanced roll forming technology to ensure continuous and stable production, delivering high efficiency with a forming speed of about 4-6 meters per minute.
The machine is suitable for processing color steel plates with a thickness range of 0.3-0.8 mm, making it widely applicable in modern construction projects such as residential roofs, villas, and decorative buildings.
Key Features
  • Robust 400H steel frame construction for excellent durability
  • Precision-engineered 45Cr rollers with chrome plating treatment
  • Φ80 mm solid shaft design enhances operational stability
  • Multi-row forming system ensures accurate shaping and consistent products
  • Hydraulic cutting system with four-column guide shearing for smooth performance
  • Intelligent PLC control system with touch screen interface
  • Automated operation reduces labor intensity and improves accuracy
  • Cutting length error controlled within ±1 mm
  • Alarm systems and remote control functions for enhanced safety
Technical Specifications
Model NO 980
Condition New
Usage Roof
Electric control system PLC
Machine frame 400H steel frame
Forming Speed 4-6M/min
Type of Driven Chain drive
Transmission Method hydraulic pressure
Number of rolling mill sets 16 row molding
Spindle diameter Φ80mm (Solid shaft)
Feeding method Double hand rocking feeding rack
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels 16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels 16 Row Molding Glazed Roofing Sheet Making Machine With PLC Control And Hydraulic Pressure For Roof Panels
Frequently Asked Questions
What services do you provide?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What are the available cutting methods?
Hydraulic Flying Shear and Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
