Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
1110 Glazed Tile Production Line
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Production Speed :
4–12 m/min
Transmission Method :
Electric
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description

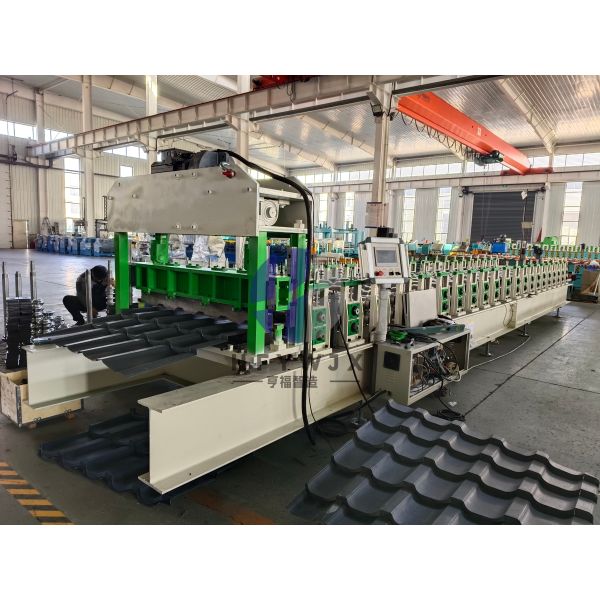

Premium Industrial Automatic 1110 Glazed Tile Production Line

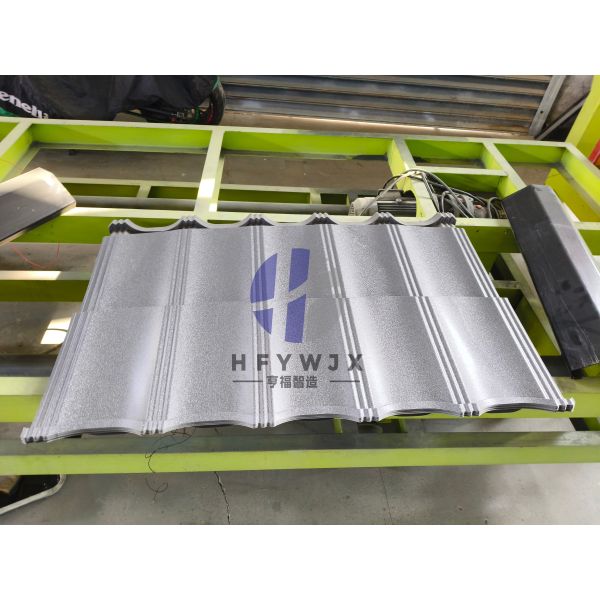

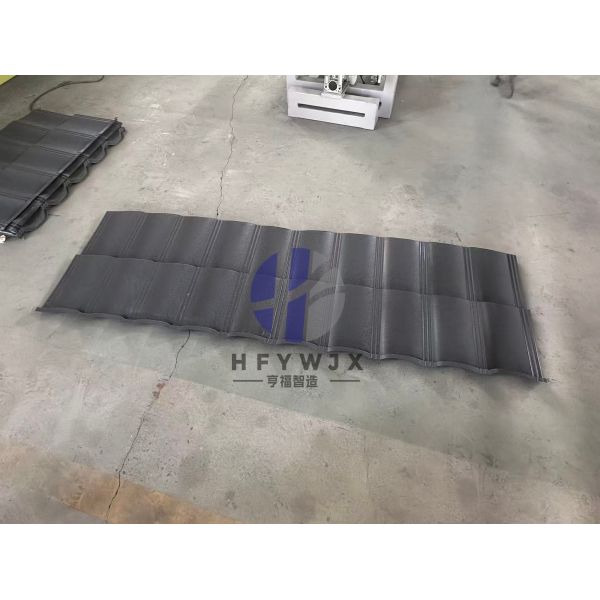

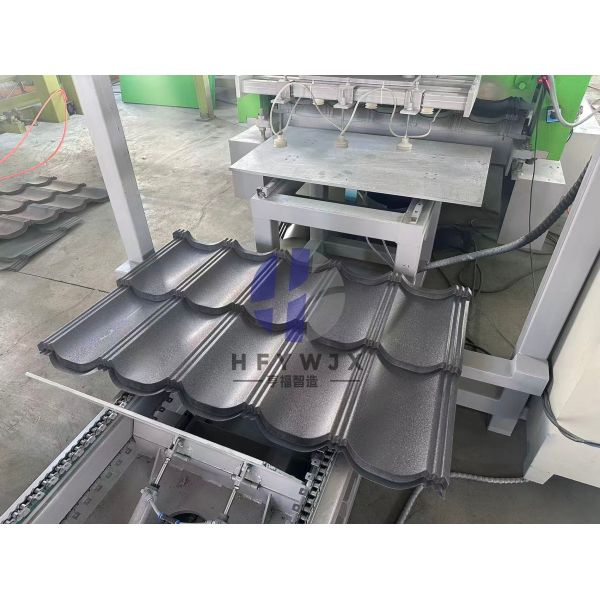

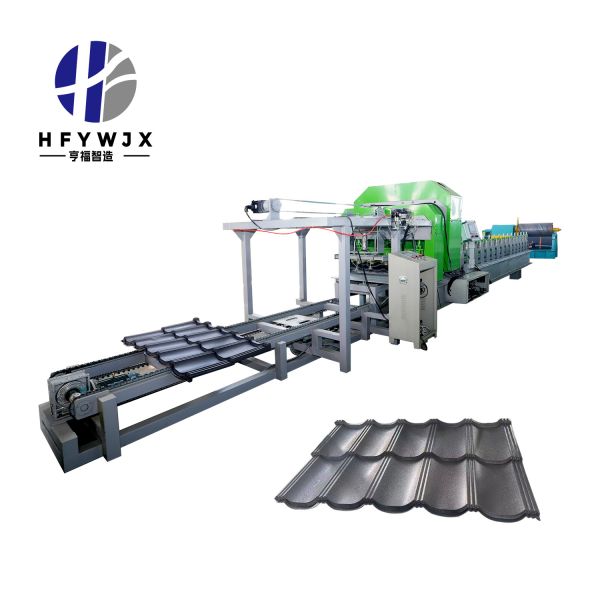

The 1110 glazed tile roll forming machine (Model YX24-222-1110) is a reliable equipment for manufacturing colored steel glazed tiles. It processes 1250mm width and 0.3-0.5mm thickness sheets with stable performance and high molding quality.

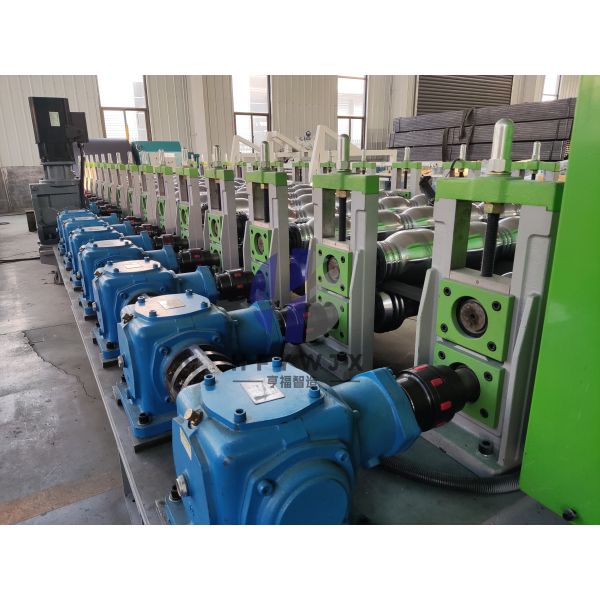

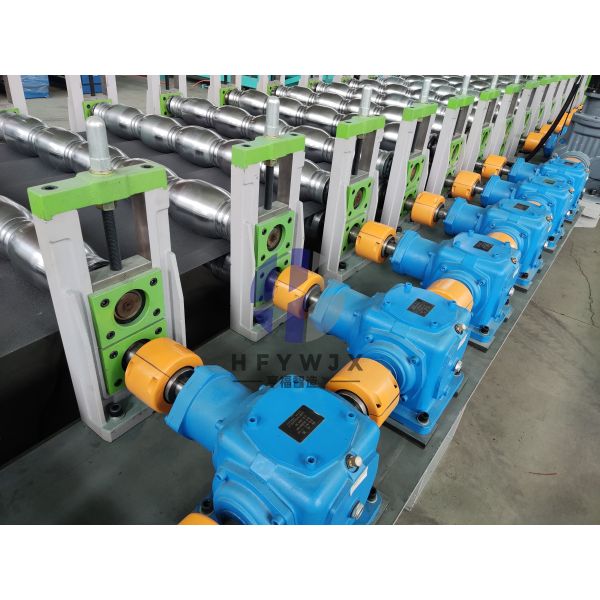

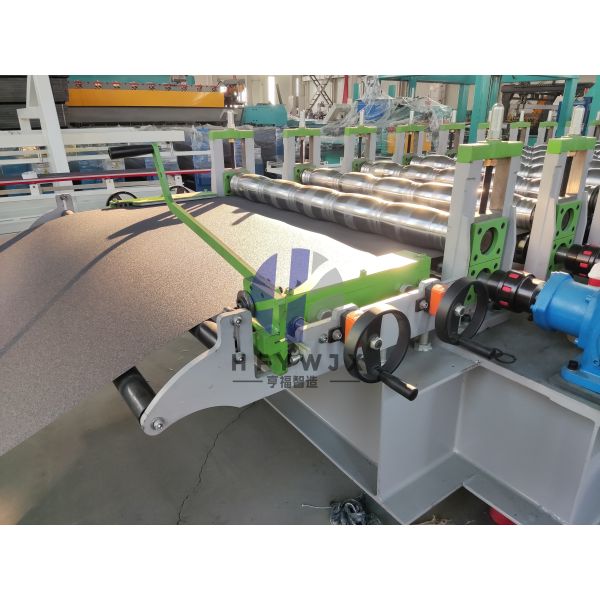

This machine is constructed with 400H heavy-duty steel frame and 16mm thick wall plates. It uses 16-21 rows of 45Cr forming rolls treated by quenching, tempering, fine turning and chrome plating. The 80mm solid main shaft and 11kW servo motor ensure stable running.

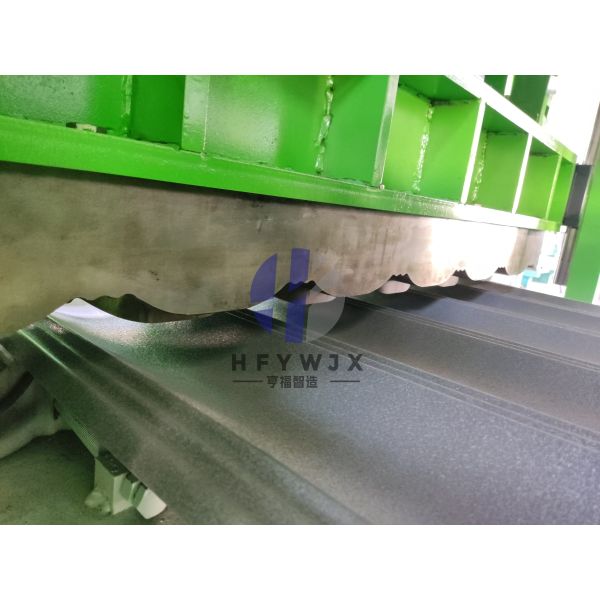

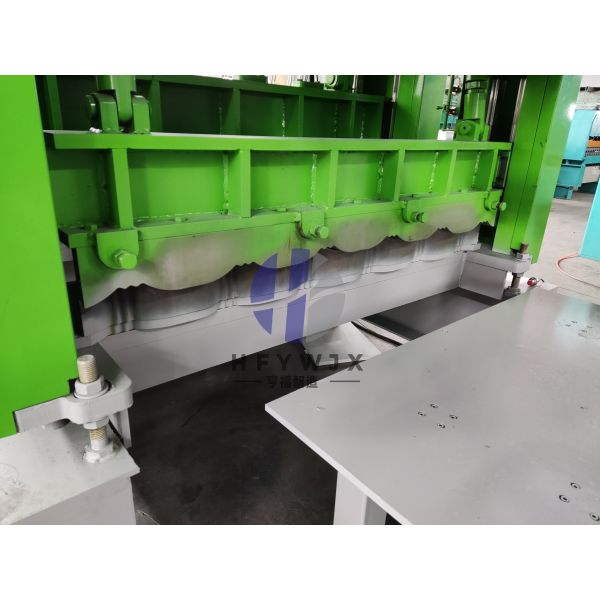

It is equipped with double linear guide electric shearing after forming. The Cr12Mov cutter and mold ensure clean cutting and low failure rate. The PLC control system with touch screen and remote control ensures high cutting accuracy.

The machine comes with a double hand-operated feeding frame with manual cutter. It can work continuously at 4-12m/min for mass production. It is widely used in factories, scenic areas, pavilions, hotels, villas and other construction projects.

Technical Specifications
Model 1110
Feeding Width 1250 mm
Suitable Material Color steel sheet, Galvanized steel sheet
Material Standard Q235
Material Thickness 0.3-0.5 mm
Machine Frame 400H standard steel
Wall Plate Thickness 16 mm
Forming Roll Stations 16-21 rows
Roll Material 45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft Φ80 mm solid shaft
Main Motor 11 kW servo motor
Transmission Gear box drive
Production Speed 4-12 m/min
Cutting Type Post-forming cutting, double linear guide electric shearing
Product Gallery
HENGFU 1110 Glazed Tile Production Line With 16-21 Stations PLC Control System HENGFU 1110 Glazed Tile Production Line With 16-21 Stations PLC Control System HENGFU 1110 Glazed Tile Production Line With 16-21 Stations PLC Control System HENGFU 1110 Glazed Tile Production Line With 16-21 Stations PLC Control System HENGFU 1110 Glazed Tile Production Line With 16-21 Stations PLC Control System
Frequently Asked Questions
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
