Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
1110 Glazed Tile Production Line
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Production Speed :
4–12 m/min
Transmission Method :
Electric
Cutting Method :
After Forming, The Material Is Cut Using a Dual Li
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description

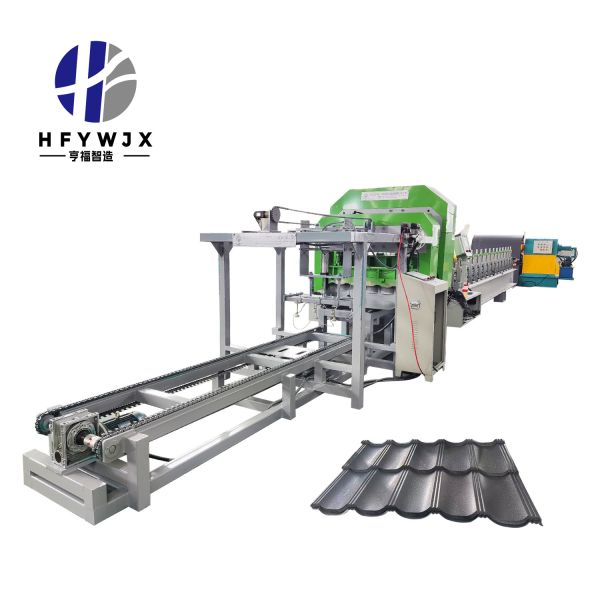

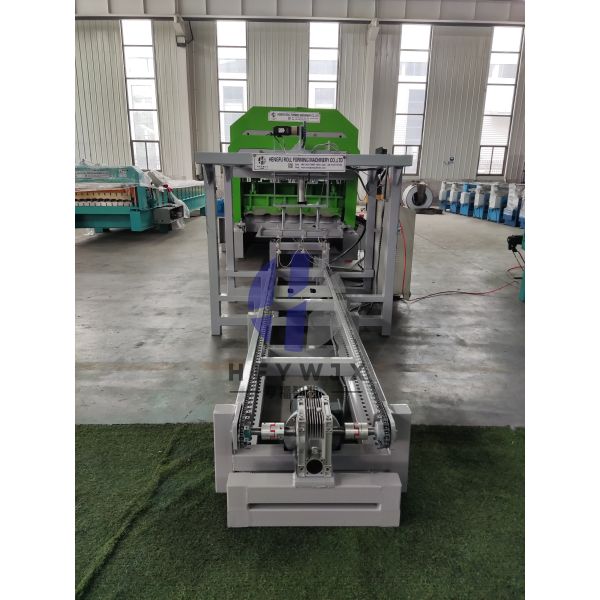

Precision Forming Low Failure 1110 Glazed Tile Production Line
Product Overview

The 1110 glazed tile roll forming machine (Model YX24-222-1110) is professional building material production equipment manufactured by Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd. Designed for processing color steel sheets and galvanized steel sheets with a width of 1250mm and thickness of 0.3-0.5mm, this equipment ensures stable operation and produces high-quality tiles.

Robust Construction

This machine features a 400H national standard steel frame and 16mm thick wall plates for exceptional rigidity and durability. The construction ensures long-term reliability in demanding production environments.

Premium Components
  • 16-21 rows of forming rolls made from 45Cr steel with quenching, tempering, fine turning, and chrome plating

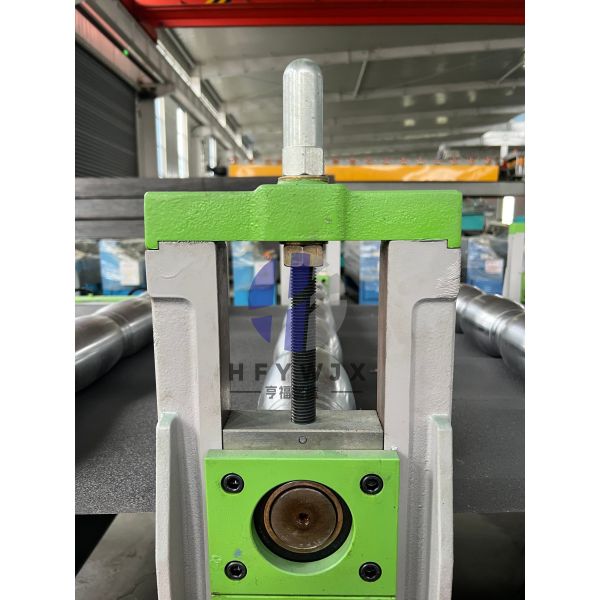

  • 80mm solid main shaft for superior strength and stability

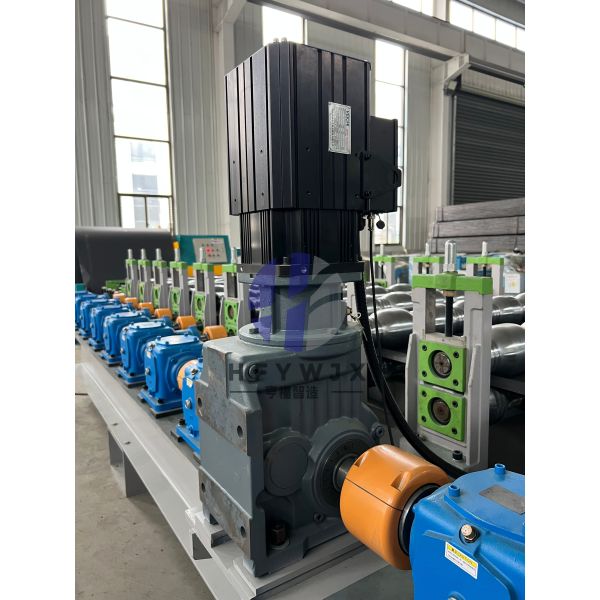

  • 11kW servo motor providing consistent and powerful performance
Advanced Cutting System

The machine utilizes post-forming double linear guide electric shearing. Cutters and molds are manufactured from Cr12Mov with quenching and fine grinding, ensuring burr-free cutting and minimal maintenance requirements.

Intelligent Control

Equipped with a PLC control system featuring touch screen interface, remote control capability, and alarm functions for intelligent and precise operation.

Operational Features

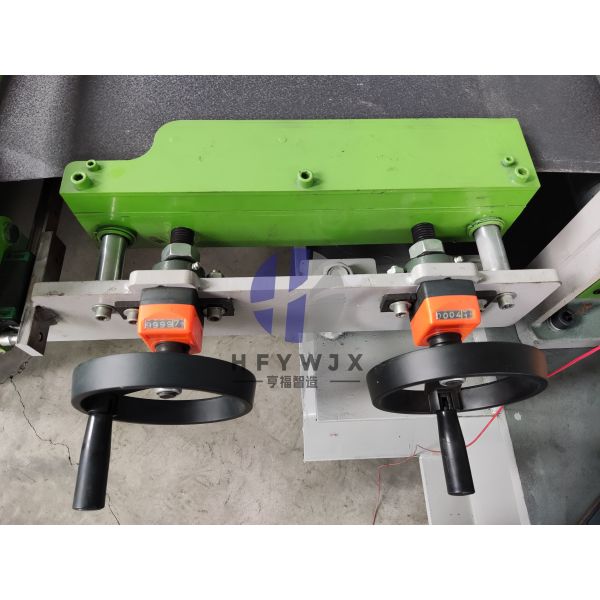

  • Double hand-operated feeding frame with manual cutter for easy operation
  • Production speed range: 4 to 12 meters per minute
  • Ideal for mass production requirements
  • Widely used in factories, scenic spots, pavilions, hotels, villas, and other antique building projects
Technical Specifications
Model 1110
Feeding Width 1250 mm
Suitable Material Color steel sheet, Galvanized steel sheet
Material Standard Q235
Material Thickness 0.3-0.5 mm
Machine Frame 400H standard steel
Wall Plate Thickness 16 mm
Forming Roll Stations 16-21 rows
Roll Material 45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft Φ80 mm solid shaft
Main Motor 11 kW servo motor
Transmission Gear box drive
Production Speed 4-12 m/min
Cutting Type Post-forming cutting, double linear guide electric shearing
Product Gallery
Precision Low Failure 1110 Glazed Roofing Tile Machine With 16-21 Roll Forming Stations Precision Low Failure 1110 Glazed Roofing Tile Machine With 16-21 Roll Forming Stations Precision Low Failure 1110 Glazed Roofing Tile Machine With 16-21 Roll Forming Stations Precision Low Failure 1110 Glazed Roofing Tile Machine With 16-21 Roll Forming Stations Precision Low Failure 1110 Glazed Roofing Tile Machine With 16-21 Roll Forming Stations
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
