Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO :
1100 Glazed tile roll forming machine
Customized :
Customized
Transmission Method :
Electric
Main Motor Power :
11 kW servo motor
Control System :
PLC
Color :
Customers Requirement
Thickness of Coil Sheet :
0.3-0.8mm
Forming Speed :
4-5M/min
Quantity of Stand :
16 Stands
Transmission Mode :
Chain Drive
Transport Package :
Plastic Film & Steel Wire Fixed
Description
1100 Glazed Tile Roof Sheet Roll Forming Machine for Steel Building Materials with Hydraulic Cutting System
Machine Overview

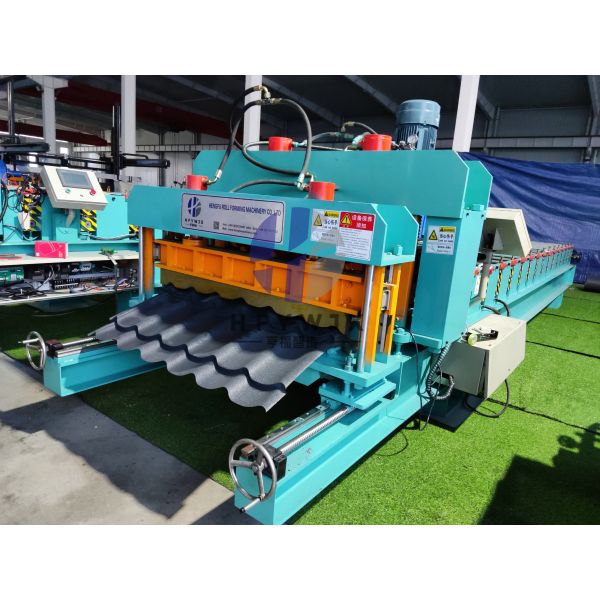

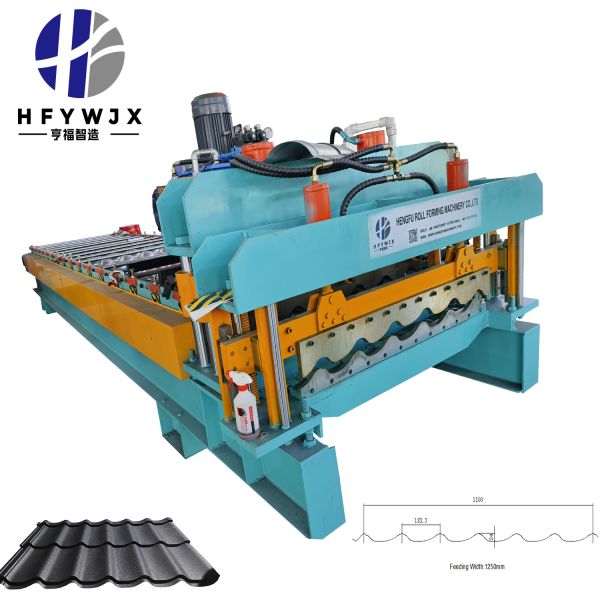

The 1100 Partial Arc Glazed Tile Roll Forming Machine is engineered for precision manufacturing of steel building materials with traditional glazed tile aesthetics. This advanced system combines roller forming, hydraulic pressing, and cutting technologies to deliver high-quality roofing solutions.

Key Features & Operation

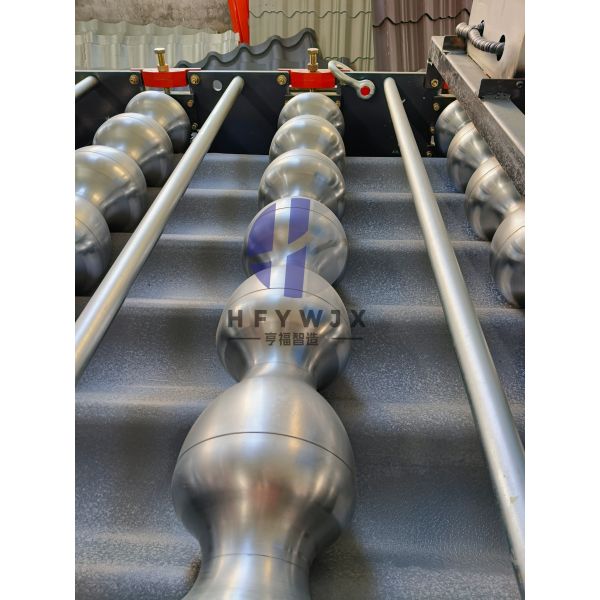

  • Roller Forming System: Electric motor-driven roller table with chain transmission ensures smooth, synchronized rotation for precise forming and continuous production efficiency

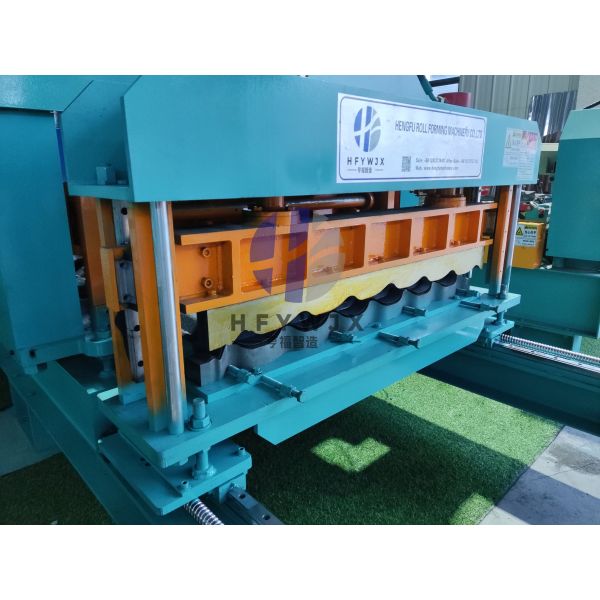

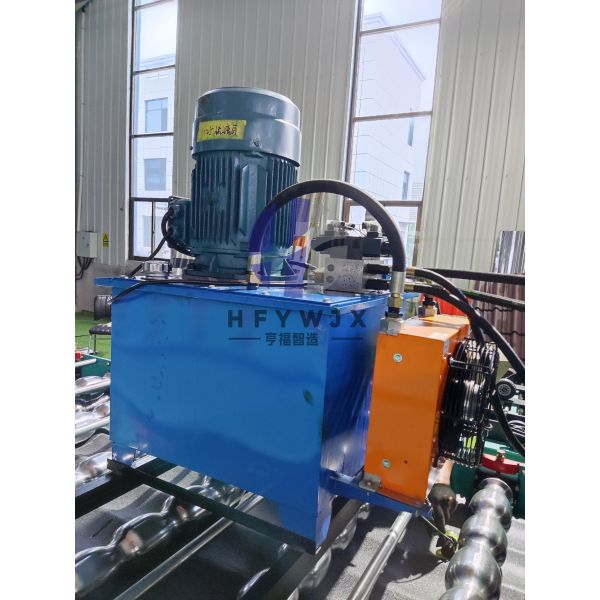

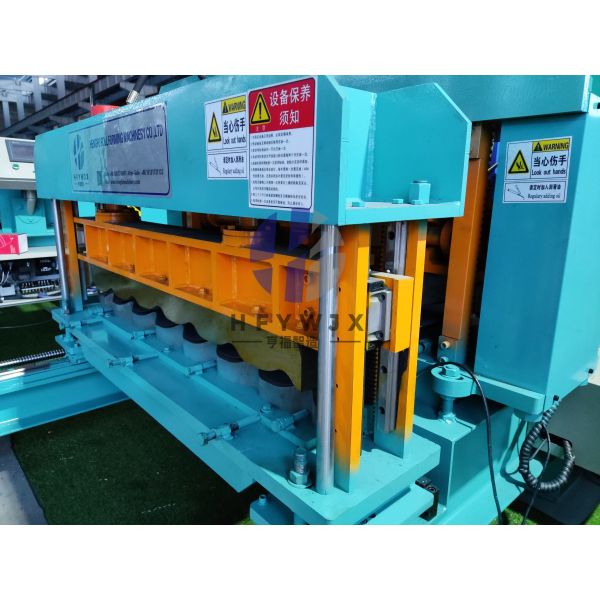

  • Hydraulic Pressing Section: Hydraulic cylinder system drives molds with strong pressure to create evenly spaced arc segments, transforming steel sheets into elegant glazed tile profiles

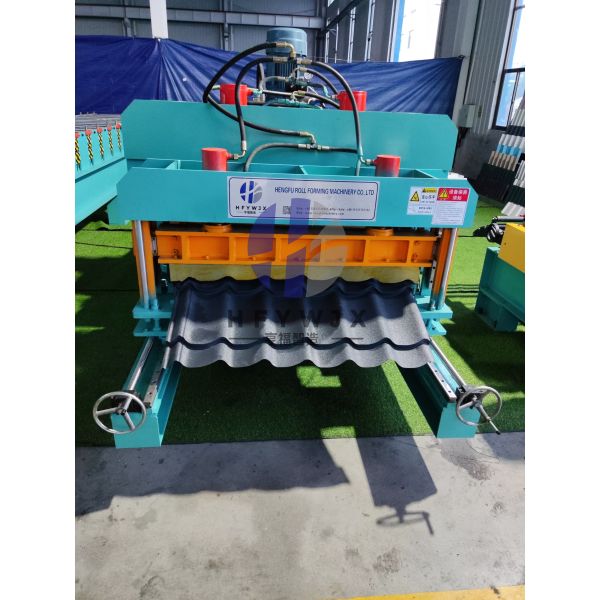

  • Precision Cutting: Hydraulically driven cutting system provides vertical movement with high precision for clean edges and accurate dimensions
  • Integrated Production: Three main components—roller forming, pressing, and cutting—work in coordination for fully automated operation from coil feeding to finished product
Production Process

The manufacturing sequence begins with colored steel coil entering the roller forming system for basic profile shaping, progresses to the pressing section for arc segment stamping, and concludes with precise length cutting according to production specifications.

Applications & Benefits

The antique-style glazed tiles produced feature elegant appearance, smooth curves, and classic traditional design. These lightweight yet strong tiles offer excellent load-bearing performance and durability, making them ideal for:

  • Garden-style factories and industrial buildings
  • Tourist attractions, pavilions, and resorts
  • Hotels, villas, and exhibition halls
  • Modern steel structure construction
  • Architectural projects requiring both strength and aesthetic appeal
Technical Specifications
Model NO 1100
Condition New
Usage Roof
Machine Frame 350H steel frame
Forming Speed 4-5M/min
Type of Driven Chain drive
Transmission Method Electric
Number of Rolling Mill Sets 16 row molding
Spindle Diameter Φ70mm (Solid shaft)
Feeding Method Double hand rocking feeding rack (with pressure roller)
Specification 9000mm x 1800mm x 1700mm
Electrical Control System Industrial Computer PLC
Origin Cangzhou, Hebei
Warranty 1 year
Transport Package Plastic Film & Steel Wire Fixed
HS Code 8455221000
Product Gallery
1100 Glazed Tile Roof Sheet Roll Forming Machine with Hydraulic Cutting System 16 Stands 1100 Glazed Tile Roof Sheet Roll Forming Machine with Hydraulic Cutting System 16 Stands 1100 Glazed Tile Roof Sheet Roll Forming Machine with Hydraulic Cutting System 16 Stands 1100 Glazed Tile Roof Sheet Roll Forming Machine with Hydraulic Cutting System 16 Stands 1100 Glazed Tile Roof Sheet Roll Forming Machine with Hydraulic Cutting System 16 Stands
Frequently Asked Questions
What types of profiles can you produce?
Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
