11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
1100 Glazed tile roll forming machine
Customized :
Customized
Transmission Method :
Electric
Main Motor Power :
11 kW servo motor
Control System :
PLC
Color :
Customers Requirement
Thickness of Coil Sheet :
0.3-0.8mm
Forming Speed :
4-5M/min
Quantity of Stand :
16 Stands
Transmission Mode :
Chain Drive
Transport Package :
Plastic Film & Steel Wire Fixed
Description
1100 Roof Deck Sheet Glazed Tile Making Machine Cold Steel Roll Forming Machine for Roofing Panel Production
Machine Overview

The 1100 Partial Arc Glazed Tile Roll Forming Machine is engineered for precision manufacturing of elegant, traditional-style roofing panels. This advanced system combines roller forming, hydraulic pressing, and cutting technologies to deliver high-quality glazed tile profiles with exceptional efficiency.

Key Components & Operation

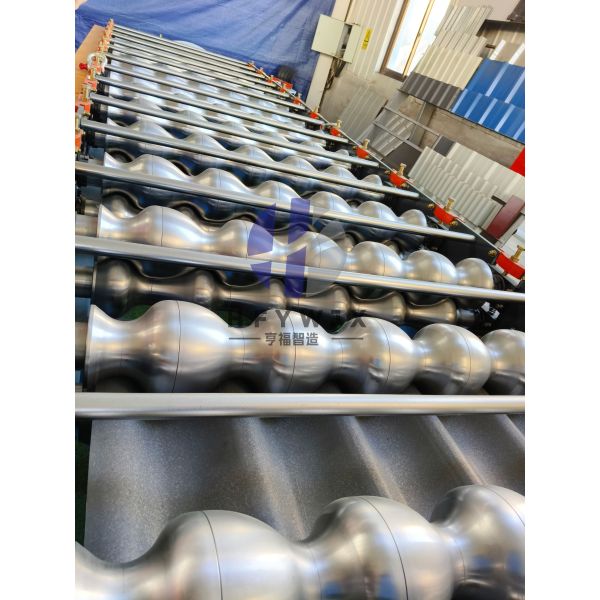

  • Roller Forming Section: Electric motor-driven with chain transmission system ensuring smooth, synchronized rotation for precise forming and continuous production

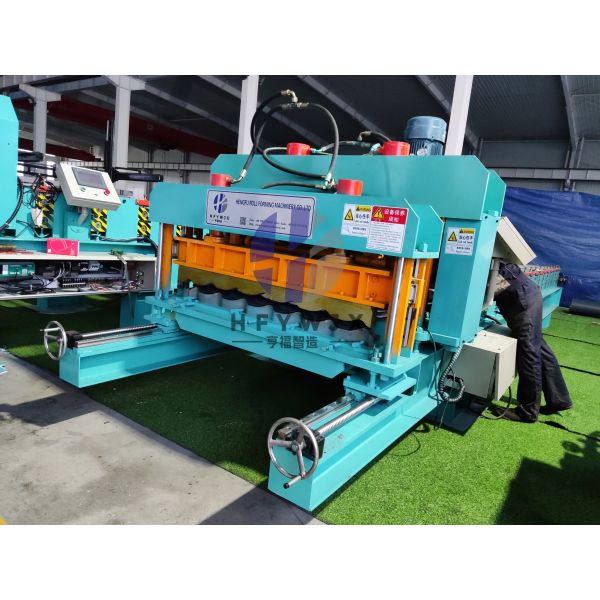

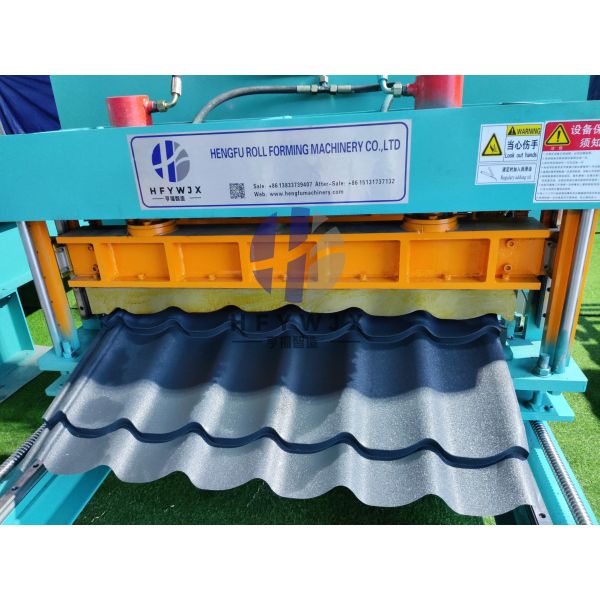

  • Hydraulic Pressing Section: Powerful hydraulic cylinder system drives molds to create evenly spaced arc segments, transforming steel sheets into traditional glazed tile profiles
  • Precision Cutting System: Hydraulically-driven vertical cutter ensures clean edges and accurate dimensions with high production output
  • Integrated Process: Three main components work in coordination to complete the full production cycle from coil feeding to finished product cutting
Production Process

The manufacturing sequence begins with colored steel coil entering the roller forming system for initial profiling. The material then advances to the pressing section where hydraulic stamping creates evenly spaced arc-shaped segments. Finally, the cutting unit precisely sections the formed sheet into required lengths, ensuring dimensional accuracy throughout.

Product Applications

The antique-style glazed tiles produced by this machine feature elegant appearances with smooth curves and classic traditional designs. These premium roofing panels are ideal for garden-style factories, tourist attractions, pavilions, hotels, villas, exhibition halls, resorts, and various architectural decoration projects requiring both aesthetic appeal and structural performance.

Product Benefits

Finished products are characterized by lightweight yet strong construction with excellent load-bearing performance and durability. This combination of aesthetic appeal and practical functionality makes them highly suitable for modern steel structure construction and decorative roofing applications, particularly in multi-story buildings and architectural projects demanding both strength and beauty.

Technical Specifications
Model Number 1100
Condition New
Usage Roof
Machine Frame 350H Steel Frame
Forming Speed 4-5 M/min
Drive Type Chain Drive
Transmission Method Electric
Rolling Mill Sets 16 Row Molding
Spindle Diameter Φ70mm (Solid Shaft)

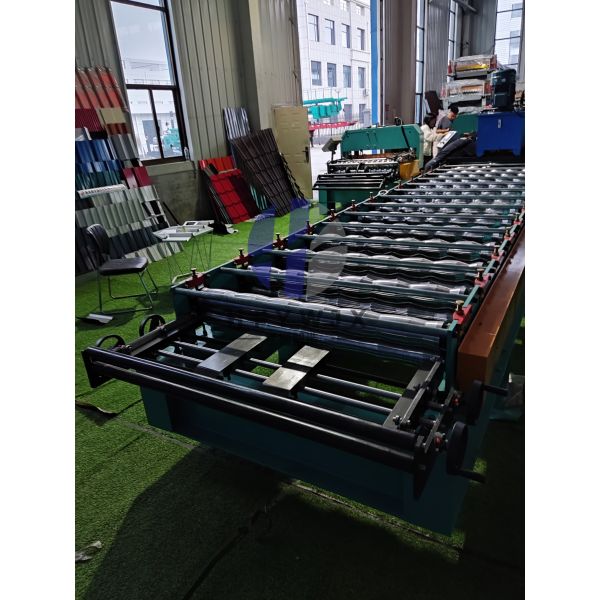

Feeding Method Double Hand Rocking Feeding Rack (with Pressure Roller)
Specification 9000mm x 1800mm x 1700mm
Electrical Control System Industrial Computer PLC
Origin Cangzhou, Hebei
Warranty 1 Year
Transport Package Plastic Film & Steel Wire Fixed
HS Code 8455221000
Machine Gallery
11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production 11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production 11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production 11 KW 1100 Roof Deck Glazed Sheet Roll Forming Machine 16 Stands For Efficient Roofing Panel Production
Frequently Asked Questions
Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.
Q2: Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3: Do you sell only standard machines?
A3: No, most of our machines are built according to customer specifications, using top brand components.
Q4: What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't be repaired, we can send new parts to replace the broken parts freely, but you need to pay the express cost. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply technical support for the entire life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to the determined lead time.
