Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
1110 Glazed Tile Production Line
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Production Speed :
4–12 m/min
Transmission Method :
Electric
Cutting Method :
After Forming, The Material Is Cut Using a Dual Li
Package Size :
900.00cm * 130.00cm * 170.00cm
Package Gross Weight :
10000.000kg
Description

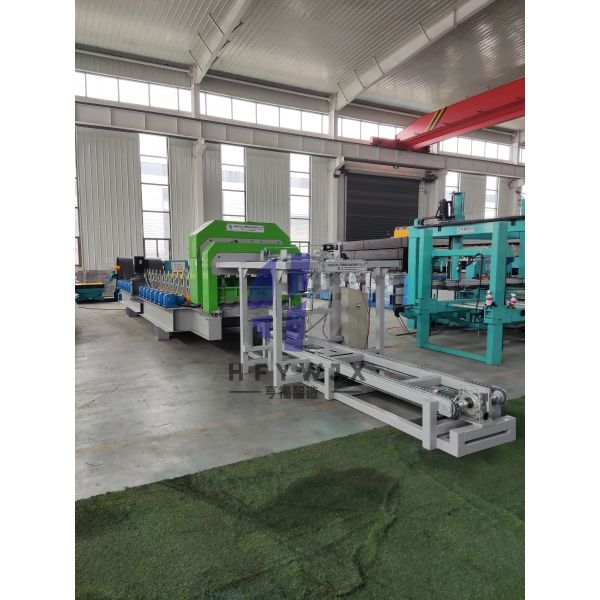

High Precision Burr Free 1110 Glazed Tile Production Line
The 1110 glazed tile roll forming machine (Model YX24-222-1110) is a professional and durable building material machine manufactured by Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd. This high-performance system processes 1250mm color steel and galvanized steel sheets (Q235, 0.3-0.5mm) with exceptional efficiency and stable quality output.

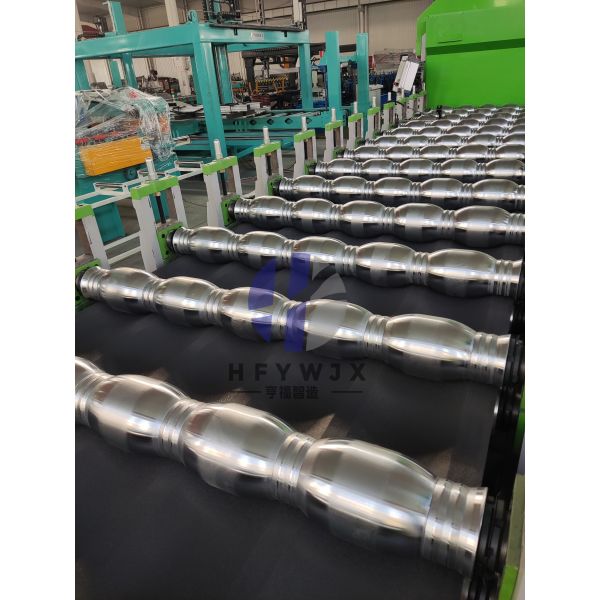

Constructed with a heavy-duty 400H steel frame and 16mm wall plates, the machine delivers superior strength and rigidity. It features 16-21 rows of 45Cr rolls treated through quenching, tempering, fine turning, and chrome plating processes. The robust 80mm solid main shaft combined with an 11kW servo motor and gearbox ensures stable, efficient operation.

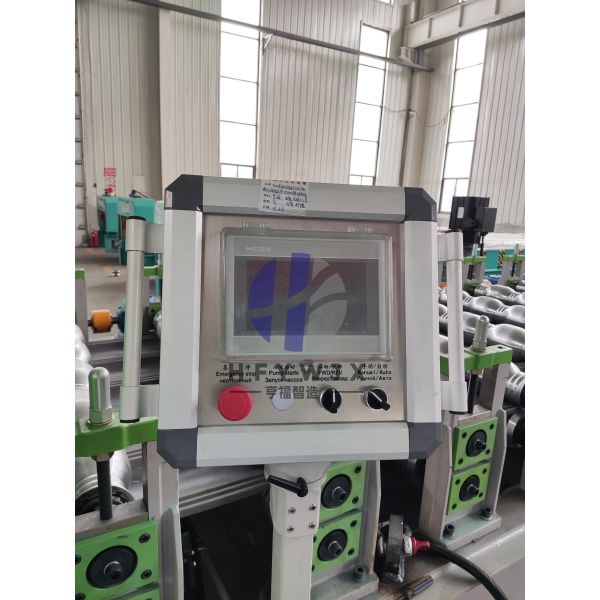

The system incorporates post-forming double linear guide electric cutting technology. The Cr12Mov quenched and finely ground mold and cutter provide burr-free cutting with minimal maintenance requirements. A sophisticated PLC control system with touch screen interface, remote control capability, and alarm functions guarantees cutting accuracy within ≤1mm tolerance.
Operational efficiency is enhanced through a double hand-operated feeding frame with manual cutter for simplified operation. The machine maintains continuous production speeds of 4-12m/min, making it ideal for mass production environments. It is widely utilized for glazed tile manufacturing in factories, scenic spots, pavilions, hotels, villas, and various antique building applications.
Technical Specifications
Model 1110
Feeding Width 1250 mm
Suitable Material Color steel sheet, Galvanized steel sheet
Material Standard Q235
Material Thickness 0.3-0.5 mm
Machine Frame 400H standard steel
Wall Plate Thickness 16 mm
Forming Roll Stations 16-21 rows
Roll Material 45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft Φ80 mm solid shaft
Main Motor 11 kW servo motor
Transmission Gear box drive
Production Speed 4-12 m/min
Cutting Type Post-forming cutting, double linear guide electric shearing
Product Gallery
High Precision 1110 Glazed Roof Tile Manufacturing Machine With Burr Free Cutting Electric Shearing High Precision 1110 Glazed Roof Tile Manufacturing Machine With Burr Free Cutting Electric Shearing High Precision 1110 Glazed Roof Tile Manufacturing Machine With Burr Free Cutting Electric Shearing High Precision 1110 Glazed Roof Tile Manufacturing Machine With Burr Free Cutting Electric Shearing High Precision 1110 Glazed Roof Tile Manufacturing Machine With Burr Free Cutting Electric Shearing
Frequently Asked Questions
Can a single machine produce multiple types of profiles?
Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
Does the machine require disassembly for transport?
The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
