3 Phase Plc 350h Beam Highway Guardrail Forming Machine
3 Phase Plc 350h Beam Highway Guardrail Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-highway 3
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Usage: :
highway guardrail
Marketing Type: :
Hot Product 2021
Voltage :
380V.50HZ.3 Phase
Control System: :
PLC
Use :
Highway guardrail steel sheet
Type :
Highway guardrail crash barrier roll forming machine
Structure: :
350H beam
roduction Capacity: :
8-12m/min
Material of Roller: :
Gcr15, Quench HRC58-62 Plated Chrome
Way Of Drive: :
Gearbox driven
Description

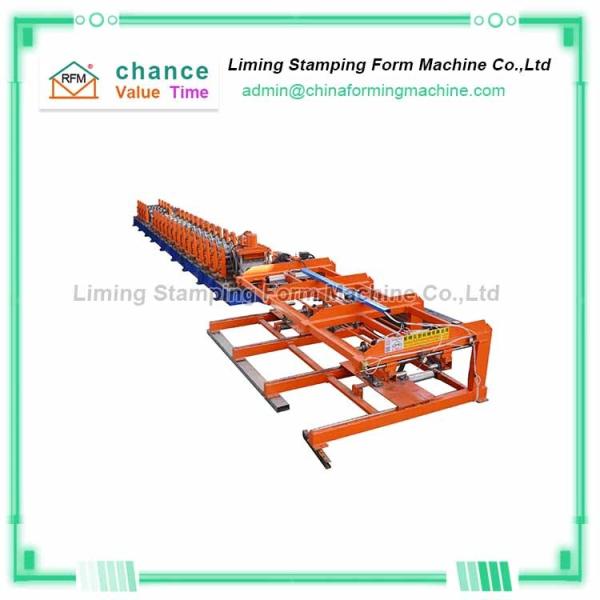

Highway guardrail forming machine production line

High-speed guardrail board forming machine is used to produce high-speed guardrail products

First of all, the transmission device of the high-speed guardrail forming machine we researched and developed is different from the transmission device of other manufacturers' high-speed guardrail forming machines. We use a gear box with abundant power as the transmission device of the machine, which not only ensures the power of the machine, but also greatly improves Production speed.

Then we equipped the high-speed guardrail forming machine with an integrated independent middle plate, which fits closely with the machine base, which not only guarantees the pressure capacity of the equipment, but also ensures the stability of the equipment. Can help you efficiently produce.

At the same time, our high-speed guardrail forming machine produces high-speed guardrail products with stylish appearance and high tensile strength. And easy to install can bring high economic benefits, very popular in the field of highway construction.

We can manufacture a variety of panels to meet the needs of customers, you can also provide the real objects of the required drawings or profiles, and then we will manufacture the corresponding panels for you.

technical parameter of Highway guardrail forming machine production line

No. Item parameter
1 Machine size 16600*1850*1650mm
2 Machine weight 15000kg
3 Machine power 30kw
4 Hydraulic engine 15kw
5 Roll speed 0-10M/Min
6 Roll stations 17
7 Roller material GCr15
8 Effective width 310mm
9 Feeding width 475mm
10 Voltage 380V 50Hz 3PH/Customized
11 Material thickness 3.0mm/Customized
12 Control System Schneider/Delta/Customized

3 Phase Plc 350h Beam Highway Guardrail Forming Machine3 Phase Plc 350h Beam Highway Guardrail Forming Machine
