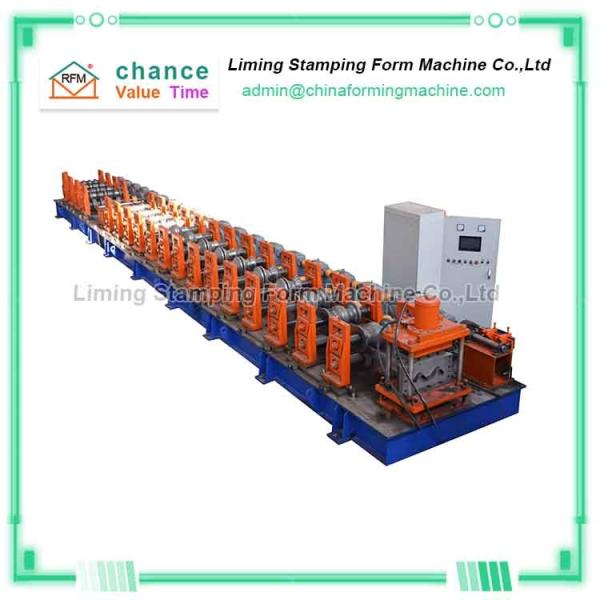

Anti Collision 2.5mm Highway Guardrail Roll Forming Machine 12m/Min
Anti Collision 2.5mm Highway Guardrail Roll Forming Machine 12m/Min
Specifications
Brand Name :
LIMING
Model Number :
LM-highway 2
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Warranty :
2 Years
Weight :
8 Ton
Voltage :
380V.50HZ.3Phase
Tickness of coil: :
2.5mm-3.5mm
Use :
Highway guardrail steel sheet
Type :
Highway guardrail crash barrier roll forming machine
Structure: :
350H beam
roduction Capacity: :
8-12m/min
Material of Roller: :
Gcr15, Quench HRC58-62 Plated Chrome
Way Of Drive: :
Gearbox driven
Description

High-precision anti-collision guardrail highway guardrail roll forming machine

The highway guardrail roll forming machine is an equipment used to produce highway guardrails.

The expressway guardrail roll forming machine is composed of an uncoiling device, a feeding device, a forming host, a shearing device, and an automatic material receiving device. The whole machine adopts a PLC control system and AV frequency converter for speed regulation, and can run fully automatically.

At the same time, we will also provide you with one-to-one video education guidance to ensure that you can understand and operate the highway guardrail roll forming machine proficiently.

The highway guardrail roll forming machine is also equipped with G12 molding wheels to ensure the hardness and toughness of the pressing wheels, thus helping you save time for maintenance and replacement of the molding wheels.

Liming Company can also design according to the product drawings you provide, and produce your own high-precision guardrail machine.

technical parameter of The highway guardrail roll forming machine

Item: Specification: Notes:
1.Information of raw material Suitable material: Galvanized coil
Width: 748 mm
Thickness: 2.5-3.5mm
Yield strength: Q235A HR
2.Production specification Detailed as the file
3.Power requirement: Main power: 22kw two sets

With inventor

(normal standard)
Cutter power:

15.5kw(pressure:25mpa)

3 pcs cutter
Speed of machine: 10-15meters/min

5.Hydraulic de-coiler:

 Loading: 5tons Main power:3kw
Inner diameter 508mm
Type: Automatic type

6.Machine specification:

 Structure: 400I beam

Transform method : Gearbox with shaft
Roll stations:

20 roll stations

(with 6pcs rollers for leveling diameter:80mm)
Splint thickness: 22mm
Diameter of shaft: 110mm,
Material of shaft: Forged 45# steel
Type of cutting: Saw cutting
Material of roller:

CR12 with heat treatment:

HRC58-62
Sizes of machine: 15.5*1.0*1.5meters
Material of punching mold: Cr12,hydraulic pre-punching
Sizes of chain: 2.0inch

Anti Collision 2.5mm Highway Guardrail Roll Forming Machine 12m/Min
