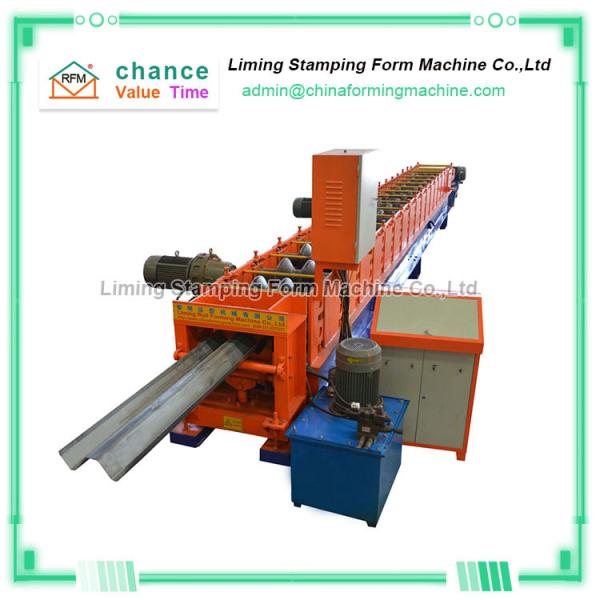

100kw Highway Guardrail Roll Forming Machine L6800mm
100kw Highway Guardrail Roll Forming Machine L6800mm
Specifications
Brand Name :
LIMING
Model Number :
LM-highway7
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Feeding width: :
OTHER
Material of blade: :
Cr12Mov,HRC58-62
Production Capacity: :
8m/min
After-sales Service Provided: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty :
2 years
Rolling thinckness: :
3-4mm
Dimension(L*W*H): :
6800(L)*1200(W)*1500mm(H)
Weight: :
10T
Use: :
Highway Guardrail
Description

Automatic Modification Highway Guardrail Roll Forming Machine

"Automatic modification highway guardrail roll forming machine" can produce two waves of highway guardrail panels and three waves of highway guardrail panels.

The finished product of the "Automatic modification highway guardrail roll forming machine" will be hot-dipped galvanized, which has the characteristics of anti-corrosion, anti-aging, anti-sun, high resistance, and low temperature. It can be used in outdoor environments for 10-25 years.

Processing flow of "Automatic modification highway guardrail roll forming machine"

Loading (load the steel coil into the internal support hole opener to achieve close support) → plate calibration (correctly guide the strip to the forming host through the feeding guide platform) → hydraulic punching → roll forming → after forming Cutting → The finished product supports the board.

The highway guardrail produced by the "Automatic modification highway guardrail roll forming machine"provides a visual and physical barrier between traffic and work areas.

The finished product of the "Automatic modification highway guardrail roll forming machine" is used to prevent accidents caused by cranes or other mobile equipment, aisles and special equipment in the dock area.

Technical parameters of Automatic Modification Highway Guardrail Roll Forming Machine

Raw material request: Q235Mpa hot rolled steel ,black steel or galvanized steel
Material thickness: 2.5mm-4mm
Whole line working speed: max15m/min( 3 pcs x4320mm per min
Total power: about 100kw
Input direction: left to right direction Finished Product information:
Product width: 350mm/460mm
Product height: 69mm
Product length: 4330mm
Product tolerance: 4320mm±1.5mm
Space requirement: Length 45mxWidth 5m xHeight 3m
