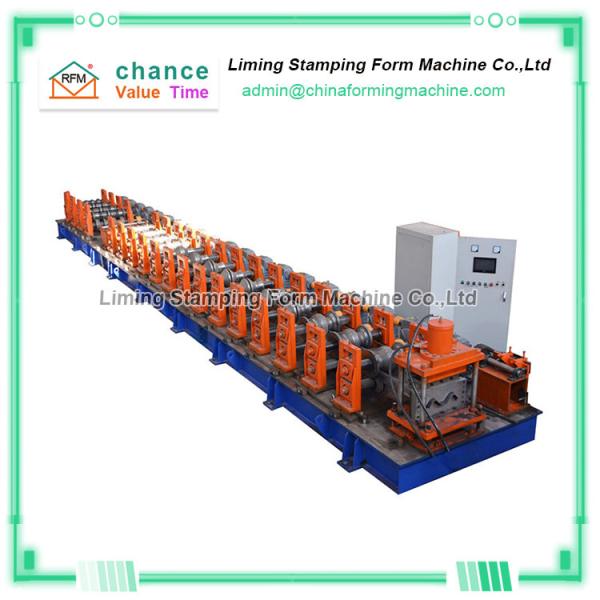

Steel Highway Guardrail Roll Forming Machine L4320mm
Steel Highway Guardrail Roll Forming Machine L4320mm
Specifications
Brand Name :
LIMING
Model Number :
LM-highway5
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type :
Crash barrier forming equipment
Tile Type: :
Steel
Production Capacity: :
8m/min
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty :
2 years
Rolling thinckness: :
3-4mm
Dimension(L*W*H): :
18.5*1.2*1.5m
Condition: :
New
Use: :
Highway Guardrail
Description

Stable Performance Highway Guardrail Roll Forming Machine

Specifications of "Stable performance highway guardrail roll forming machine"

The double-wave guardrail board produced by the "Stable performance highway guardrail roll forming machine": length 4320mm, board width 310mm, wave depth 85mm, and board thickness 3mm/4mm.

The three-wave guardrail board produced by the"Stable performance highway guardrail roll forming machine": length 4320mm, board width 506mm, wave depth 85mm, and board thickness 4mm.

The highway guardrail plate produced by the "Stable performance highway guardrail roll forming machine" is mainly used for the construction of safe and anti-collision projects such as highways, large parking lots, scenic spots, expressways, provincial highways, and rural roads.

According to the surface treatment, the road guardrail panels produced by the "Stable performance highway guardrail roll forming machine" are divided into hot-dip galvanized wave guardrail and galvanized sprayed plastic.

Technical parameters of Stable Performance Highway Guardrail Roll Forming Machine

Decoiler Loading capacity 5 or 10T
Leveling and punching Up 5 down 6 leveling shafts,diameter 80mm.
punching mold material Cr12.
Main machine 15 steps forming rollers,roller material Cr15 with quenching.
Control box Delta plc,frequency and Siemens for your choice.
Hydraulic pump for both punching and cutting.
Run out table Height adjustable
