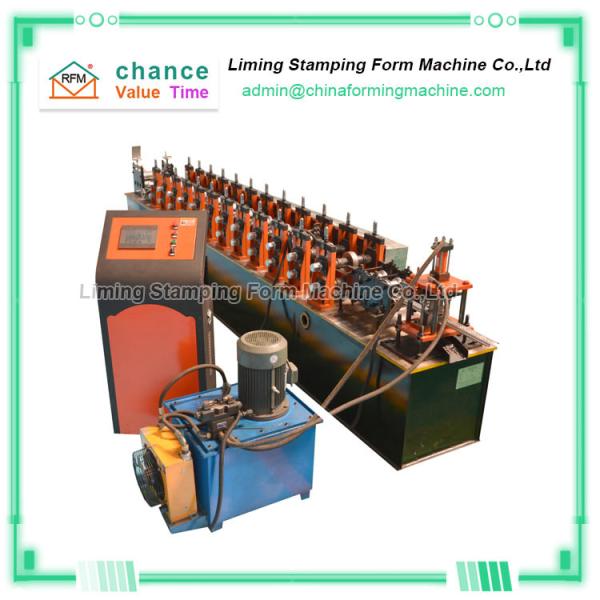

European Style Rolling Shutter Machine 12 Stands Length 4500mm
European Style Rolling Shutter Machine 12 Stands Length 4500mm
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD14
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Productivity :
shutter as the drawing
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning
Material specification :
Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Number of forming groups :
12 composition molds, 3 sets of straightening wheels
Equipment operation :
automatically plc
Thickness :
0.5 mm to 1.0mm
Hydraulic motor power(KW) :
5.5
Dimension(L*W*H) :
Length 4500mm* Width 600mm* Height 800mm
Forming roller station :
12 Stations
Description

Custom 125 European Style Roller Shutter Forming Machine

Features of customized 125 European style roller shutter forming machine

1. customized 125 European style roller shutter forming machine has the characteristics of low energy consumption.

2. The high efficiency characteristics of customized 125 European style roller shutter forming machine0

3. customized 125 European style roller shutter forming machine can reduce loss cost for you.

4. customized 125 European style roller shutter forming machine can customize the speed and speed to meet your production needs.

Technical Parameters Of Custom 125 European Style Roller Shutter Forming Machine

Productivity shutter as the drawing
Material specification Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness 0.5 mm to 1.0mm.
Main motor power 4.5 kw.
Hydraulic station power 3 kw.
Feeding width Depends on the model of profile.
Yield stress 235Mpa(33KSI) ~ 350Mpa
Roll forming Speed 12-15 m/minute.
Cutting Tolerance +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm)
Manual Uncoiler Max. Capacity: 3000kgs
Coil inner diameter 508mm/610mm.
Voltage 380v/50hz/3 phase
Numbers of stands 12 stands/stations/pairs for each roll forming system

European Style Rolling Shutter Machine 12 Stands Length 4500mm
