Automatic Fireproof Rolling Shutter Door Forming Machine
Automatic Fireproof Rolling Shutter Door Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Key Selling Points :
Easy to Operate
Production Capacity :
8-15M/Min
Condition :
New
Tile Type :
Steel
Voltage :
380V.50HZ.3Phase
Roller material :
45#steel Chrome Plated
Warranty :
2 Years
Dimension(L*W*H) :
5000*800*1200mm
Use :
door
Description

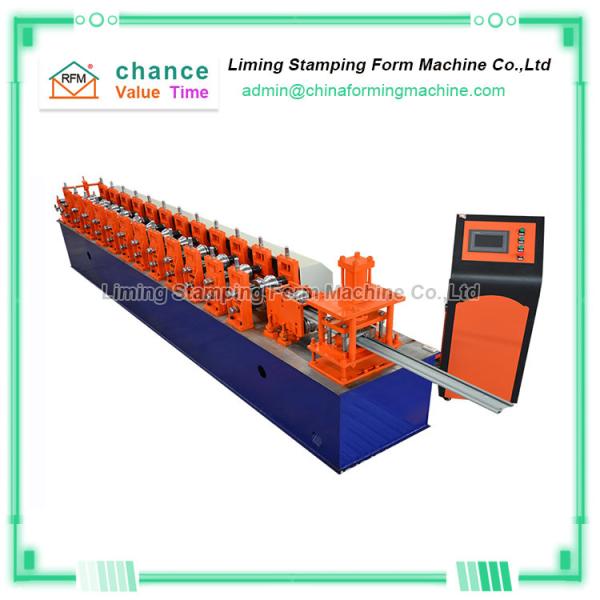

Automatic Fireproof Rolling Shutter Door Forming Machine

The automatic fireproof rolling shutter door forming machine is a kind of rolling door with considerable strength and rigidity. It uses galvanized steel plate as the material, with long service life, wind resistance, high strength, good rigidity, strong structure, etc.

Automatic Fireproof rolling shutter door forming machine with machine: guide rail machine with anti-wind hook inside to ensure that the curtain plate does not leave the guide rail in high winds. It has the functions of anti-typhoon, pry-proof, rain-proof, moisture-proof, noise-proof, cold-proof, heat-preservation, sand-proof, etc.

The automatic fireproof rolling shutter door forming machine is suitable for large-scale production plants and port warehouses in areas with high wind power.

Technical Parameters Of Automatic Fireproof Rolling Shutter Door Forming Machine

Suitable material Color steel sheet , galvanized steel sheet,
Main motor power 5.5 KW with Cycloidal reducer
Hydraulic station power 5.5KW(Lichao,Shanghai)
Hydraulic oil 36#,40#
Thickness of material 0.3mm~0.8mm
Diameter of principal axis Φ50mm
Material expand width 140-180mm
Electric tension 380V 3phase 50HZ or as the customer's requirements
Material of roller Cr12 steel quenched
Rolling galvanization thickness 0.05mm
Processing speed 15-20m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12Mov with quenched treatment
Kind of drive Gear driving

Automatic Fireproof Rolling Shutter Door Forming Machine
