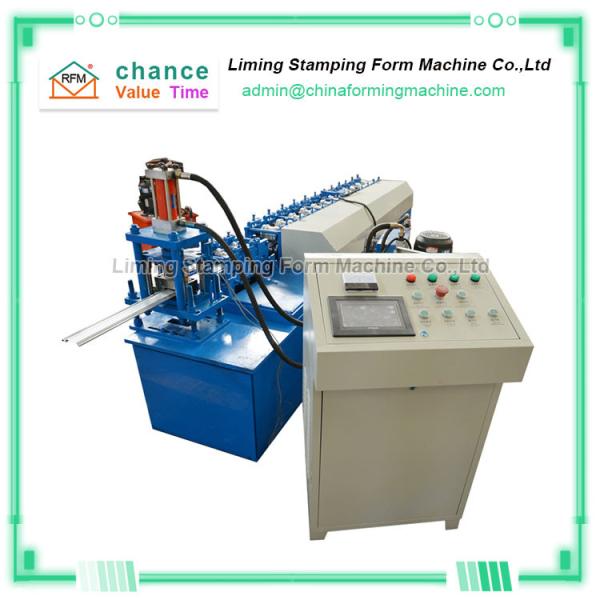

4kw Shutter Door Forming Machine , 30m/Min Rolling Shutter Manufacturing Machine
4kw Shutter Door Forming Machine , 30m/Min Rolling Shutter Manufacturing Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD35
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Tile Type :
Steel
Applicable Industries: :
Building Material Shops, Machinery Repair Shops
Warranty :
2 Years
Roll material :
45# High Grade Steel Chorme/Cr12/Cr15/45#
Thickness :
0.7-1.3mm
Voltage :
as the clients requirement
Control :
Delta
Description

Inorganic Cloth Fireproof Rolling Shutter Door Forming Machine

The inorganic fabric fireproof rolling shutter door produced by the inorganic cloth fireproof rolling shutter door forming machine is widely used in various fields such as food, chemical industry, textile, electronics, supermarket, refrigeration, logistics, storage, etc., which can meet the overall logistics and clean places.

The inorganic fabric fireproof rolling shutter door produced by the inorganic cloth fireproof rolling shutter door forming machine of the present invention has the advantages of energy saving, improving work efficiency and creating a better working environment.

Detailed description of the function of the feeding system of the inorganic cloth fireproof rolling shutter door forming machine

①The positioning plate of the inorganic cloth fireproof rolling shutter door forming machine: adjust the position of both ends to fit the width of the feed.

②Guiding frame of inorganic cloth fireproof rolling shutter door forming machine: play a role in assisting material roll transportation.

③Guide roller of inorganic cloth fireproof rolling shutter door forming machine: to ensure smooth material rolling process without folding.

Technical parameters of Inorganic Cloth Fireproof Rolling Shutter Door Forming Machine

1 Item. parameters.
2 Main motor power 4kw, 3 phase
3 Hydraulic motor power 4kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as required)
6 Control System PLC Delta Inverter/Panasonic
7 Main Frame 300mm H-Beam
8 Backboard Thickness 14mm
9 Chain Size 20mm
10 Feeding Material GI/PPGI/Aluminum
11 Feeding Thickness 0.3-1.2mm
12 Productivity 20-30m/min
13 Roll Station 12-16 steps
14 Roller Diameter 50mm
15 Roller material 45# steel, heat treatment
16 Cutter material Cr12 , quenched
17 Cr-Plating Size 0.05mm
18 Overall Size 4500×800×1000mm
19 Total Weight 3.2T
