Construction Building Material Rolling Shutter Door Forming Machine
Construction Building Material Rolling Shutter Door Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD8
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Raw material  :
Galvanized coils yield strength ≤G250MPa
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning
shaft material :
45#steel-high quality steel, diameter 70 mm
Voltage :
380V.50HZ.3Phase
thickness :
0.7-2.0mm
Warranty :
24 months
Dimension(L*W*H) :
6500mm*800mm*1200mm(depends on final design)
Drving Way :
Gearbox
Description

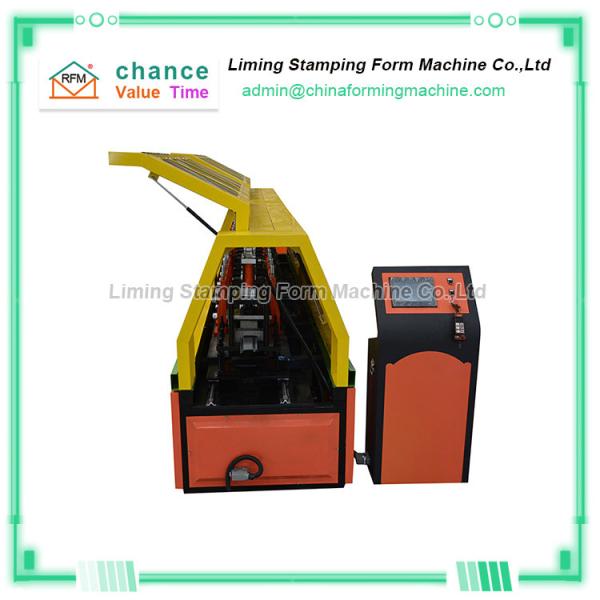

Construction Building Material Rolling Shutter Door Forming Machine

The construction building material rolling shutter door forming machine is composed of a feeding frame, a forming host and a hydraulic fixed-length punching machine.

The construction building material rolling shutter door forming machine does not waste, does not produce chips, saves material costs, and has high production efficiency.

The cutting system of the construction building material rolling shutter door forming machine: adopts advanced hydraulic transmission, automatically cuts after forming, no deformation, no waste, and high safety factor.

Technical Parameters Of Construction Building Material Rolling Shutter Door Forming Machine

Description offered specification
Material thickness 0.7-2.0mm
Raw material Galvanized coils yield strength ≤G250MPa
Forming speed 8-15m/min
Decoiler 3 Ton passive decoiler
Material of main shaft 45# high quality steel
Levelling device 7 roller levelling including 3 top rollers and 4 bottom rollers
Cutting hydraulic cutting; quenching HRC58-62
Motor power of hydraulic station 4kw
Hydraulic station pressurre 12Mpa
Tolerance 6m+-1.5mm
Machine Frame H Beam Steel

Construction Building Material Rolling Shutter Door Forming Machine
