Hollow Ventilated Rolling Shutter Machine 0.8mm Thickness
Hollow Ventilated Rolling Shutter Machine 0.8mm Thickness
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD34
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Tile Type :
Steel
Applicable Industries: :
Building Material Shops, Machinery Repair Shops
Cutting blade material: :
Cr 12 High Grade Steel
Warranty :
24 Months
Roll material :
45# High Grade Steel Chorme/Cr12/Cr15/45#
Thickness :
0.7-1.2mm
Voltage :
as the clients requirement
Control :
Delta
Description

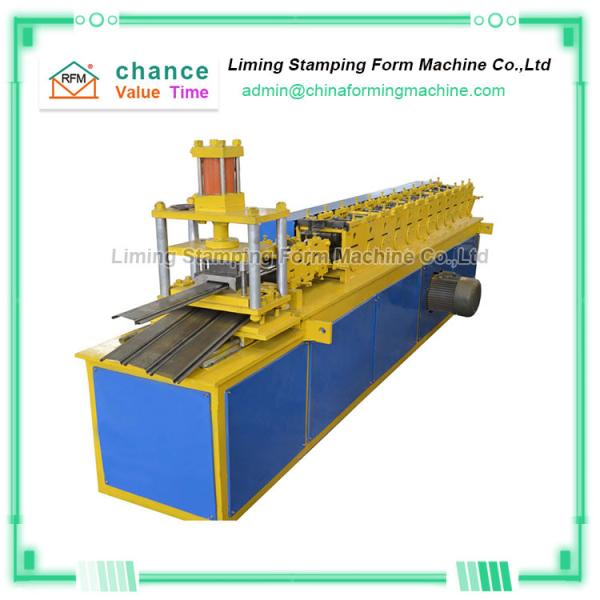

Hollow Ventilated Rolling Shutter Door Forming Machine

The rolling shutters produced by the hollow ventilated rolling shutter door forming machine

are mainly used for metal rolling shutters of large and small industrial buildings, warehouses, stadiums, freight logistics centers, large shopping malls, supermarkets, garages, squares and personal residences.

A detailed description of the electric control system of the hollow ventilated rolling shutter door forming machine

①PL C of the hollow ventilated rolling shutter door forming machine: adopts Delta / Schneider high-precision PLC electronic control system.

②The inverter of the hollow ventilated rolling shutter door forming machine: Delta / Schneider heavy-duty inverter, which runs efficiently and stably.

③Control components of hollow ventilated rolling shutter door forming machine: Schneider Electric, with long service life and low failure rate.

④Touch screen operation of hollow ventilated rolling shutter door forming machine: input production data and automatically complete production requirements.

Technical parameters of Hollow Ventilated Rolling Shutter Door Forming Machine

1 Suitable to process Color steel plate, galvanized sheet,
aluminum coils and etc.
2 Width of the feeding material as the drawing
3 Roller station 12 rows
4 Thickness of feeding material 0.3-0.8mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel with chromn on the surface
7 Diameter of shaft 48mm
8 Voltage 380V 50Hz 3phases
9 Motor power 3+3 kw
10 Size 3500*800*1400mm
11 Weight About 1.8 T

Hollow Ventilated Rolling Shutter Machine 0.8mm Thickness
