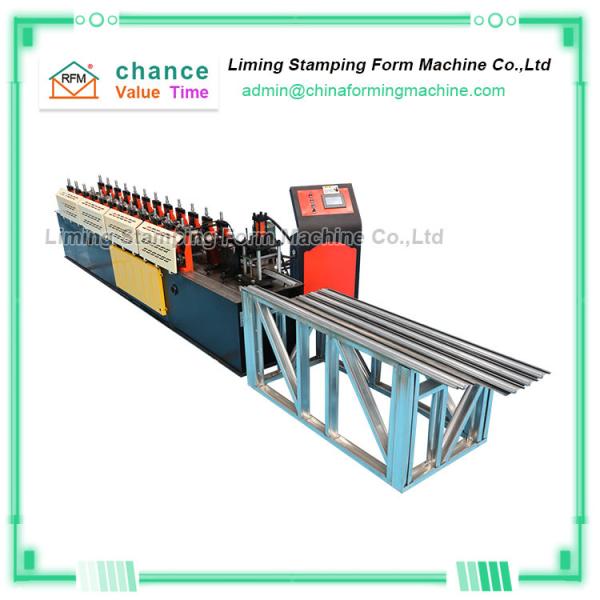

125 Stainless Steel Rolling Shutter Machine 18 M/Min
125 Stainless Steel Rolling Shutter Machine 18 M/Min
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD12
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Rolling Speed :
18 m/min
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning
Type :
Color steel sheet; galvanized sheet; aluminum steel
Number of forming groups :
12 composition molds, 3 sets of straightening wheels
Yield strength(Mpa) :
230-300
Material Thickness :
1.5-2mm
Hydraulic motor power(KW) :
5.5
Dimension(L*W*H) :
Length 4500mm* Width 600mm* Height 800mm
Forming roller station :
12 Stations
Description

125 Stainless Steel Rolling Shutter Forming Machine

The forming wheel of 125 stainless steel rolling shutter forming machine:

The use of high-spec steel cast wheels has the characteristics of long-lasting wear resistance and long life.

Hydraulic shearing system of 125 stainless steel rolling shutter forming machine:

When hydraulic shearing is used, the force is more even, and it can ensure the gloss of the product after shearing without burrs.

Computer control system of 125 stainless steel rolling shutter forming machine:

Choose between automatic and manual mode, touch screen operation interface, convenient and easy to operate.

The finished product of 125 stainless steel rolling shutter forming machine:

The slats and slats have been perfectly matched to prevent decoupling.

Technical Parameters Of 125 Stainless Steel Rolling Shutter Forming Machine

Item Parameters
Material Type Color steel sheet; galvanized sheet; aluminum steel
Thickness(mm) 0.4-0.7
Yield strength(Mpa) 230-300
Forming speed(m/min) 10-15
Roller material 45# sheet with chrome plated
Roller driven type Chain transmission
Control type PLC
Operation type Touch screen +button
Hydraulic system pressure(Mpa) 12
Hydraulic motor power(KW) 5.5
Main motor power(KW) 4
Total power(KW) 9.5
Total weight(Kg) About 10000

125 Stainless Steel Rolling Shutter Machine 18 M/Min
