Metal Rolling Shutter Machine Cr12 Mov Roller CE Certification
Metal Rolling Shutter Machine Cr12 Mov Roller CE Certification
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD25
Certification :
CE、BV、ISO
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Tile Type :
Colored Glaze Steel
Production Capacity :
8-15m/min
Warranty :
2 Years
Voltage :
380V 50Hz 3phases
Thickness :
0.3-1.2 mm
Machine weigh :
4T
Roller material :
Cr12 Mov
Dimension(L*W*H) :
6m*1.2m*1.4m
Description

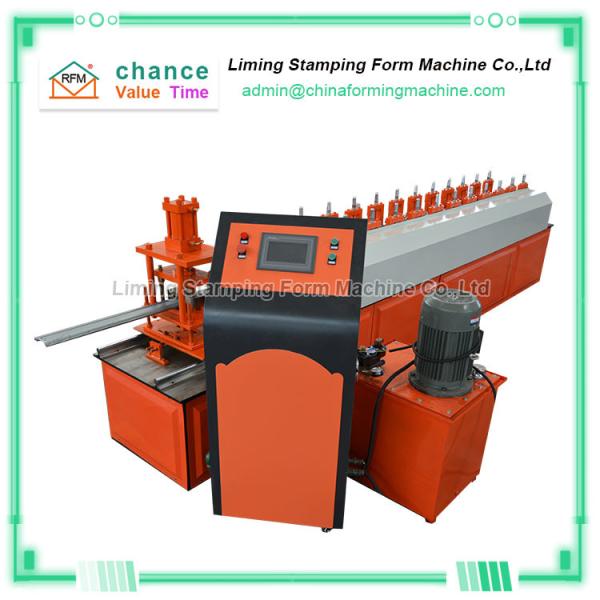

Galvanized Steel Metal Shutter Door Roll Forming Machine

The galvanized steel metal shutter door roll forming machine is fully automatic.

The galvanized steel metal shutter door roll forming machine can be produced by computer setting, as long as the material is imported into the forming group. The computer setting includes two parts, one is the machine parameter setting, and the other is the production-based parameter setting, including processing volume, product length, etc. The galvanized steel metal shutter door roll forming machine has simple operation and high production efficiency.

The processed products of the blinds of the galvanized steel metal shutter door roll forming machine should be confirmed according to the actual samples or drawings provided by the user. Different door curtains need to design different roller shutter doors.

The shutter door installation produced by the g galvanized steel metal shutter door roll forming machine has simple maintenance, maintenance-free design and very simple installation. Can be installed according to conventional installation experience.

Technical parameters of Galvanized Steel Metal Shutter Door Roll Forming Machine

Material specification Galvanized and pre-painted galvanized steel.
Thickness 0.3 mm to 0.7mm.
Main motor power 5.5 kw.
Hydraulic station power 3 kw.
Feeding width 124mm.
Cover width 60mm.
Yield stress 235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 12 m/minute.
Cutting Tolerance ±2mm
Manual Uncoiler Max. Capacity: 5000kgs.
Voltage As per customer’s request.
Numbers of stands 11 stands/stations/pairs.
Roller material 5# steel polished and coated with chrome HRC55-60°
Shaft diameter 70mm
Shaft diameter high grade No.45 steel after treatment
Type of cutting Roll-formed and length-set profile cutting.
