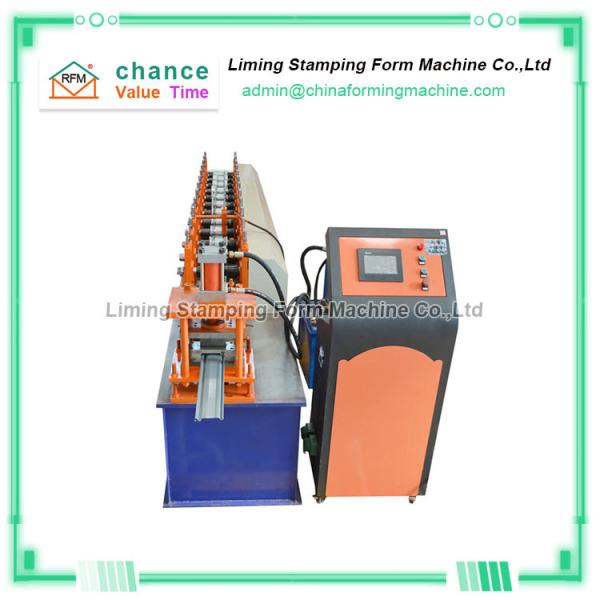

7.5KW Rolling Shutter Door Slats Roll Forming Machine ISO certificate
7.5KW Rolling Shutter Door Slats Roll Forming Machine ISO certificate
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD19
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Tile Type :
Colored Steel
Use :
door
Production Capacity :
8-15m/min
Number of forming steps :
15steps
Equipment operation :
automatically plc
Thickness :
0.7-1.2 mm
Machine weigh :
5t
Material of shafts :
45# steel adjustable treatment. Outer diameter 42 mm
Forming roller station :
12 Stations
Description

Automatic Measuring Punching And Shearing Roller Shutter Forming Machine

In response to the growing demand for products at home and abroad, our company has designed and improved various rolling door forming machines, including a automatic measuring punching and shearing roller shutter forming machines.

The automatic measuring punching and shearing roller shutter forming machine adopts a cut-to-length device to realize independent operation by one person, with high efficiency and accurate discharge. Reduce labor costs.

The automatic measuring punching and shearing roller shutter forming machine uses all-copper motors as the power source of the pumping station to ensure that there will be no overload in long-term use and provide protection for your production.

The automatic measuring punching and shearing roller shutter forming machine adopts computer PLC single-point control, and the inverter assists the PLC to make the equipment punching and cutting error value ≤ 1mm. Make your roller shutter finished production more standardized.

The automatic measuring punching and shearing roller shutter forming machine implements quality monitoring throughout the production process, you can rest assured to choose.

Technical parameters of Automatic Measuring Punching And Shearing Roller Shutter Forming Machine

SPECIFICATIONS
Speed: 8-15/min
Voltage: 380V
Power: 7.5KW
Machine weight: 5t
Roller shutter dimension: Customize according to customers' requirements

Configuration list of Automatic Measuring Punching And Shearing Roller Shutter Forming Machine

5 ton Manual decoiler 1 set
Main roll forming machine 1 set
Hydraulic pump system 1 set
PLC control system 1 set
Receiving Table 1 set
Spare parts 1 set
