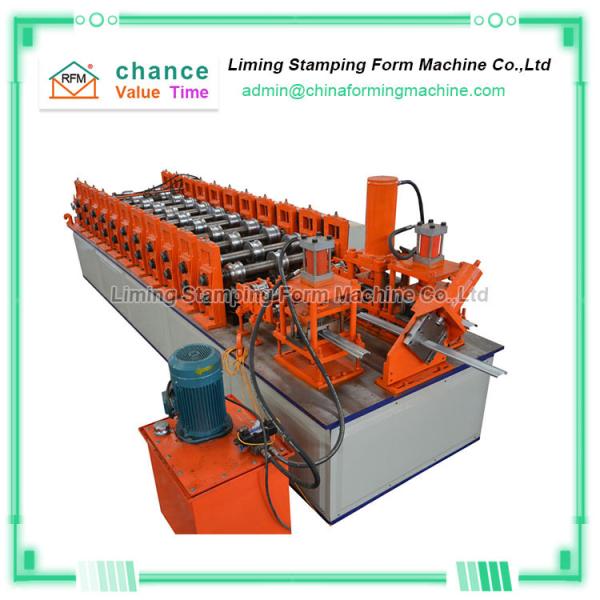

45 Chrome Steel Rolling Shutter Machine 6x1.2x1.4m
45 Chrome Steel Rolling Shutter Machine 6x1.2x1.4m
Specifications
Brand Name :
LIMING
Model Number :
LM-RSD26
Certification :
CE、BV、ISO
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Color :
Client's Request
Production Capacity :
8-15m/min
Warranty :
2 Years
Voltage :
380V 50Hz 3phases
Thickness :
0.3-1.2 mm
Machine weigh :
5T
Shaft material :
45# High Grade Steel
Dimension(L*W*H) :
6m*1.2m*1.4m
Description

Can Produce 3 Different Sizes Of Rolling Shutter Forming Machine

Liming Stamping Form Machine Co., Ltd. independently researched and designed and Can produce 3 different sizes of rolling shutter forming machine. With the rapid economic development, the demand for construction and industrial doors is increasing. There is a special need to produce roller shutters of different sizes. Because it Can produce 3 different sizes of rolling shutter forming machine, it has good insulation effect, seamless connection, light weight, and beautiful appearance, which is recognized by the majority of users.

The market is getting bigger and bigger. According to market demand, our company has specially developed and produced Can produce 3 different sizes of rolling shutter forming machine.

The main forming part of the Can produce 3 different sizes of rolling shutter forming machine:

1. Feeding: Simple double-roll feeding and leveling treatment can make the strip smooth and accurately enter the forming roller table.

2. Forming roller table: The roller adopts bearing steel, which undergoes five procedures of cutting, lathe shaping, quenching, finishing, and chrome plating. Each procedure is strictly controlled to ensure the accuracy and service life of the roller.

Technical parameters of Can Produce 3 Different Sizes Of Rolling Shutter Forming Machine

Item Specification
Type Pre-painted steel coil & galvanized coils
Material Thickness 0.4-0.7mm
Yield strength 235-345Mpa
Roller material 45#Chrome steel
Forming speed 20-25m/min
Speed adjusting mode AC Frequency
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power 4.0KW
Hydraulic station motor power 2.2 KW

45 Chrome Steel Rolling Shutter Machine 6x1.2x1.4m
