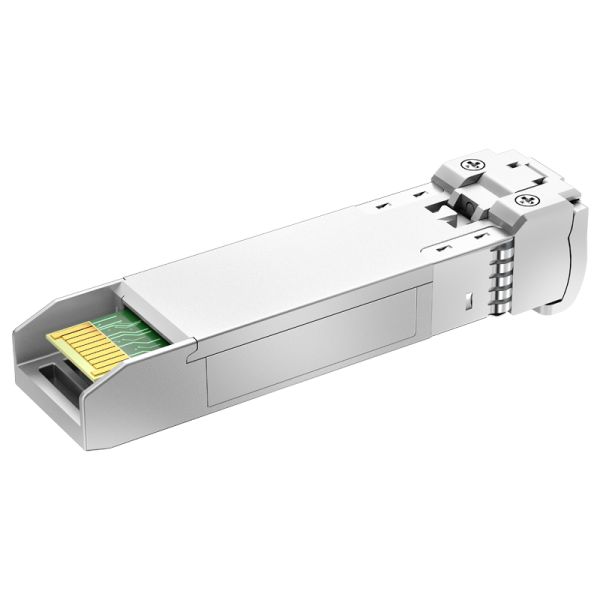

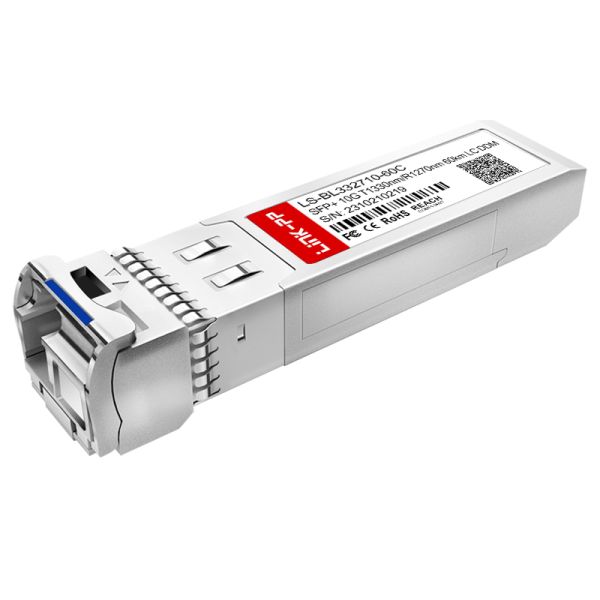

SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km
SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km
SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km
SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km
Specifications
Brand Name :
LINK-PP
Model Number :
SFP-10G32-BX60
Certification :
SFF-8431, SFF-8432, SFF-8472, IEEE 802.3ae
Place of Origin :
China
MOQ :
5pcs
Price :
US$14.90
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5KK/Month
Delivery Time :
300 in Warehouse, Get it Within 3 Days
Packaging Details :
ESD anti-static bag
Part Number :
SFP-10G32-BX60
Compatible :
LS-BL332710-60C
Form Factor :
SFP+
Series :
10GBASE-BX
Data Rate :
10Gbps
Wavelength :
1330nm-TX/1270nm-RX
Transmission Distance :
60km
Connector :
Simplex LC
Transmission Mode :
Bi-Directional (BiDi), Single Fiber
Transmitter Type :
DFB Laser
DDM/DOM Support :
Yes
Power Supply Voltage :
+3.3 V
Power Dissipation :
< 1.4W
Operating Temperature :
0°C to 70°C (Commercial)
Hot-Pluggable :
Yes, SFP+ MSA compliant
Standards Compliance :
IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472
Description

10GBASE-BX60 SFP+ Transceiver Module Overview

The SFP-10G32-BX60 is a BiDi 10G SFP+ transceiver designed for single-fiber, long-reach optical communication up to 60 km. Operating over a 1310 nm TX / 1550 nm RX wavelength pair, it supports 10.3125 Gb/s data rates for applications such as enterprise networks, telecom backhaul, and FTTX.

This hot-pluggable module features low power consumption, DDM/DOM support, and is fully compliant with SFP+ MSA, IEEE 802.3ae, and RoHS standards, ensuring reliable performance in dense, high-bandwidth network environments.

Key Features of SFP-10G32-BX60 BiDi SFP+​:

  1. Operating data rate: Up to 11.3 Gbps
  2. Two available wavelength types:
    • Type A: 1270 nm DFB Transmitter / 1330 nm Receiver
    • Type B: 1330 nm DFB Transmitter / 1270 nm Receiver
  3. Power supply: Single 3.3 V with TTL logic interface
  4. Connector type: LC
  5. Hot-pluggable form factor
  6. Power dissipation: < 1.4 W
  7. Built-in digital diagnostics: Optical power monitoring (DDM/DOM)
  8. Operating temperature: Commercial range 0 °C to +70 °C
  9. Standards compliance:
  • SFP+ MSA (SFF-8431)
  • IEEE 802.3ae (10GBASE-LR)
  • SFF-8472 Rev 12

SFP-10G32-BX60 — Technical Specifications

I. General Specifications

Parameter Symbol Min Typ Max Unit
Bit Rate BR 2.5 10.3 — Gb/s
Max. Supported Link Length Lmax — — 60

km

II. Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Storage Temperature Ts -40 85 °C
Supply Voltage Vcc -0.5 3.6 V

III. Electrical Characteristics

Parameter Symbol Min Typ Max Unit Ref
Power Supply Voltage Vcc 3.14 3.3 3.45 V —
Power Supply Current Icc — — 430 mA —
Surge Current Isurge — — +30 mA —
Transmitter CML Inputs (Differential) Vin 150 — 1200 mVpp AC coupled
Input Impedance (Differential) Zin 85 100 115 Ω Rin>100kΩ @ DC
Tx_DISABLE Input Voltage – High — 2 — Vcc+0.3 V —
Tx_DISABLE Input Voltage – Low — 0 — 0.8 V —
Tx_FAULT Output Voltage – High — 2 — Vcc+0.3 V Io=400µA
Tx_FAULT Output Voltage – Low — 0 — 0.5 V Io=-4.0mA
Receiver CML Outputs (Differential) Vout 350 — 700 mVpp AC coupled
Output Impedance (Differential) Zout 85 100 115 Ω —
Rx_LOS Output Voltage – High — 2 — Vcc+0.3 V Io=400µA
Rx_LOS Output Voltage – Low — 0 — 0.8 V Io=-4.0mA
MOD_DEF(2:0) VOH — 2.5 — — V —
MOD_DEF(2:0) VOL — 0 — 0.5 V —

IV. Optical Characteristics

Parameter Symbol Min Typ Max Unit
Power Budget — — 21 — dB
Data Rate — 0.6 10.3125 11.3 Gb/s
Transmitter (Tx)
Centre Wavelength λc 1260 1270 1280 nm
Spectral Width (-20Db) Δλ — — 1 nm
Side Mode Suppression Ratio SMSR 30 — — dB
Average Output Power Pout, AVG 1 — 6 dBm
Extinction Ratio ER 3.5 — — dB
Average Power of the OFF Transmitter — — — -30 dB
RIN — — — -128 dB/Hz
TX Disable Assert Time toff — — 10 µs
Receiver (Rx)
Centre Wavelength λc 1320 — 1340 nm
Receiver Sensitivity PIN — — -20 dBm
Receiver Overload PMAX — — -6 dBm
LOS De-Assert LOSD — — -21 dBm
LOS Assert LOSA — — -30 dBm

V. Optical Characteristics (1330nm DFB & PIN/TIA)

Parameter Symbol Min Typ Max Unit
Power Budget — — 21 — dB
Data Rate — 2.5 10.3 — Gb/s
Transmitter (Tx)
Centre Wavelength λc 1320 1330 1340 nm
Spectral Width (-20Db) Δλ — — 1 nm
Side Mode Suppression Ratio SMSR 30 — — dB
Average Output Power Pout,AVG 1 — 6 dBm
Extinction Ratio ER 3.5 — — dB
Average Power of OFF Transmitter — — — -30 dB
RIN — — — -128 dB/Hz
TX Disable Assert Time toff — — 10 µs
Receiver (Rx)
Centre Wavelength λc 1260 — 1280 nm
Receiver Sensitivity PIN — — -20 dBm
Receiver Overload PMAX — — -6 dBm
LOS De-Assert LOSD — — -21 dBm
LOS Assert LOSA — — -30 dBm

Notes:

1. Output is coupled into a 9/125um SMF.

2. Measured with worst ER, BER less than 1E-12, and PRBS 231-1 at 10.3125Gbps.

10G BiDi SFP+ Transceiver Module SFP-10G32-BX60 — Datasheet:

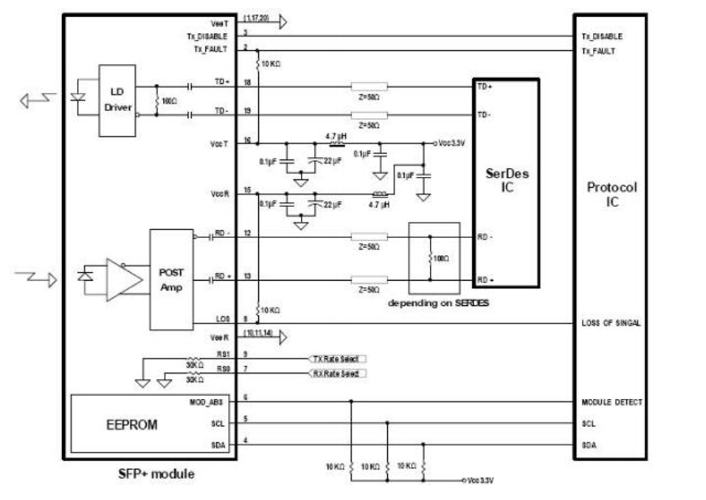

Recommend Circuit Schematic

SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km

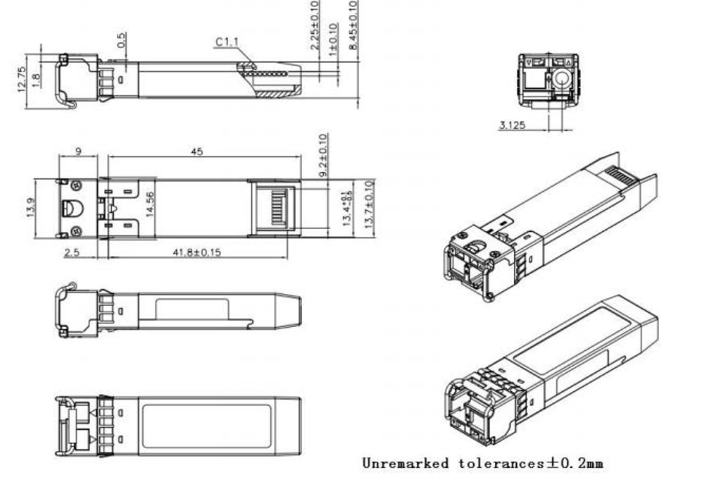

Mechanical Specifications

SFP-10G32-BX60 BiDi SFP+ Transceiver 1330nmTX/1270nmRX 60km
