Avago AFCT-701SDZ Description:

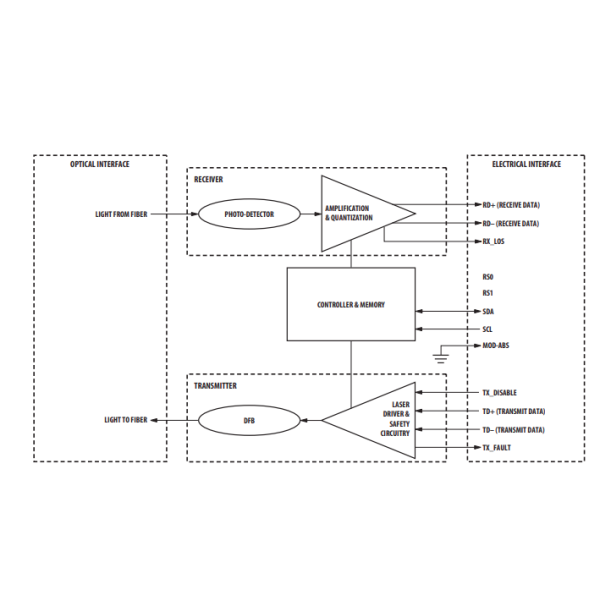

The Avago AFCT-701SDZ is a high-performance 10Gb Ethernet SFP+ transceiver, designed to meet the 10GBASE-LR standard. It uses 1310nm DFB laser and PIN detector technology to deliver reliable long-range connectivity. Engineered for high-density applications, this transceiver adheres to enhanced SFP+ specifications developed by the SFF Committee. The AFCT-701SDZ supports low power consumption, offering 850mW typical dissipation, and features a digital diagnostic interface for real-time monitoring and predictive failure identification, ensuring consistent system uptime and performance.

Specifications

• Optical Interface: Compliant with IEEE 802.3ae 10GBASE-LR standards
• Electrical Interface: Adheres to SFF 8431 Specifications for Enhanced 8.5 and 10-Gigabit Small Form Factor Pluggable Modules (SFP+)
• Management Interface: Compliant with SFF 8431 and SFF 8472 Diagnostic Monitoring Interface for Optical Transceivers
• Mechanical Interface: Conforms to SFF 8432 Improved Pluggable Form Factor (IPF)
• Optical Connector: LC Duplex interface, compliant with ANSI TIA/EA 604-10 (FOCIS 10A)
• RoHS Compliant: Meets EU and China restrictions on hazardous substances
• Laser Safety: Class 1 Eye Safe according to IEC 60825-1/CDRH standards

Key Features of AFCT-701SDZ SFP+ LR:

1. 1310nm DFB Source and Optical Subassembly for stable and reliable transmission
2. PIN Detector and Receiver Optical Subassembly for high-quality signal detection
3. Low Power Consumption: Typical power dissipation is 850mW, ensuring energy-efficient performance
4. Full Digital Diagnostic Management Interface to monitor the transceiver’s health and performance
5. SFP+ Package Design optimized for high port-density applications with excellent EMI (Electromagnetic Interference) performance, meeting Class B limits
6. Predictive Failure Identification for proactive link monitoring and system uptime maintenance

Optical Specifications:

General Specification Considerations (Notes)

1. IEEE 802.3ae Clause 52 compliant.

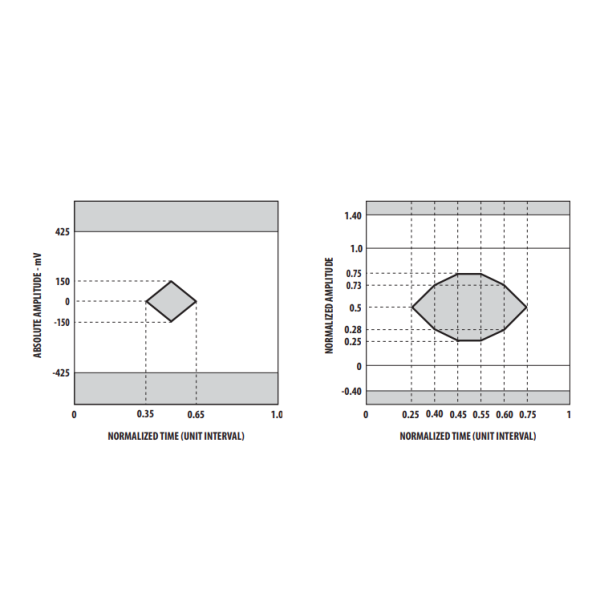

2. Vertical eye closure and stressed eye jitter are test conditions for stressed sensitivity (OMA) measurements.
3. Loss of Signal (LOS) detection responds only to OMA; the indicator will respond unpredictably with unmodulated optical power.

AFCT-701SDZ Data Sheet:
