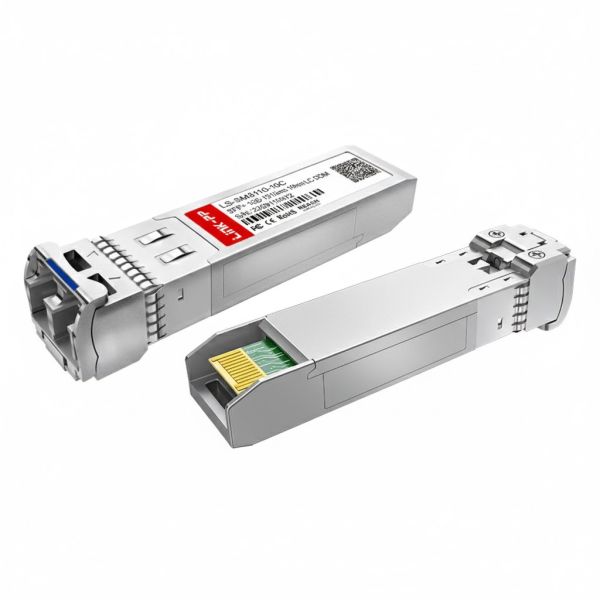

HPE J9151A 10G SFP+ LR Transceiver 1310nm 10km Single-Mode Fiber
HPE J9151A 10G SFP+ LR Transceiver 1310nm 10km Single-Mode Fiber
HPE J9151A 10G SFP+ LR Transceiver 1310nm 10km Single-Mode Fiber
HPE J9151A 10G SFP+ LR Transceiver 1310nm 10km Single-Mode Fiber
Specifications
Place of Origin :
Guangdong,China
Brand Name :
LINK-PP
Certification :
UL,RoHS,Reach,ISO
Model Number :
J9151A
MOQ :
400/2000/10K/25K
Price :
$3.2-$5
Packaging Details :
T&R
Delivery Time :
In Stock Ship Within 3 Days
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Part Number :
J9151A
Form Factor :
SFP+
Max Data Rate :
10.3125Gbps
Wavelength :
1310nm
Max Cable Distance :
10km
Connector :
Duplex LC
TX Power :
-8.2~0.5dBm
Receiver Sensitivity :
<-14.4dBm
Power Consumption :
≤1W
Operating Temperature :
0 to 70°C (32 to 158°F)
Description

The HPE J9151A (HP X132 10G SFP+ LC LR Transceiver) is a high-performance 10-Gigabit SFP+ optical module designed for enterprise networks, data centers, service provider backbones, and baseband/remote radio head applications. It supports the 10GBASE-LR standard and delivers up to 10 km transmission over single-mode fiber (SMF) with low power consumption and full DDM/DOM functionality.

The HPE J9151A is designed for HPE ProCurve & Aruba Networks switches, supporting any device with standard 10G SFP+ LR interfaces.

Key Features:

  • 10G SFP+ LR Transceiver — compliant with IEEE 802.3ae 10GBASE-LR
  • Up to 10 km transmission over 9/125 µm single-mode fiber
  • 1310 nm DFB transmitter with PIN receiver
  • LC duplex interface, full-duplex operation
  • Digital Diagnostics Monitoring (DDM/DOM), compliant with SFF-8472
  • Low power consumption ≤1 W
  • Fully compliant with SFF-8431, SFF-8432
  • Ideal for enterprise LANs, data centers, telecom access, RRU/BBU links

Technical Specifications:

Feature Description
Brand HPE (Hewlett Packard Enterprise)
Part Number J9151A
Product Name HP X132 10G SFP+ LC LR Transceiver
Form Factor SFP+
Data Rate 10.3125 Gbps
Standard 10GBASE-LR (IEEE 802.3ae)
Wavelength 1310 nm
Interface LC Duplex
Fiber Type Single-Mode Fiber (SMF)

Optical Specifications:

Parameter Value
Maximum Distance 10 km
Transmitter Type DFB Laser
Receiver Type PIN
TX Power -8.2 to 0.5 dBm
Receiver Sensitivity < -14.4 dBm
Power Budget 6.2 dB
Receiver Overload 0.5 dBm
Extinction Ratio > 3.5 dB

Cable Requirements:

Specification Details
Fiber Type 9/125 µm Single-Mode Fiber
Compliance ITU-T G.652 / ISO/IEC 793-2 Type B1
Supported Cable Length 2 m to 10 km

Electrical Specifications:

Parameter Value
Power Consumption (Typical) 0.9 W
Power Consumption (Maximum) 1.0 W
Digital Diagnostics Supported (DDM/DOM, SFF-8472)

Physical Specifications:

Item Value
Dimensions (D × W × H) 5.57 × 1.38 × 1.19 cm (2.19 × 0.54 × 0.47 in)
Weight 0.02 kg (0.04 lb)
Form Factor SFP+ Hot-Pluggable

Environmental Specifications:

Condition Range
Operating Temperature 0°C to 70°C (Commercial Grade)
Storage Temperature -40°C to 85°C
Humidity 0% to 85%, non-condensing
Operating Altitude Up to 3,000 m (10,000 ft)
