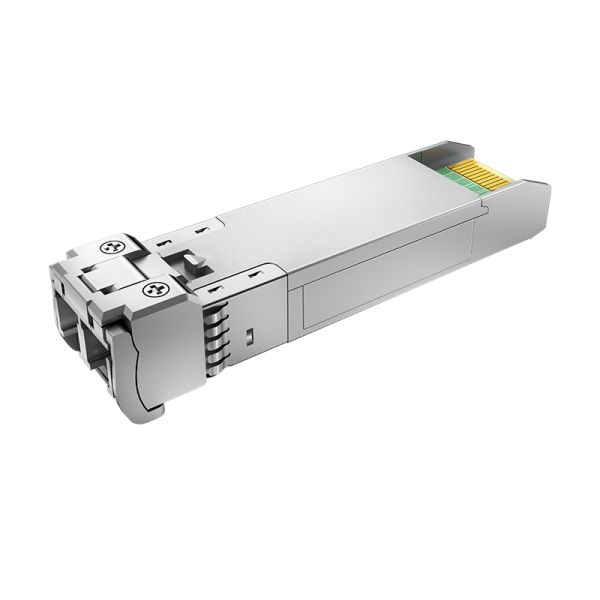

Avaya AA1403011-E6 SFP+ 10GBASE-LR Up To 10km Over SMF
Avaya AA1403011-E6 SFP+ 10GBASE-LR Up To 10km Over SMF
Avaya AA1403011-E6 SFP+ 10GBASE-LR Up To 10km Over SMF
Avaya AA1403011-E6 SFP+ 10GBASE-LR Up To 10km Over SMF
Specifications
Brand Name :
LINK-PP
Model Number :
AA1403011-E6
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
10 PCS
Price :
$3.2-$5
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
5KK/Month
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
T&R
Part Number :
AA1403011-E6
Data Rate :
10Gbps (10GBASE-LR)
Wavelength :
1310nm
Max Distance :
10km (6.2miles)
Fiber Type :
Single-Mode Fiber (SMF)
Hot-Swappable :
Yes
Description


AA1403011-E6 SFP+ Transceiver Overview:

The AA1403011-E6 is a 10 Gigabit Small Form-Factor Pluggable Plus (SFP+) transceiver module designed for high-speed data transmission. It is engineered to support 10GBASE-LR Ethernet links up to 10 kilometers over Single-Mode Fiber (SMF). This module is fully compliant with the SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae standards.

General Specifications:

Parameter Description
Form Factor SFP+
Data Rate Up to 10.3 Gbps
Application Standard 10GBASE-LR / 10GBASE-LW
Wavelength 1310 nm
Maximum Distance 10 km (SMF)
Fiber Type Single-Mode Fiber (9/125 µm)
Connector Type Duplex LC
Digital Diagnostics Yes (DDM/DOM per SFF-8472)
Operating Voltage 3.3 V
Operating Temperature 0°C to +70°C (commercial), extended range options available

Optical Performance:

Parameter Typical Specification
Transmitter Type DFB Laser
TX Output Power -8.0 dBm to +0.5 dBm
Receiver Type PIN Photodiode
Receiver Sensitivity ≤ -14.0 dBm
Receiver Overload ≥ +0.5 dBm
Optical Budget 6 dB
