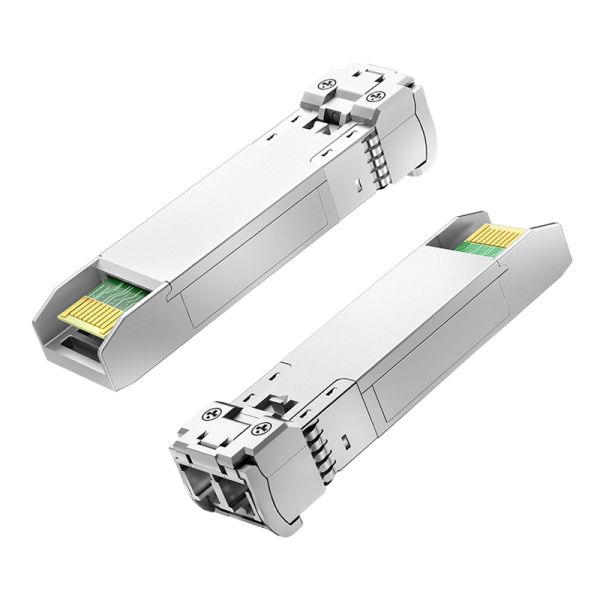

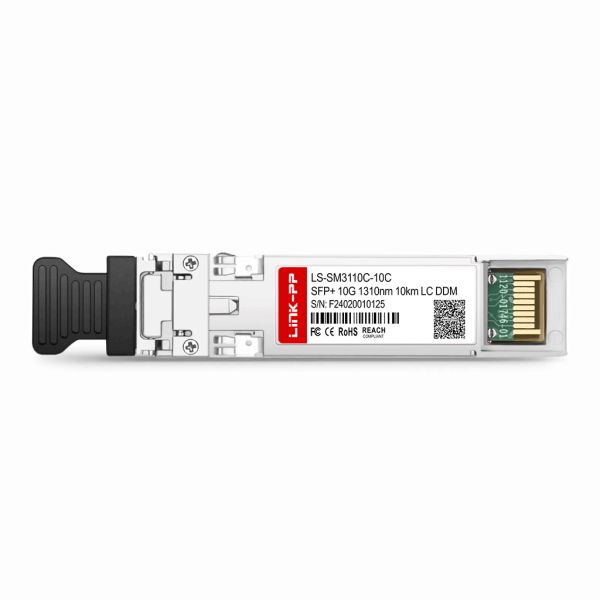

Overview of Extreme 10302 LR SFP+ Module:

The Extreme Networks 10302 LR SFP+ Module provides a 10 Gb optical connection for long-range communication. Designed for single-mode fiber, it utilizes LC connectors and offers a maximum transmission distance of up to 10 kilometers. This module is fully compliant with the 10GBASE-LR standard, ensuring reliable performance over extended distances in high-speed networks.

This LR SFP+ module is ideal for networks that require high-speed connections over long distances, such as data centers, enterprise networks, and high-performance computing environments.

Key Features:

• Part Numbers: 10302, AA1403011-E6
• Connection Type: LC Connector
• Fiber Type: Single-mode fiber
• Maximum Distance: 10 kilometers
• Data Rate: 10 Gbps
• Standard Compliance: 10GBASE-LR (Long-Range)
• Hot-swappable: Supports hot-pluggable functionality for easy integration into active network equipment.

10GBASE-LR Module Specifications:

SFP+ Transceiver Installation:

Installing an SFP module is a simple but essential process for establishing an optical connection in your network. The SFP+ module is hot-swappable, meaning that in most cases, you do not need to power down the network device. However, for safety, some operators prefer to power off the device during installation.

Installation Steps:

1. Align the Module: Locate the SFP port on the network device. Ensure that the bail latch (the small lock or lever) on the SFP module is oriented correctly. This latch typically faces up or down, depending on the specific device design.
2. Insert the Module: Gently push the SFP+ module into the SFP port until you hear a click sound or feel that the module is securely locked into place. This ensures the module is properly seated.
3. Verify Seating: After inserting the module, make sure the gold connectors of the SFP+ module are fully inserted into the port, and the module is firmly fixed in place with no wobbling or loose connections.

By following these simple steps, you can ensure that the SFP+ module is installed correctly and ready for use in your network.
