Specifications
Brand Name :
FG Water Technologies
Model Number :
FG-UF-50
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
,T/T
Delivery Time :
15-30 working days
Packaging Details :
standard export packing
Model Code :
FG-UF-50
Nominal Capacity :
50 TPH (13,200 GPD)
UF Membrane Type :
PVDF Hollow Fiber
Nominal Pore Size :
0.02 μm
Operating Pressure :
0.1 - 0.4 MPa (1 - 4 bar)
Operating Temperature :
5 - 45°C (Customizable to 65°C)
Description

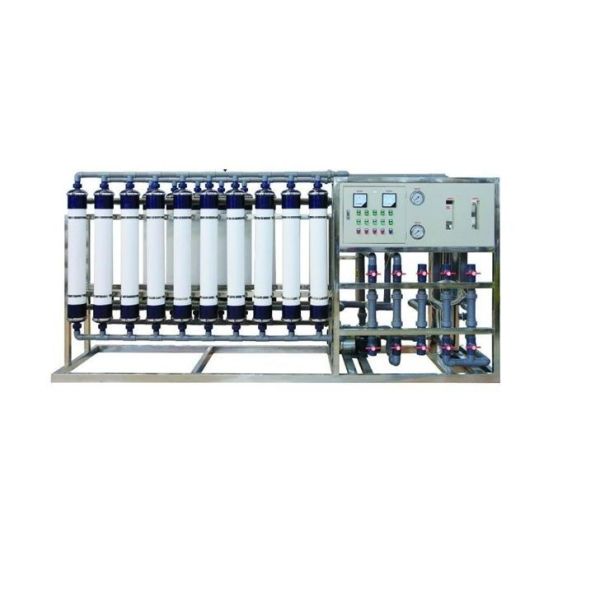

Skid-Mounted Ultrafiltration System

Model: FG-UF-50

50 TPH Capacity | SDI ≤3 Output | Fully Automated Operation
50 TPH High-performance, Skid-mounted Ultrafiltration System For Industrial RO Pretreatment

Product Overview

The FG-UF-50 is a high-performance, skid-mounted ultrafiltration system designed for industrial RO pretreatment and process water applications. With a capacity of 50 TPH (≈13,200 GPD), this system features PVDF hollow fiber membranes with 0.02μm nominal pore size, providing reliable removal of suspended solids, bacteria, and colloids.

Key Advantage: Pre-assembled and factory-tested for rapid deployment, reducing installation time by 60% compared to conventional systems.

Technical Specifications

Parameter Specification
Model Code FG-UF-50
Nominal Capacity 50 TPH (13,200 GPD)
UF Membrane Type PVDF Hollow Fiber
Nominal Pore Size 0.02 μm
Operating Pressure 0.1 - 0.4 MPa (1 - 4 bar)
Operating Temperature 5 - 45°C (Customizable to 65°C)
SDI Output ≤3 (Typical ≤2.5)
Turbidity Removal >99.9% (Output <0.1 NTU)
System Recovery 90 - 95%
Control System PLC with HMI, Auto Backwash, CIP System
Power Supply 380V/3Phase/50Hz (Customizable)
Dimensions (L×W×H) 3000 × 1500 × 2000 mm
Skid Material 304 Stainless Steel (316L Optional)
Warranty 3 Years on Membrane, 2 Years on System

50 TPH High-performance, Skid-mounted Ultrafiltration System For Industrial RO Pretreatment

Application Scenarios

The FG-UF-50 is engineered for diverse industrial applications requiring reliable pretreatment and water purification:

RO Pretreatment

Protects RO membranes from fouling by consistently providing feed water with SDI <3. Ideal for seawater desalination and industrial RO systems.

Typical Industries: Power plants, Electronics manufacturing, Food & Beverage

Industrial Process Water

Provides high-quality process water for manufacturing operations. Removes suspended solids, bacteria, and colloids to protect downstream equipment.

Typical Industries: Chemical processing, Metal finishing, Textile manufacturing

Wastewater Reuse

Enables water recycling by treating secondary effluent for reuse applications. Reduces freshwater consumption and discharge costs.

Typical Industries: Industrial parks, Mining operations, Paper mills

Why Choose FG-UF-50?

Our ultrafiltration systems deliver unmatched value through intelligent engineering and customer-focused design:

⚙️

Proven Reliability

Over 50 units deployed globally with 99.2% operational uptime. Backed by 3-year membrane warranty.


Fast Deployment

Factory assembled and tested. Ready for operation within 2 weeks of delivery. Reduces installation costs by 40%.


Lower TCO

30% lower total cost of ownership compared to European brands. Energy-efficient design reduces operating costs.


Customizable

Adaptable to specific water conditions and space constraints. Optional features: 65°C high-temp version, NSF-certified components.

Customer Testimonials

See what our clients say about the FG-UF-50 system:

"We installed the FG-UF-50 as pretreatment for our seawater RO system in Saudi Arabia. The system has been running flawlessly for 18 months, maintaining SDI consistently below 2.5. The 65°C high-temperature option was crucial for our desert location."
Ahmed Al-Mansoori
Water Treatment Manager, Arabian Desalination Co.
"As a food processing plant in Vietnam, water quality is critical. The FG-UF-50 system reduced our RO membrane cleaning frequency from monthly to quarterly, saving us approximately $15,000 annually in chemical and labor costs."
Nguyen Thi Lan
Production Director, Vietnam Dairy Products JSC
"We needed a reliable UF system for our electronics manufacturing facility in Malaysia. FG Water's solution was not only 25% more cost-effective than European alternatives but also delivered better technical support and faster delivery."
Dr. Chen Wei Lim
Facilities Engineering Manager, Semiconductor Manufacturing International

Ready to Optimize Your Water Treatment?

Contact our technical team for a customized solution tailored to your specific water quality and operational requirements.
