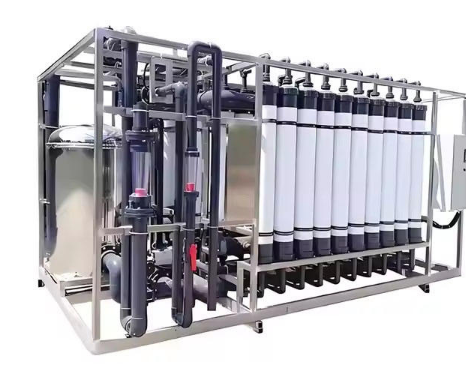

20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH UF System Specially Designed for High-Temperature Applications
Specifications
Brand Name :
FG Water Technologies
Model Number :
FG-UF-65C(High Temperature Version)
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
,T/T
Delivery Time :
15-30 working days
Packaging Details :
standard export packing
Operating Temperature Range :
5 - 65°C (Specialized High-Temp Design)
Maximum Ambient Temperature :
Up to 55°C (Desert Environment Rated)
Capacity Range :
20 - 50 TPH (5,280 - 13,200 GPD)
Cooling Requirement Before UF :
Not required up to 65°C
Membrane Lifetime at High Temp :
Normal lifespan maintained
SDI Stability at >50°C :
Maintains ≤3
Maximum Operating Temperature :
65°C
Description

20-50 TPH UF System Specially Designed for High-Temperature Applications

Model: FG-UF-65C
65°C Operating Temperature | Desert Environment Certified

20-50 TPH Capacity | SDI ≤3 Output | Specially Designed for High-Temperature Applications


20-50 TPH UF System Specially Designed for High-Temperature Applications

Product Overview

The FG-UF-65C is a specialized high-temperature ultrafiltration system engineered for extreme environments where conventional UF systems fail. With an operating temperature range of 5-65°C, this system is specifically designed for desert climates, high-temperature industrial processes, and challenging applications where feed water temperatures exceed 45°C.

Key Innovation: Our proprietary PVDF membrane formulation and enhanced skid design maintain optimal performance at temperatures up to 65°C - a capability not offered by standard UF systems that typically max out at 45°C.

Technical Specifications

ParameterSpecification
Model CodeFG-UF-65C (High Temperature Version)
Operating Temperature Range5 - 65°C (Specialized High-Temp Design)
Capacity Range20 - 50 TPH (5,280 - 13,200 GPD)
UF Membrane TypeHigh-Temp PVDF Hollow Fiber
Nominal Pore Size0.02 - 0.03 μm
Operating Pressure0.1 - 0.5 MPa (1 - 5 bar)
SDI Output≤3 (Maintains ≤2.5 at 65°C)
Turbidity Removal>99.9% (Output <0.1 NTU)
System Recovery88 - 93% (High-temp optimized)
Maximum Ambient TemperatureUp to 55°C (Desert Environment Rated)
Control SystemPLC with HMI, High-Temp Auto Backwash, Enhanced CIP System
Power Supply380V/3Phase/50Hz (440V/60Hz Optional)
Skid Material316L Stainless Steel with Heat-Resistant Coating
InsulationHigh-Temp Insulation Jacket (Optional)
Cooling SystemIntegrated Heat Exchanger (For >60°C applications)
Warranty3 Years on High-Temp Membrane, 2 Years on System

Application Scenarios

The FG-UF-65C is specifically engineered for applications where high temperatures pose significant challenges to conventional water treatment systems:
