10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations
Specifications
Brand Name :
FG Water Technologies
Model Number :
FG-UF-ECO (Energy Efficient System)
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
,T/T
Delivery Time :
15-30 working days
Packaging Details :
standard export packing
Product Model :
FG-UF-ECO (Energy Efficient System)
Nominal Capacity :
10-40 TPH
UF Membrane Type :
Low-Pressure PVDF Hollow Fiber
Energy Consumption :
0.25 - 0.35 kWh/m³ (30% less than standard)
System Recovery :
92 - 96%
Skid Material :
304 Stainless Steel with Thermal Insulation
Description

10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations

Model: FG-UF-ECO

10-40 TPH Capacity | 30% Energy Saving | Designed for Sustainable Operations


Product Overview

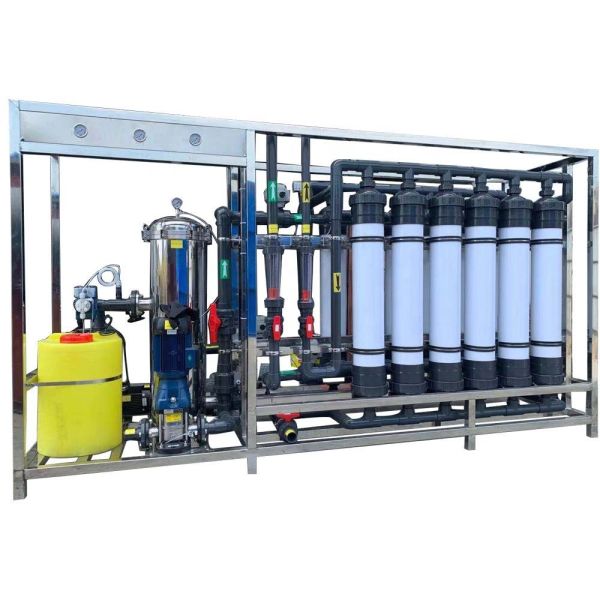

The FG-UF-ECO is a groundbreaking energy-efficient ultrafiltration system engineered specifically for applications where operational costs and sustainability are paramount. With an intelligent design that reduces energy consumption by 30% compared to conventional UF systems, this model delivers exceptional performance while minimizing environmental impact and operational expenses.

Featuring advanced low-pressure membranes, optimized pump systems, and intelligent control algorithms, the FG-UF-ECO maintains SDI output consistently below 3 while consuming significantly less power. This makes it ideal for continuous operations in energy-sensitive environments.

10-40 TPH UF System 30% Energy Saving Designed For Sustainable Operations

Key Energy-Saving Features:

• Intelligent variable frequency drive (VFD) pumps adjust energy use based on actual demand

• Low-pressure PVDF membranes (0.8-1.2 bar operating pressure) reduce pumping requirements

• Heat recovery system captures thermal energy from backwash cycles

• Sleep mode activation during low-demand periods

• Solar-ready power integration for hybrid energy operation


Technical Specifications

Parameter Specification
Model Code FG-UF-ECO
Nominal Capacity Range 10-40 TPH (2,640 - 10,560 GPD)
UF Membrane Type Low-Pressure PVDF Hollow Fiber
Nominal Pore Size 0.03 μm
Operating Pressure 0.08 - 0.3 MPa (0.8 - 3 bar)
Operating Temperature 5 - 40°C
SDI Output ≤3 (Typically 2.0-2.5)
Turbidity Removal >99.5% (Output <0.2 NTU)
Energy Consumption 0.25 - 0.35 kWh/m³ (30% less than standard)
System Recovery 92 - 96%
Control System PLC with Energy Optimization Algorithm, HMI Touchscreen
Power Supply 220V/380V 3-Phase, Solar-Ready Connection
Pump Type High-Efficiency VFD Pumps with Sleep Mode
Noise Level <65 dB(A) at 1 meter distance
Dimensions (Standard 20 TPH) 2500 × 1200 × 1800 mm
Skid Material 304 Stainless Steel with Thermal Insulation
Energy Star Rating Equivalent EE-1 (Highest Efficiency Grade)


Application Scenarios

The FG-UF-ECO is specifically designed for facilities where energy efficiency, operational cost reduction, and environmental sustainability are critical considerations:


Data Centers

Provides reliable water treatment for cooling systems while minimizing energy consumption that directly impacts PUE (Power Usage Effectiveness) metrics.



  • Singapore Data Center: Reduced water treatment energy consumption by 32%, contributing to LEED Platinum certification
  • 24/7 operation with <1% downtime over 3 years
  • Integration with existing Building Management System (BMS)


Hospitals & Healthcare

Ensures water quality for medical equipment, dialysis, and sterilization while operating quietly and efficiently in sensitive environments.


  • Hong Kong Hospital: Installed in basement facility with 35% energy saving versus previous system
  • Silent operation critical for patient recovery areas
  • Reliable water quality for critical medical applications


Commercial Buildings

Ideal for shopping malls, hotels, and office towers where water treatment supports HVAC systems, restaurants, and amenities.


  • Dubai Shopping Center: 28% reduction in overall water treatment energy costs
  • Space-efficient design for mechanical rooms
  • Low maintenance requirements ideal for property management

Why Choose FG-UF-ECO?

The FG-UF-ECO represents the future of sustainable water treatment technology, combining German engineering precision with intelligent energy management:
