10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment
Specifications
Brand Name :
FG Water Technologies
Model Number :
FG-UF-CON
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
,T/T
Delivery Time :
15-30 working days
Packaging Details :
standard export packing
Model :
FG-UF-CON
Nominal Capacity Range :
10-30 TPH
Container Standard Size :
20ft or 40ft Container
Operating Pressure :
0.1-0.4 MPa
System Recovery :
90-95%
Power Supply :
380V/3Phase/50Hz or Generator
Description

10-30 TPH Containerized Ultrafiltration System Plug-and-Play Design For Rapid Deployment Solution

Model: FG-UF-CON

10-30 TPH Capacity | Plug-and-Play Design | Rapid Deployment Solution


Product Overview

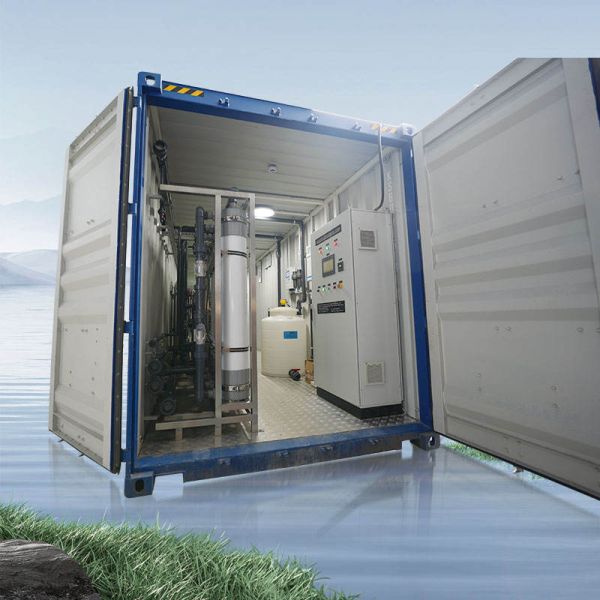

The FG-UF-CON is a fully integrated, containerized ultrafiltration system designed for rapid deployment in remote, temporary, or emergency water treatment applications. Housed within standard 20ft or 40ft shipping containers, this system provides complete water treatment capabilities with minimal installation requirements.

Engineered for quick setup and operation, the FG-UF-CON arrives pre-assembled, pre-wired, and pre-tested at our factory, ready for immediate operation upon delivery to your site. Simply connect to power and water sources, and begin producing high-quality treated water within hours.

10-30 TPH Containerized Ultrafiltration System with Plug-and-Play Design for Rapid Deployment Water Treatment

Key Advantage: Rapid Deployment

The FG-UF-CON reduces installation time by up to 80% compared to conventional skid-mounted systems. With its plug-and-play design, you can have clean water flowing within 24-48 hours of delivery, making it ideal for emergency response, remote operations, and temporary water supply needs.


Technical Specifications

Capacity & Performance

Model Code: FG-UF-CON
Capacity Range: 10-30 TPH
GPD Equivalent: 52,800-158,400 GPD
UF Membrane Type: PVDF Hollow Fiber
Nominal Pore Size: 0.02-0.04 μm
SDI Output: ≤3 (Typical ≤2.5)

Container Specifications

Standard Size: 20ft or 40ft Container
Construction: Weatherproof ISO Container
Insulation: Thermal & Acoustic
Internal Finish: Epoxy Coated Floor & Walls
External Finish: Marine-grade Paint
Door Configuration: Double Doors + Side Access

Operational Parameters

Operating Pressure: 0.1-0.4 MPa
Operating Temperature: 5-45°C (Customizable)
System Recovery: 90-95%
Power Supply: 380V/3Phase/50Hz or Generator
Control System: PLC with HMI & Remote Monitoring
Deployment Time: 24-48 hours

Application Scenarios

The FG-UF-CON is engineered for diverse applications requiring rapid deployment, mobility, and reliable water treatment in challenging environments:

Emergency Water Supply

Rapid deployment for disaster relief, refugee camps, and emergency situations where municipal water infrastructure is compromised or unavailable.


Typical Use Cases:
  • Natural disaster response (floods, earthquakes)
  • Refugee camp water supply
  • Military field operations
  • Temporary settlement water treatment

Remote Mining Operations

Provides potable and process water for mining camps and remote extraction sites where water infrastructure is non-existent or limited.


Typical Use Cases:
  • Mining camp drinking water
  • Mineral processing water
  • Dust suppression water treatment
  • Exploration site water supply


Construction & Infrastructure Projects

Temporary water treatment for large construction sites, infrastructure projects, and remote development areas during construction phases.

Typical Use Cases:
  • Highway/railway construction camps
  • Remote infrastructure projects
  • Oil & gas pipeline construction
  • Tunnel/bridge construction sites


Disaster Recovery & Temporary Replacement

Interim water treatment solutions during plant maintenance, system upgrades, or when existing water infrastructure is damaged or offline.


Typical Use Cases:
  • Water plant maintenance bypass
  • Infrastructure failure replacement
  • Seasonal demand supplement
  • Emergency backup systems


Why Choose FG-UF-CON?

Our containerized ultrafiltration systems deliver unmatched mobility, rapid deployment, and reliable performance in the most challenging environments:


Rapid Deployment

Operational within 24-48 hours of delivery. Pre-assembled and factory-tested for immediate use upon arrival at your site.


Complete Mobility

Standard shipping container design allows for easy transport by truck, rail, or ship to any location worldwide.


All-Weather Protection

Weatherproof container provides protection from environmental elements, vandalism, and unauthorized access.


Plug-and-Play Operation

Minimal installation required - just connect to power and water sources. All internal connections are pre-completed.



Flexible Configuration

Customizable for various feed water sources and output requirements. Options include generator power, solar panels, and remote monitoring.



Cost-Effective Solution

Eliminates need for permanent infrastructure. Lower total cost compared to building temporary water treatment facilities.


Container Configuration Options

Choose the configuration that best fits your project requirements and site conditions:


20ft Standard Container

Compact solution for 10-15 TPH capacity. Ideal for space-constrained sites and smaller operations.


40ft Standard Container

Higher capacity 20-30 TPH system with additional space for auxiliary equipment and storage.


40ft High-Cube Container

Additional vertical space for easier maintenance access and more complex system layouts.


Custom Configuration

Tailored solutions with specific features like climate control, security systems, or expanded capacity.


Need Rapid Water Treatment Deployment?

Our containerized UF systems can be on-site and operational within days. Contact us to discuss your project requirements and receive a customized solution with delivery timeline.

Request Technical Consultation Cell/whatsapp: +86-13646187144

Or visit our website: www.fgwater.com
