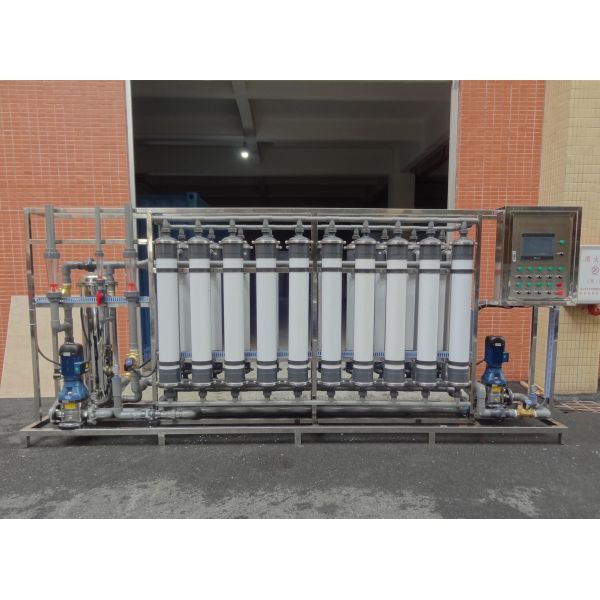

20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
Specifications
Brand Name :
FG Water Technologies
Model Number :
FG-UF-20
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
,T/T
Delivery Time :
15-30 working days
Packaging Details :
standard export packing
Model :
FG-UF-20
System Nominal Capacity :
20 TPH (5,280 GPD)
Membrane Type :
PVDF Hollow Fiber,Outside-In Configuration
Nominal Pore Size :
0.02 μm
Operating Pressure :
0.1 - 0.3 MPa (1 - 3 bar)
Operating Temperature :
5 - 45°C (Customizable to 65°C)
SDI Output :
≤3 (Typically 2.0-2.5)
Turbidity Removal :
>99.5% (Output <0.1 NTU from feed up to 50 NTU)
Description

20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications

Model: FG-UF-20
Most Popular

20 TPH Capacity | Compact Design | Ideal for Medium Industrial Applications

20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications

Product Overview

The FG-UF-20 is a compact, high-efficiency ultrafiltration system specifically engineered for medium-scale industrial applications. With a capacity of 20 TPH (5,280 GPD), this skid-mounted system delivers exceptional water quality while occupying minimal floor space, making it the ideal choice for facilities with space constraints.

Perfect Balance: The FG-UF-20 offers the optimal combination of performance, footprint, and affordability for medium-sized industrial operations. It's our best-selling model for food processing plants, regional water treatment stations, and hospitality facilities.

Featuring PVDF hollow fiber membranes with 0.02μm nominal pore size, the system ensures reliable removal of suspended solids, bacteria, viruses, and colloids, providing consistently high-quality water for downstream processes or direct use.

Technical Specifications

Parameter Specification
Model Code FG-UF-20
Nominal Capacity 20 TPH (5,280 GPD)
UF Membrane Type PVDF Hollow Fiber, Outside-In Configuration
Membrane Area 280 m² (Standard Configuration)
Nominal Pore Size 0.02 μm
Operating Pressure 0.1 - 0.3 MPa (1 - 3 bar)
Operating Temperature 5 - 40°C (Extended range to 45°C optional)
SDI Output ≤3 (Typically 2.0-2.5)
Turbidity Removal >99.5% (Output <0.1 NTU from feed up to 50 NTU)
Bacteria Log Reduction >6 LRV (99.9999% removal)
System Recovery 92 - 95%
Control System PLC with 7-inch HMI Touch Screen, Auto Backwash, CIP System
Backwash Frequency 30-60 minutes (Adjustable)
Power Supply 380V/3Phase/50Hz (220V/60Hz optional)
Power Consumption 3.5 - 4.5 kW (Depending on feed conditions)
Dimensions (L×W×H) 2000 × 1200 × 1800 mm
Footprint Area 2.4 m² (Only 25.8 ft²)
Skid Material 304 Stainless Steel (316L Optional for corrosive environments)
Weight (Dry) Approx. 850 kg
Delivery Time Standard: 30-35 days, Express: 20 days (subject to order confirmation)
Warranty 3 Years on Membrane, 2 Years on System Components

Standard Features

  • Complete skid-mounted design, pre-assembled and factory tested
  • Automatic backwash with air scouring option
  • Chemical Enhanced Backwash (CEB) capability
  • Integrated Clean-In-Place (CIP) system
  • Pressure gauges and flow meters on all critical points
  • Low-pressure protection and automatic shutdown
  • Modbus communication protocol for integration with plant SCADA
  • Stainless steel protective cover (optional)
  • Local and remote operation modes
  • Data logging for 1 year of operation parameters

Application Scenarios

The FG-UF-20 is specifically designed for medium-scale industrial and commercial applications where space efficiency, reliability, and cost-effectiveness are paramount:

Food & Beverage Processing

Provides high-quality process water for beverage production, ingredient mixing, and cleaning operations. Removes microorganisms and particulates that could affect product quality and shelf life.

Typical Applications:

  • Bottled water and beverage plants
  • Dairy processing facilities
  • Food ingredient manufacturing
  • Breweries and wineries

Regional Water Treatment Stations

Ideal for small communities, industrial parks, or remote facilities requiring independent water treatment. Compact design allows for installation in limited spaces while serving populations of 500-2,000 people.

Typical Applications:

  • Small community water supply
  • Industrial park central water treatment
  • Construction site temporary water supply
  • Island and remote area water systems

Hospitality & Tourism Facilities

Ensures safe, high-quality water for guest use while minimizing chemical treatment requirements. Quiet operation and compact footprint make it suitable for installation near guest areas.

Typical Applications:

  • Resorts and hotels (especially in remote locations)
  • Tourist attraction water supply
  • Spa and wellness centers
  • Golf course irrigation and clubhouse supply

Typical Performance Data

Feed Water Conditions: Surface water with turbidity 5-30 NTU, SDI 4-6

Product Water Quality: Turbidity <0.1 NTU, SDI <3, Bacteria removal >99.999%

Chemical Consumption: NaClO for CEB: 5-10 mg/L, Citric acid for CIP: 0.1-0.3%

Why Choose FG-UF-20?

The FG-UF-20 combines German engineering principles with Chinese manufacturing efficiency to deliver exceptional value for medium-scale water treatment applications:
