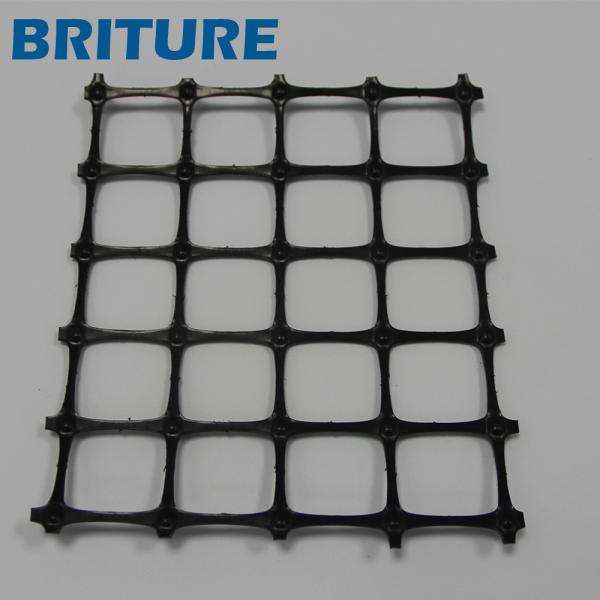

PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
Specifications
Brand Name :
Briture
Model Number :
PP Biaxial Geogrid
Certification :
CE、ISO
Place of Origin :
China
MOQ :
The MOQ of PP Biaxial Geogrid is 100rolls.
Price :
The price pp biaxial geogrid is USD 0.4-1.4/m2 FOB Shanghai port
Payment Terms :
The payment of PP Biaxial Geogrid is L/C, T/T
Supply Ability :
2500MT/year
Delivery Time :
18-30 work days
Packaging Details :
3.95mX 50m in a roll
Product Name :
PP Biaxial Geogrid 2020
PP Biaxial Geogrid Width :
3.95m
PP Biaxial Geogrid Length :
50-100m
PP Biaxial Geogrid Color :
Black
PP Biaxial Geogrid Application :
Slop protecting projects
Description

PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects

PP Biaxial Geogrid Introduction:

The raw material of pp biaxial geogrid is PP. It is produced through extruding, punching, heating, longitudinal stretching, transverse stretching.

PP Biaxial Geogrid Performance:

It have high tensile strength at both longitudinal & transverse dire.

PP Biaxial Geogrid Application:

1.The PP biaxial geogrid can be used for soft foundation reinforcing for highway and railway.
2.The PP biaxial geogrid can be used for slop protecting projects.
3.In addition, the PP biaxial geogrid can be used for landfill side.
PP Biaxial Geogrid Function:
1. It can improve the bearing capacity of foundation;
2. It can preventing cracking and subsiding;
3. It is convenient to construct, reducing cost and maintaining expense

PP Biaxial Geogrid Specification:

Index properties
Test Method
Units
MD Values
TD Values
Polymer - - pp -
Carbon Black Min ASTM D 4218 % 2 -
Tensile strength @2% Strain ASTM D 6637 KN/m 7 7
Tensile strength @5% Strain ASTM D 6637 KN/m 14 14
Ultimate tensile strength ASTM D 6637 KN/m 20 20
Strain @ Ultimate strength ASTM D 6637 % 13 13
Structural Integrity
Junction Efficiency GRI GG2 % 90 90
Overall Flexural Rigidity ASTM D 1388 mg-cm 1090,000 -
Aperture Stability COE Method mm-N/deg 707 -
Dimensions
Aperture Dimensions - mm 38 36
Minimum Rib Thickness ASTM D 1777 mm 1.3 1.0
Roll Width - m 3.95 -
Roll Length - m 50 -
Roll Weight - kg 50 -

PP Biaxial Geogrid Packing:

The roll is 3.95mx50m. And 41475M2(210 rolls) in a 40HQ.

PP Biaxial Geogrid Sample:

For small quantity of sample, we can provide you sample free of charge, but the freight will be on your account, pls understand.

Certification:

PP Biaxial Plastic Geogrid PPBG2020 For Slop Protecting Projects
