Specifications
Brand Name :
Briture
Model Number :
PPM
Certification :
CE
Place of Origin :
China
MOQ :
26860m2
Price :
USD1.4-USD2.0/m2 FOB Qingdao port
Supply Ability :
1X40`HC every week
Delivery Time :
about 10days
Packaging Details :
3.95x50m each roll
Type :
Geogrid with Geotextile
Width :
3.95 or 5.95m
Length :
50m
Application :
highway, railway,Slop protecting projects, landfill side
Raw material :
PP+PET
Description

Introduction:

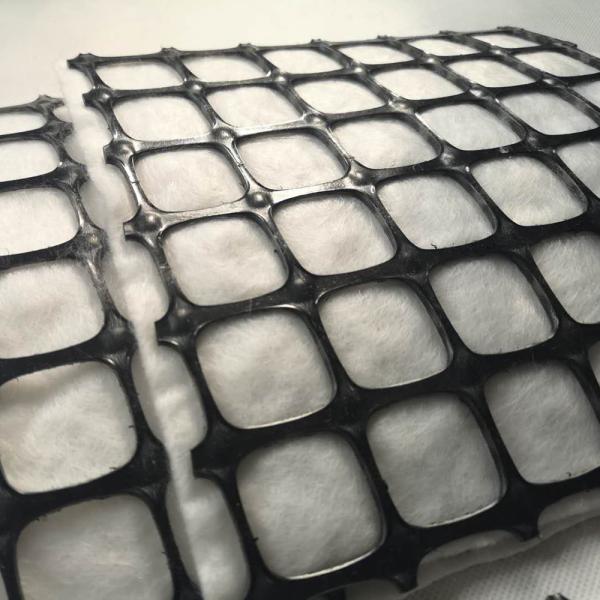

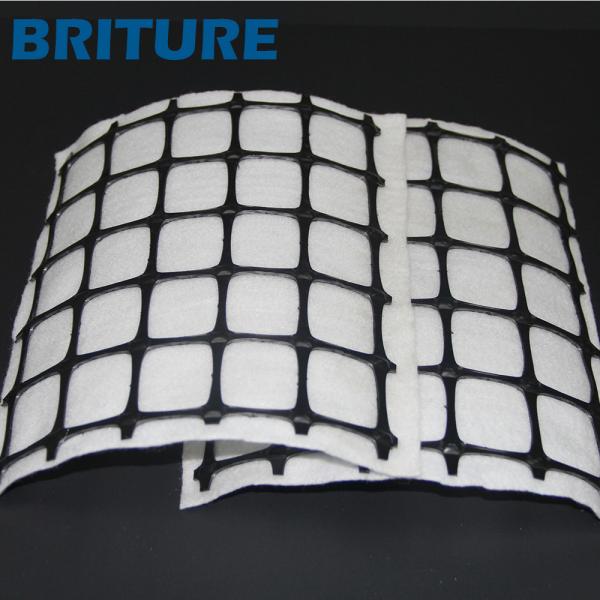

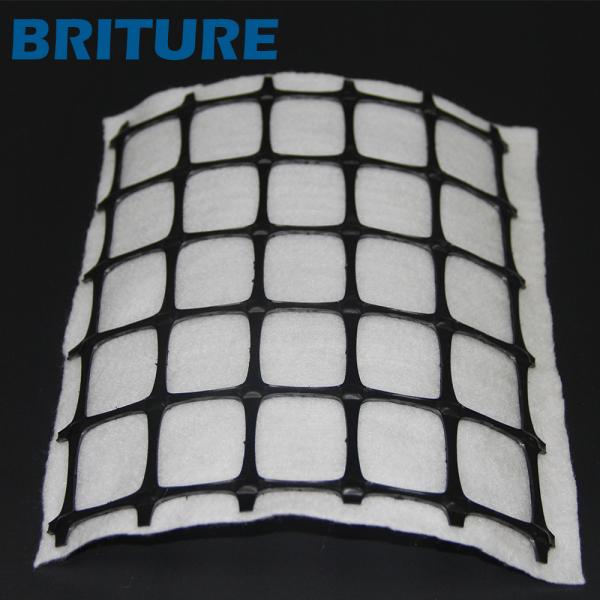

Briture Composite Geogrids PPM Serious are geocomposites especially designed for soil stabilisation and reinforcement applications. The Briture PPM Serious are manufactured by bonding a PP Biaxial Geogrid to a nonwoven Polyester Geotextile.

Application:

1. Base Reinforcement

2. Subgrade Stablilization

3. Slope Stabilization

4. Asphalt Reinforcement

Dimension (mm):

150gsm Geotextile polypropylene PP Biaxial Geogrid For Slope Stabilization 30-30kN/M

Production AL AT WLR WTR tLR tTR tJ
PPM20-150G 38 38 2.6 2.6 1.3 1.0 3.5
PPM30-150G 38 38 3.0 3.0 2.1 1.6 4.9
PPM40-150G 38 38 3.0 3.0 2.1 1.8 5.5

Specification of PPM20-150G

Index Properties Test Method Unit MD Values TD Values
Polymer PP
Min. Carbon Black ASTM D 4218 % 2 -
Tensile Strength @ 2% Strain ASTM D 6637 kN/m 7 7
Tensile Strength @ 5% Strain ASTM D 6637 kN/m 14 14
Ultimate Tensile Strength ASTM D 6637 kN/m 20 20
Geotextile Physical Properties
Polymer PET
Mass per Unit Area ASTM D 5261 g/m2 150 -
Ultimate Tensile Strength ASTM D 4595 kN/m 10.5 8.5
Tensile Elongation ASTM D 4595 % 50 -
CBR Burst Strength ASTM D 6241 N 2500 -
Apparent Opening Size ASTM D 4751 mm 0.12 -
Dimensions
Roll Width - m 3.95
Roll Length - m 50

Specification of PPM30-150G

Index Properties Test Method Unit MD Values TD Values
Polymer PP
Min. Carbon Black ASTM D 4218 % 2 -
Tensile Strength @ 2% Strain ASTM D 6637 kN/m 10.5 10.5
Tensile Strength @ 5% Strain ASTM D 6637 kN/m 21 21
Ultimate Tensile Strength ASTM D 6637 kN/m 30 30
Geotextile Physical Properties
Polymer PET
Mass per Unit Area ASTM D 5261 g/m2 150 -
Ultimate Tensile Strength ASTM D 4595 kN/m 10.5 8.5
Tensile Elongation ASTM D 4595 % 50 -
CBR Puncture Strength ASTM D 6241 N 2500 -
Apparent Opening Size ASTM D 4751 mm 0.12 -
Dimensions
Roll Width - m 3.95 -
Roll Length - m 50 -

Specification of PPM40-150G

Index Properties Test Method Unit MD Values TD Values
Polymer PP
Min. Carbon Black ASTM D 4218 % 2 -
Tensile Strength @ 2% Strain ASTM D 6637 kN/m 14 14
Tensile Strength @ 5% Strain ASTM D 6637 kN/m 28 28
Ultimate Tensile Strength ASTM D 6637 kN/m 40 40
Geotextile Physical Properties
Polymer PET
Mass per Unit Area ASTM D 5261 g/m2 150 -
Ultimate Tensile Strength ASTM D 4595 kN/m 10.5 8.5
Tensile Elongation ASTM D 4595 % 50 -
CBR Puncture Strength ASTM D 6241 N 2500 -
Apparent Opening Size ASTM D 4751 mm 0.12 -
Dimensions
Roll Width - m 3.95 -
Roll Length - m 50 -
