39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
Specifications
Brand Name :
Briture
Model Number :
PPBG30-30
Place of Origin :
Shandong
MOQ :
26860m2
Price :
USD0.68-0.73/m2 FOB Qingdao port
Payment Terms :
L/C, T/T
Supply Ability :
1X40`HC every week
Delivery Time :
about 10days
Packaging Details :
3.95x50m each roll
Material :
Polypropylene
Color :
Black
Width :
3.95 or 5.95m
Length :
50m
Application :
Road base reinforcement
Description

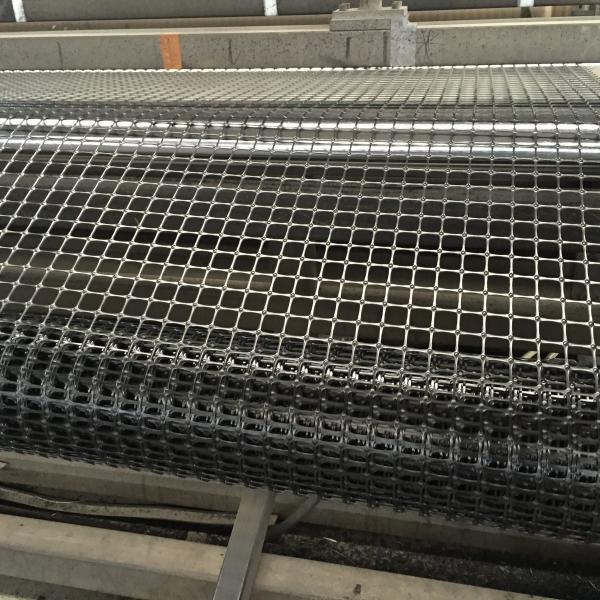

PP Biaxial Plastic Geogrid 30-30kN/m

Introduction:

PP Biaxial Plastic Geogrid is used PP as its raw material, produced through extruding, punching, heating, longitudinal stretching, transverse stretching.

Performance:

High tensile strength at both longitudinal & transverse direction

Application:

Soft foundation reinforcing for highway, railway,Slop protecting projects, landfill side

Specifications:

Index Properties Test Method Units MD Values TD Values
Polymer PP
Minimum Carbon Black ASTM D 4218 % 2
Tensile Strength @ 2% Strain ASTM D 6637 kN/m 10.5 10.5
Tensile Strength @ 5% Strain ASTM D 6637 kN/m 21 21
Ultimate Tensile Strength ASTM D 6637 kN/m 30 30
Strain @ Tensile Strength ASTM D 6637 % 13 13
Structural Integrity
Junction Efficiency GRI GG2 % 90 90
Overall Flexural Rigidity ASTM D 1388 mg-cm 3,930,000
Aperture Stability COE Method mm-N/deg 1432
Dimensions
Aperture Dimensions - mm 39 39
Min. Rib Thickness ASTM D 1777 mm 2.1 1.8
Roll Width - m 3.95
Roll Length - m 50
Roll Weight - kg 68

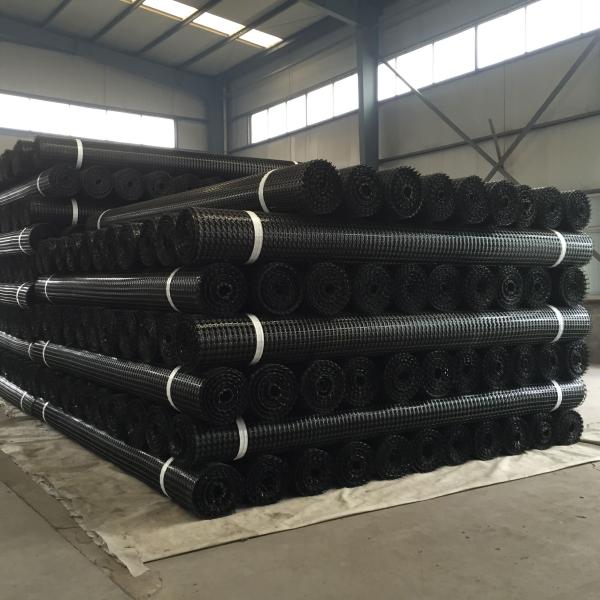

Packing: 3.95x50m each roll, 26860m2/1X40`HC

39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement

39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement39x39mm Polypropylene PP Biaxial Geogrid Glass For Road Base Reinforcement
