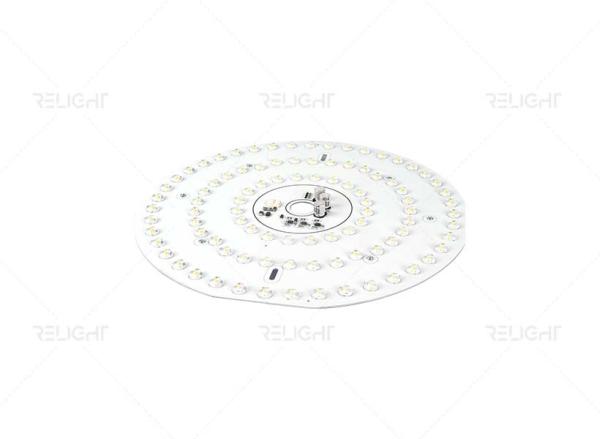

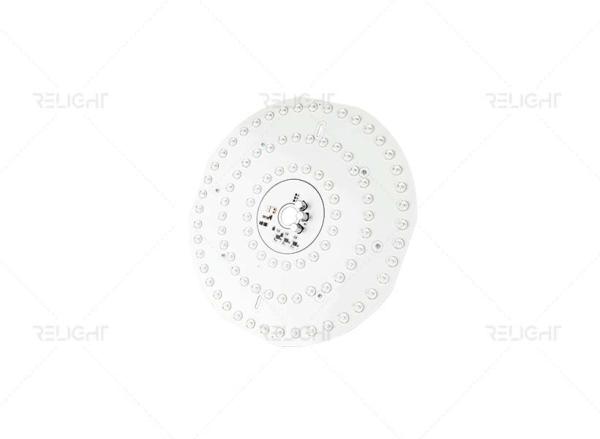

D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
Specifications
Brand Name :
RELIGHT
Model Number :
D315 Ceiling Lamp Module
Certification :
CE,ETL,UL
Place of Origin :
CHINA
MOQ :
100M
CRI :
90/80
Protection :
IP20
Input :
200-240Vac
Frequency :
50/60Hz
Beam Angle :
120 deg
Power :
AC
Various CCT available :
2700/3000/4000/5000/5700/6500K
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description
  • Connects directly to AC Power
  • Various CCT available: 2700/3000/3500/4000/5000/5700/6500K
  • CRI: 90/80
  • Macadam 5 steps color bin

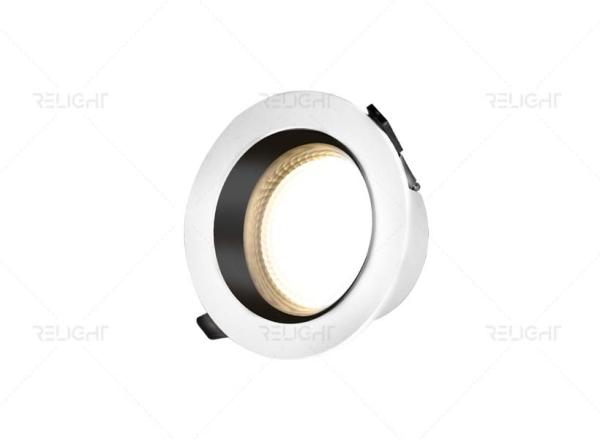

  • Solutions for Down light / Ceiling light
  • AC line voltage 230V input directly
  • Power factor higher than 0.9
  • TRIAC dimmable/Switch table white

D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module

D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module

Absolute maximum rating at 25℃

P/N
Size
Input
Power
PF
Flux
Efficiency
CCT
CRI
Dimming
mm
Vac
W
-
Lm
Lm/W
K
-
-
RL-HMD315A4702H024-827FF
Ø315
230
24
0.8
2880
120
2700
80
TRIAC
RL-HMD315A4702H024-830FF
Ø315
230
24
0.8
3000
125
3000
80
TRIAC
RL-HMD315A4702H024-840FF
Ø315
230
24
0.8
3120
130
4000
80
TRIAC
RL-HMD315A4702H024-850FF
Ø315
230
24
0.8
3120
130
5000
80
TRIAC
RL-HMD315A4702H024-865FF
Ø315
230
24
0.8
3120
130
6500
80
TRIAC

Optical-Electrical Characteristics at 25℃
Input 200-240Vac
Frequency 50/60Hz
Rated power Typical power(±10% tolerance)
PF >0.90
Protection IP20
Surge level 2.5KV
Hi-pot 1.5KVac
Storage temperature -30-85℃
Operation temperature -30-80℃(Ts ofled components)
Beam Angle 120 deg
Flicker index <5%
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
D315 Ceiling Lamp Module IP20 Protection AC LED Lights Module
Safety Information
1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
